Home  >  XY Stages, XYZ and Z Stages, Manual  >  Siskiyou   >  RLS-HL.500-XY

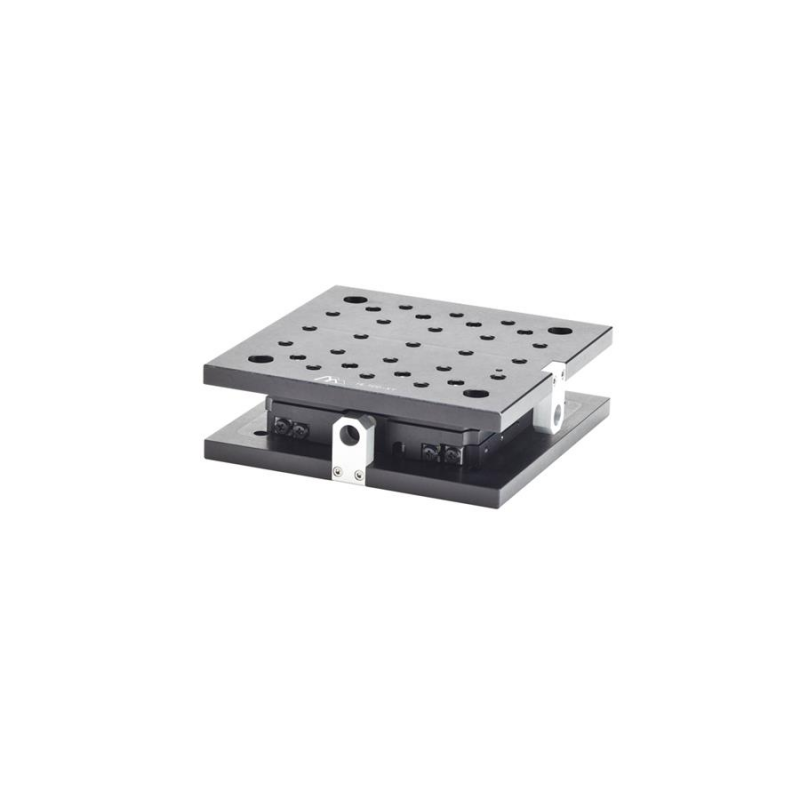

XY-Stage with 12mm travel range and 10µm incremental motion

  • Manual XY Stage, 12.5mm from Siskiyou

Request Quote
sku / item#: RLS-HL.500-XY
ships: Contact

Key Features
  • Travel Range: 12.5mm
  • Low profile design
  • Integrated XY axes
  • Non-influencing lock
  • High load crossed roller bearings

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-HL.500-XY
PRICE Request Price

Product Overview:

The crossed roller bearing design provides for high load travel in the X and Y axis, this multi-axis linear translation stage is offered by Siskiyou. Travel range is 12mm with incremental motion of 10µm or submicrons with the selection of a high thread count screw. Compact low profile design for integration into compact optical table or other manual motion applications. Up to 150 pound loads can be used with this linear translation stage from Siskiyou. Large mounting base area of 5.5 inches. Manual XY linear stage is designed and offered by Siskiyou.
