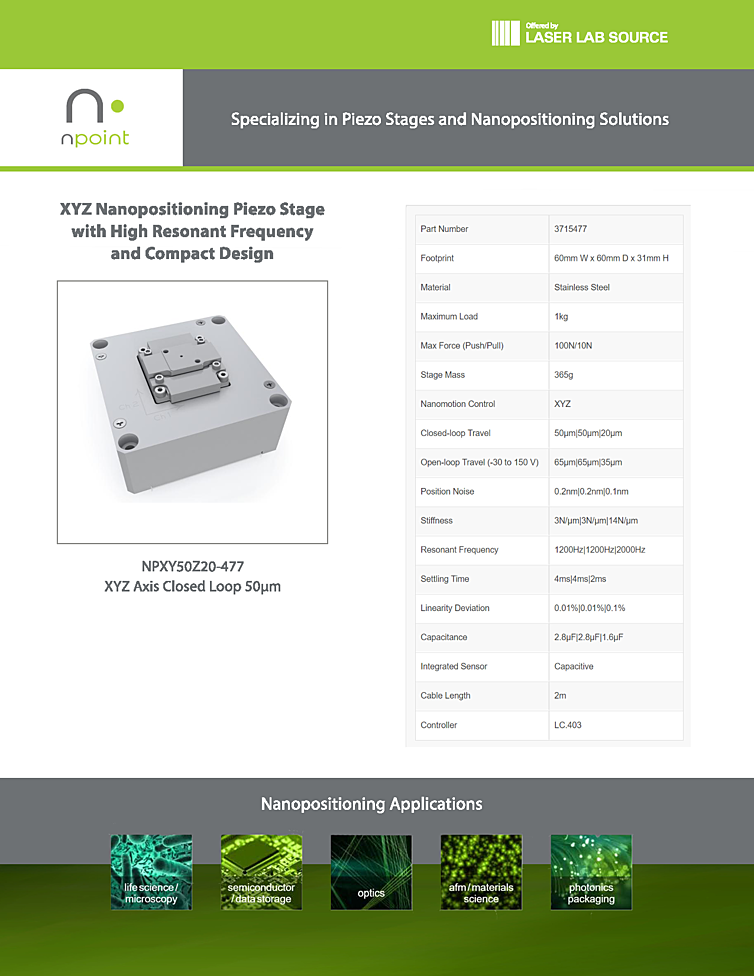

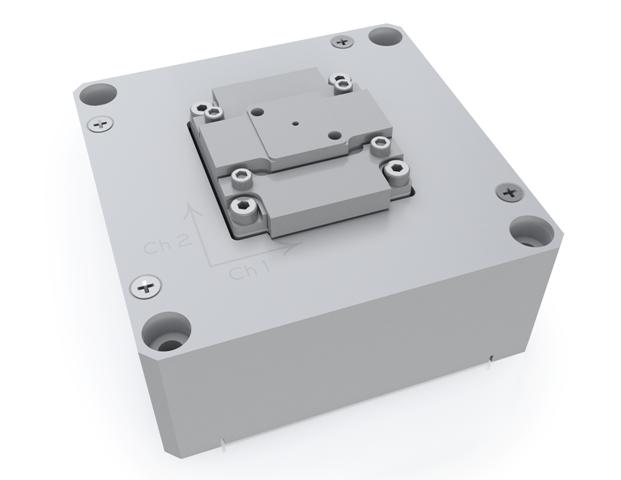

Piezo XYZ Stage; 50µm in XY axis and 20µm in Z Axis

  • 50 micron Piezo XYZ Stage from nPoint

Request Quote
sku / item#: RLS-NPXY50Z20-477
ships: Contact

Key Features
  • Closed-loop Travel: 50µm|50µm|20µm
  • Footprint: 60mm x 60mm x 31mm (Width x Depth x Height)
  • Closed Loop Operation; Integrated Capacitive Sensor
  • Material: Stainless Steel

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the product Engineer

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-NPXY50Z20-477
PRICE Request Price

Product Overview:

Closed Loop Piezo XYZ Stage with 50µm travel range in XY axis and up to 20µm in the Z Axis. For demanding applications including Atomic Force Microscopy (AFM) this XYZ stage provides exceptional scanning linearity, longer travel ranges, and measurement precision. In the settling time of this XYZ nanopositioner is 4 ms in the XY axis and 2 ms in the Z axis. Settling time is defined as when the stages reaches it set position and stays within 2% of the position. This fast speed is achieved by the integrated Capacitive sensor and careful attention to the design. High performance Piezo XYZ Stage is designed and manufactured by nPoint.
