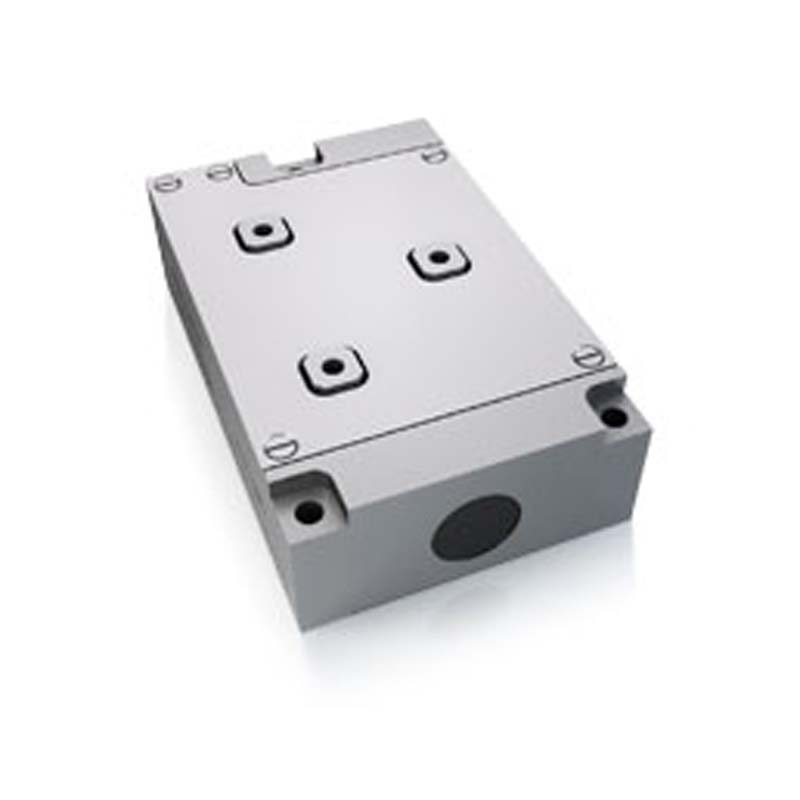

25µm Travel Range Piezo Stage; nPoint Model NPX25-105

  • 25 micron X-axis Piezo Stage from nPoint

Request Quote
sku / item#: RLS-NPX25-105
ships: Contact

Key Features
  • Compact Footprint: 62mm x 40mm x 18.5mm (Width x Depth x Height)
  • Travel Range: 25µm (Closed Loop)
  • Travel Range: 40µm (Open Loop)
  • Maximum Load: 1kg
  • Max Force: 100N/20N (Push/Pull)
  • Material: Aluminum

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the product Engineer

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

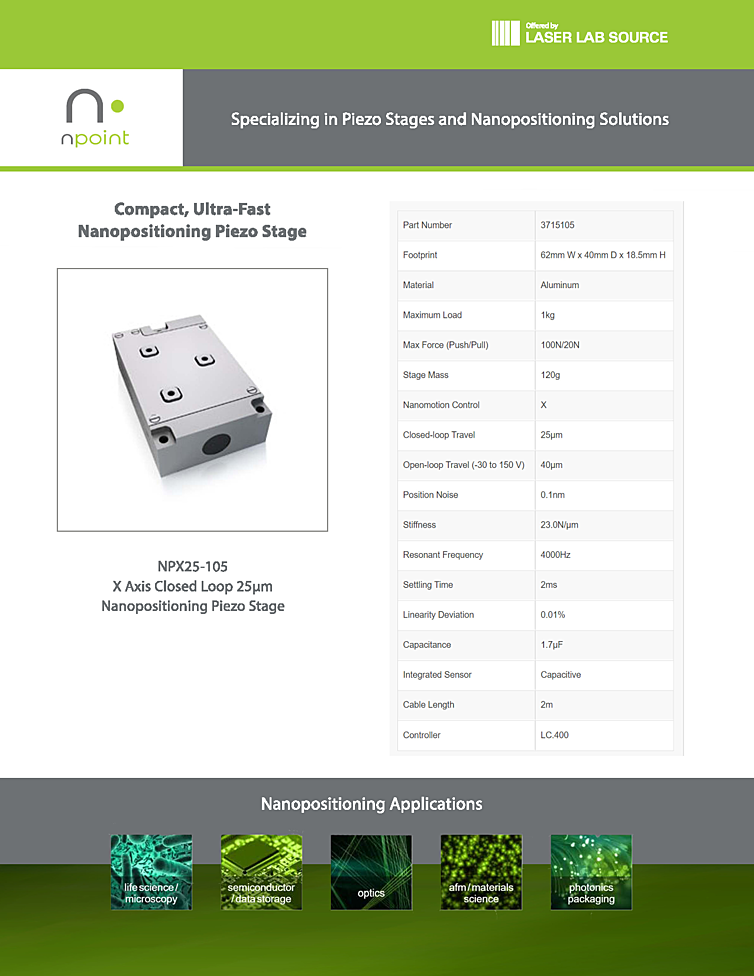

MODEL RLS-NPX25-105
PRICE Request Price

Product Overview:

Piezo stage with closed loop operation up to 25µm is designed and manufactured by nPoint. Applications for this nanopositioning stage include wafer inspection, mask alignment, and lithography. For closed loop operation the NPX25-105 features an integrated capacitive sensor. The piezo stage has a push force of 100N and pull force of 20N with loads up to 1 kg. The standard stage features all aluminum construction; please contact nPoint for other material options.
