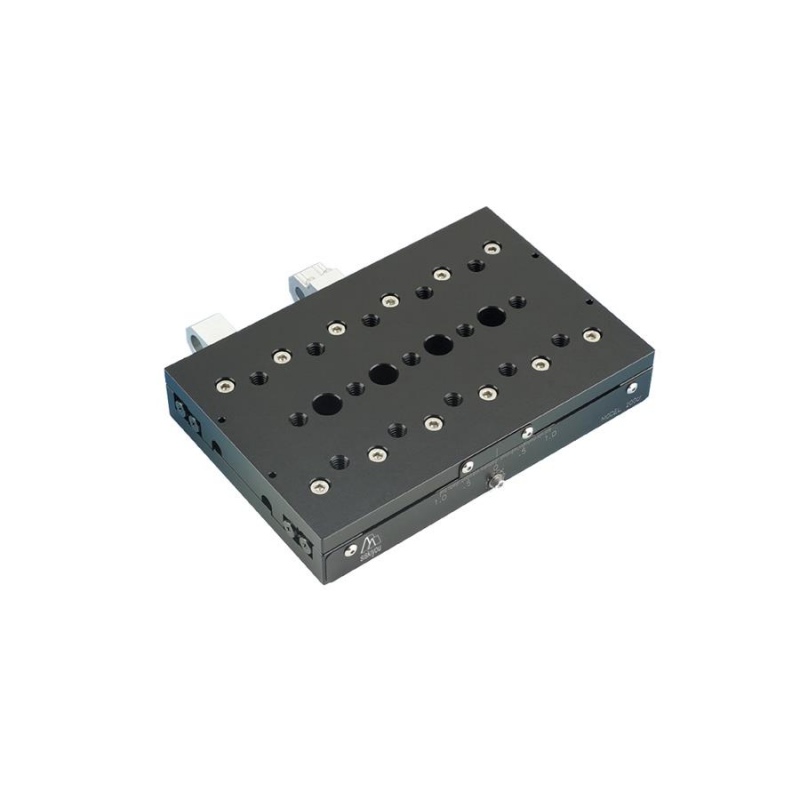

50 mm Travel Range Manual Linear Stage

  • 50mm Manual Linear Stage from Siskiyou

Request Quote
sku / item#: RLS-200cr
ships: Contact

Key Features
  • Travel Range: 50mm
  • Integrated scale / lock
  • Right and left-hand drive adjustable
  • Compatible with standard micrometers

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE Request Price

Product Overview:

Manual linear stage with 50 mm of travel range from Siskiyou. The side mounted adjustment screws come in 127 TPI to 20 TPI. At 127 TPI (turns-per-inch) has submicron resolution. There is an integrated scale and lock to provide repeatable and stable submircon motion. The tested and true precision crossed roller bearing stage offers exceptional smooth manual motion. The spring loaded linear stage also allows for stacking of the stages to create XY axis motion and the use of a standard mounting bracket can create an Z stage or XYZ manual linear stage. The stage can move up to 70 lbs loads when mounted in the horizontal axis and 10 lbs when mounted vertically. Standard imperial or metric versions are available and vacuum compatible versions are also available upon request. High performance manual linear stage from Siskiyou.
