Compact XY Stage with 3mm travel and 1µm resolution

  • Compact Manual XY Linear Stage from OWIS

Request Quote
sku / item#: RLS-OWIS-MKT30
ships: 1 Week

Key Features
  • Compact XY Linear Stage
  • Includes Fine Pitch Spindle, with 0.25mm Pitch
  • Deformation Resistant Aluminum with Black Anodized Finish
  • Owis Part Number: MKT 30-D10-RT40, on slide RT 40-20-R
  • Inquire about other MKT 30 options including End Plate or Pin Adapter Plate

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-OWIS-MKT30
PRICE Request Price

Product Overview:

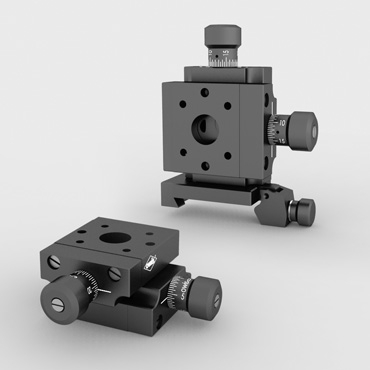

Compact XY stage with high load capacity for Owis. Travel range of the stage is 3mm with setting sensitivity of 1µm. The forced return of the slide allows for high load capacity even with a small stage. The XY stage is rated for 90 N load. The deformation resistance aluminium provides precise and stable motion over the whole range. Black anodized coating reduces stray laser reflections. XY stage can be easily installed on a rail systems or pin. The fine-thread spindle provides precise motion over the 3mm X and Y axis. Precision XY stage is manufactured and designed by Owis.
