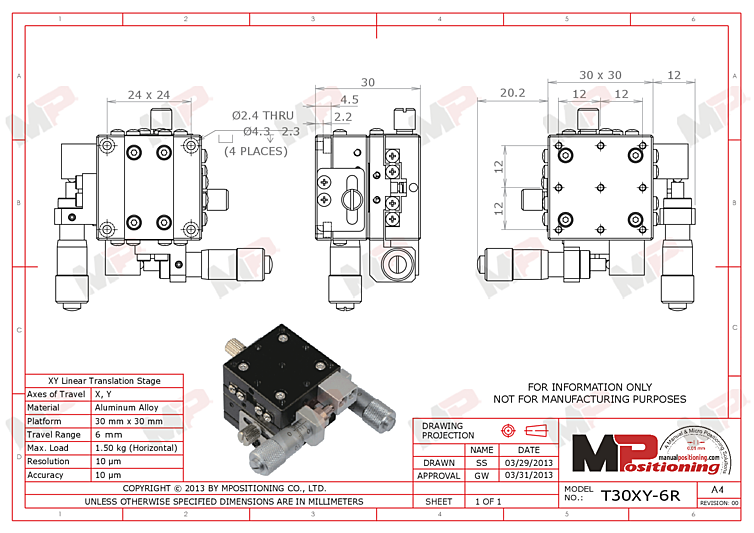

Miniature Manual XY Translation Stage, Precision 6mm Travel Range, Heavy-Duty Cross Roller Bearing Design

These miniature manual XY translation stages are based on a precision cross roller bearing design. They feature aluminum alloy construction with a black anodized finish. The anodized finish is designed for durability and for to minimize back reflections in laser positioning applications. These stages include a micrometer drive with 10 μm resolution. They are designed to handle loads up to 1.5 kg. The 30 mm by 30 mm base plate has standard M4 metric mounting holes. These linear positioners provide precision motion control with high stability across the travel range.



Key Features:

• 6mm Travel Range (X,Y)

• Heavy-Duty Cross Roller Bearing Design

• 10 μm Micrometer Drive, Right Hand Drive

• 30 mm x 30 mm Top Platform

• 9 x Threaded Holes on Top Platform -- M2 x 0.4 mm Pitch, 4 mm Depth
