Z Stage Piezo Phaser; 20μm Travel Range; 0.5nm Resolution; CoreMorrow P77

  • Z Stage with Aperture from COREMORROW

Request Quote
sku / item#: RLS-P77
ships: Contact

Key Features
  • Max travel range: 20μm
  • Max load: 5kg
  • Aperture: Ø106mm

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-P77
PRICE Request Price

Product Overview:

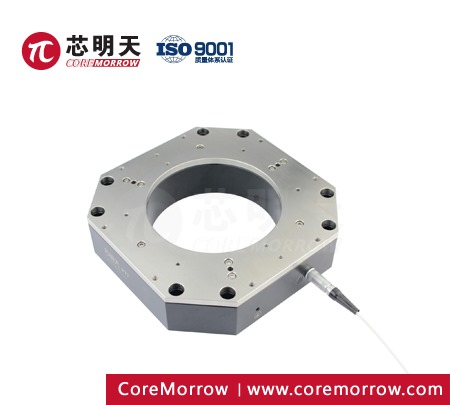

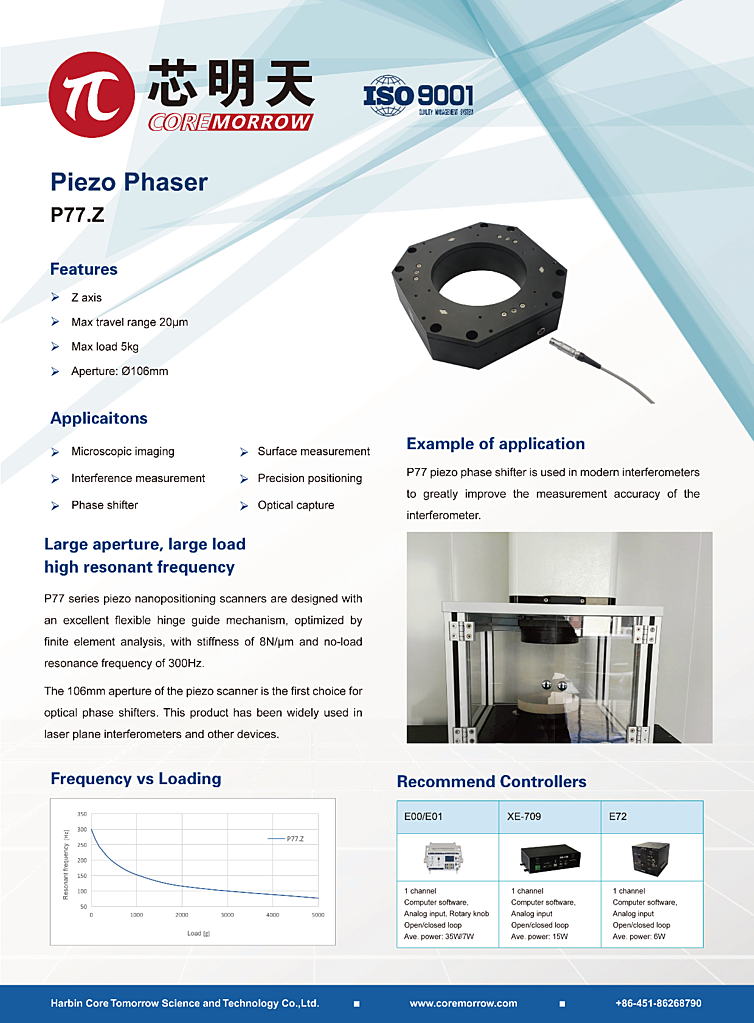

P77 piezo nanopositioning scanner is a Z-axis motion stage with drived by piezo actuators. The center of the piezo scanner is a 106mm large aperture. Z-axis displacement of 20μm can be realized . The guide mechanism has an ultra-high resolution, and the closed-loop version can achieve positioning accuracy of nanometer, which is the first choice for optical phase shifters.
