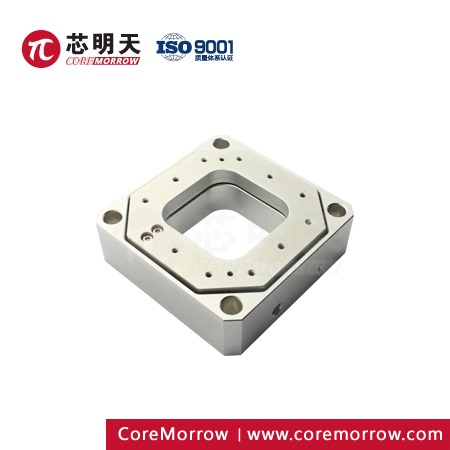

Piezo Nanoposition Stage 110μm Travel Tange CoreMorrow N12

Request Quote
sku / item#:

Key Features
  • Max travel range 110μm
  • Open/closed loop
  • Aperture: 45×45mm
  • Max load 0.7kg

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE Request Price

Product Overview:

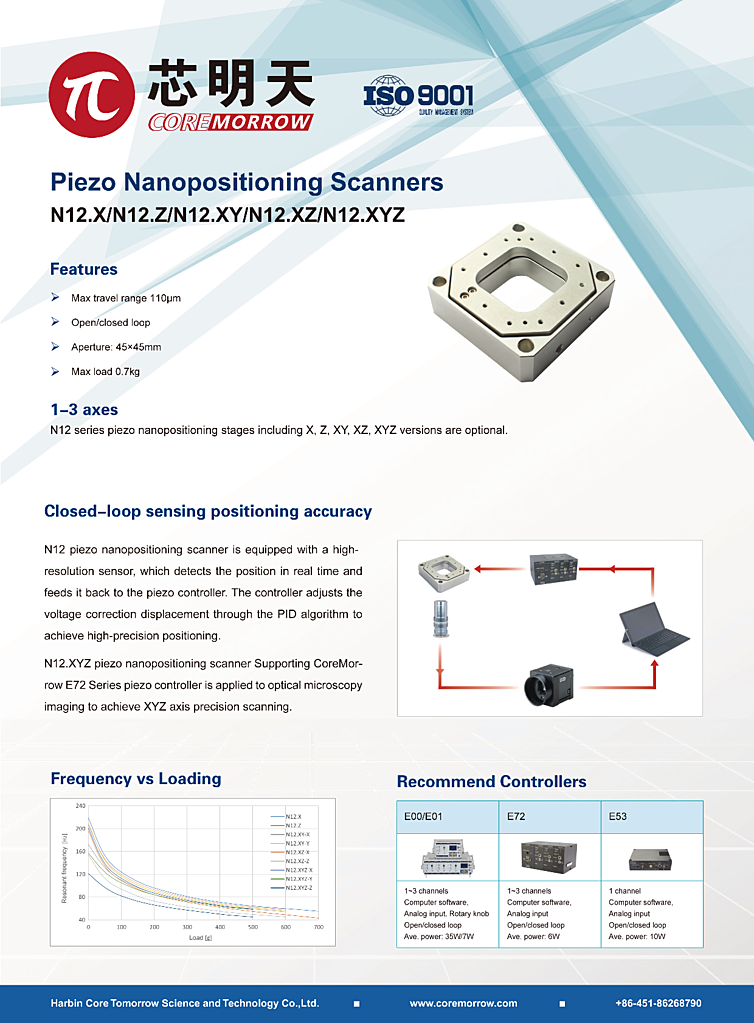

N12 piezo nanopositioning scanner is 1~3 dimensional parallel stage. The internal use of flexible hinge guiding mechanism without friction, using FEM simulation analysis optimization structure, with the features of high guidance accuracy, high stiffness, large load. Choose to configure high-performance sensors for closed loop feedback, to achieve the full stroke of 0.04% repeatability of positioning accuracy.
