CW Fiber Laser, 1080nm, 4.2kW; CORELIGHT™ Series Fiber Laser Engines

  • 9.4kW Fiber Laser from Lumentum

Request Quote   Ships: Contact | Model CORELIGHT

Key Features
  • Fiber Laser Engine with Output Power Up to 4200 Watts
  • Center wavelength: 1080nm
  • Compact design
  • Strong back-reflection immunity
  • Flexible modular approach

Customers Also Considered:

MODEL CORELIGHT
PRICE Request Price
OPTICAL OUTPUT POWER
  • ------ Model: CORELIGHT YLE3005-------------------------------------
  • Output Power: > 3.15 kW
  • Beam Parameter: < 1.5 mm mrad (50 µm fiber output)
  • Beam Parameter: < 3.5 mm mrad (100 µm fiber output)
  • ------ Model: CORELIGHT YLE4005-------------------------------------
  • Output Power: > 4.2 kW
  • Beam Parameter: < 1.5 mm mrad (50 µm fiber output)
  • Beam Parameter: < 3.5 mm mrad (100 µm fiber output)
GENERAL
  • Communication: Analog/Ethernet/RS232
  • Modulation frequency: >10 kHz
  • Modulation depth: > 98%
  • DC to optical efficiency: > 25%
  • Power monitor accuracy: 10%
Environmental
  • Operating air temp (non-condensing): 5 to 55°C
  • Non-operating air temp (noncondensing): −10 to 65°C
  • Shock (nonoperating, 3-axis): ±18 g each axis; 11 ms duration
  • Vibration (non-operating): 1 g rms vertical axis; random frequency, 1 hour duration
APPLICATIONS Macro-Material Processing
  • 2D, 3D metal cutting
  • Welding
  • Additive Manufacturing
  • Remote Cutting

Product Overview:

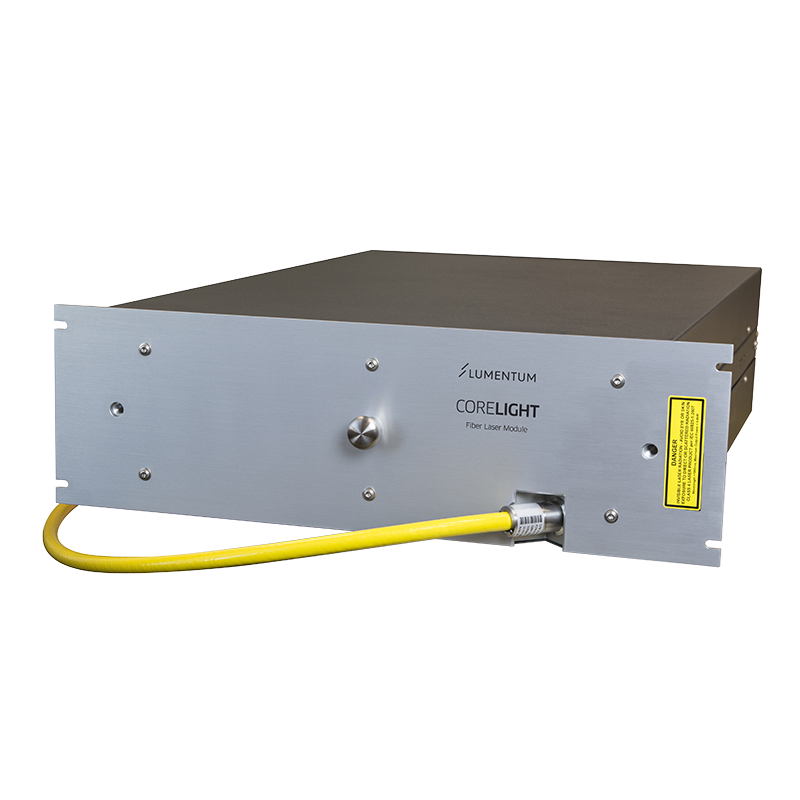

The CORELIGHT 1080nm High Power Fiber Laser Engine from Lumentum features a modular design with industry leading high output power up to 4.2 kW. These systems can be controlled remotely using Ethernet or RS-232 interfaces. they offer a modulation frequency up to 10kHz with a modulation depth of 98% at an output wavelength of 1080 nm. CORELIGHT Series engines enable exceptionally high-speed cutting, welding, material deposition, and many other OEM macromaterial processing applications. Ideal for processing steel, aluminum, copper, brass, and many other metals, CORELIGHT Series engines offer installation and operational flexibility to meet the most demanding requirements.
