700nm-1000nm Tunable Picosecond Laser

COHERENT Lasers Mira Model 900-P
700nm-1000nm Picosecond Laser

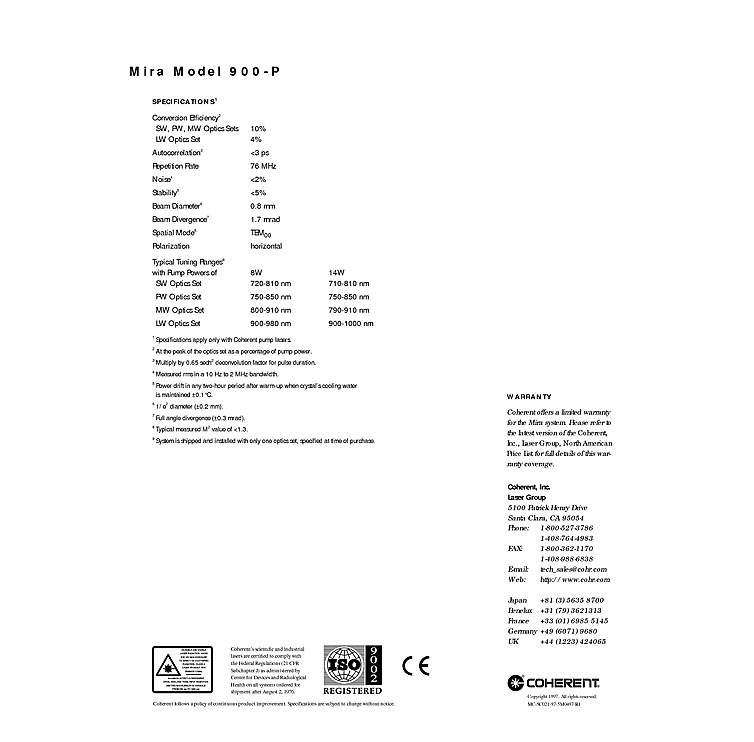

Typical Specifications:
- Conversion Efficiency
- SW, PW, MW Optics Sets 10%
- LW Optics Set 4%
- Autocorrelation <3 ps
- Repetition Rate 76 MHz
- Noise <2%
- Stability <5%
- Beam Diameter 0.8 mm
- Beam Divergence 1.7 mrad
- Spatial Mode TEM00
- Polarization horizontal

Description:

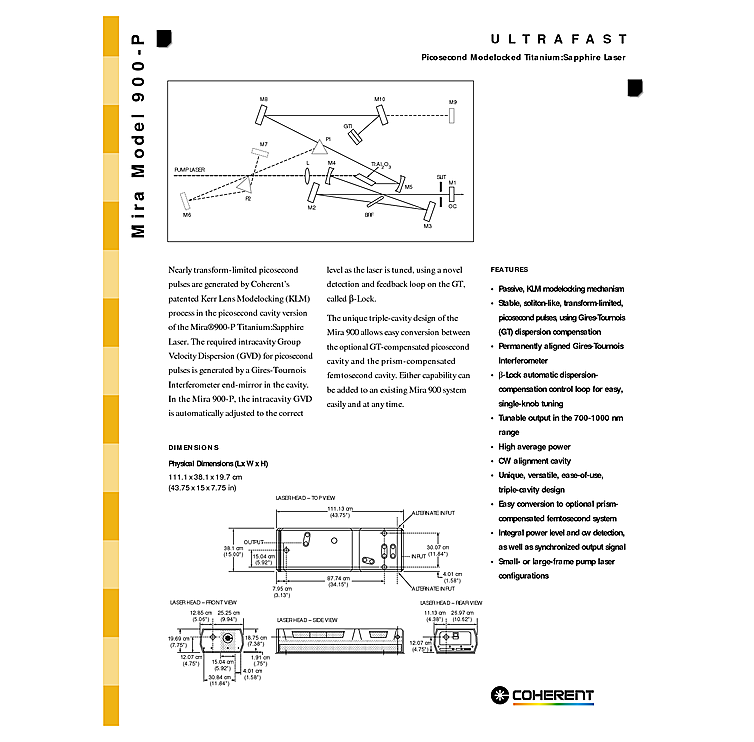

Titanium:Sapphire Laser from Coherent has a picosecond pulse output and tunable wavelength. Spatial Mode is TEM00 with an autocorrelation <3 ps. Picosecond laser features low noise output of less then 2% with high power stability of <5% over a 2 hour period after warm-up. Beam diameter is 0.8mm with divergence of 1.7mrad. Picosecond repetition rate of 76 MHz with high average output power of 14 watts. Ti: Sapphire Laser tunable wavelength range is 700nm to 1000nm.
