1064nm, 4mJ Nanosecond Laser

Northrop Grumman Model HLS-040-PMI
1064nm Nanosecond Laser
4mJ Pulse

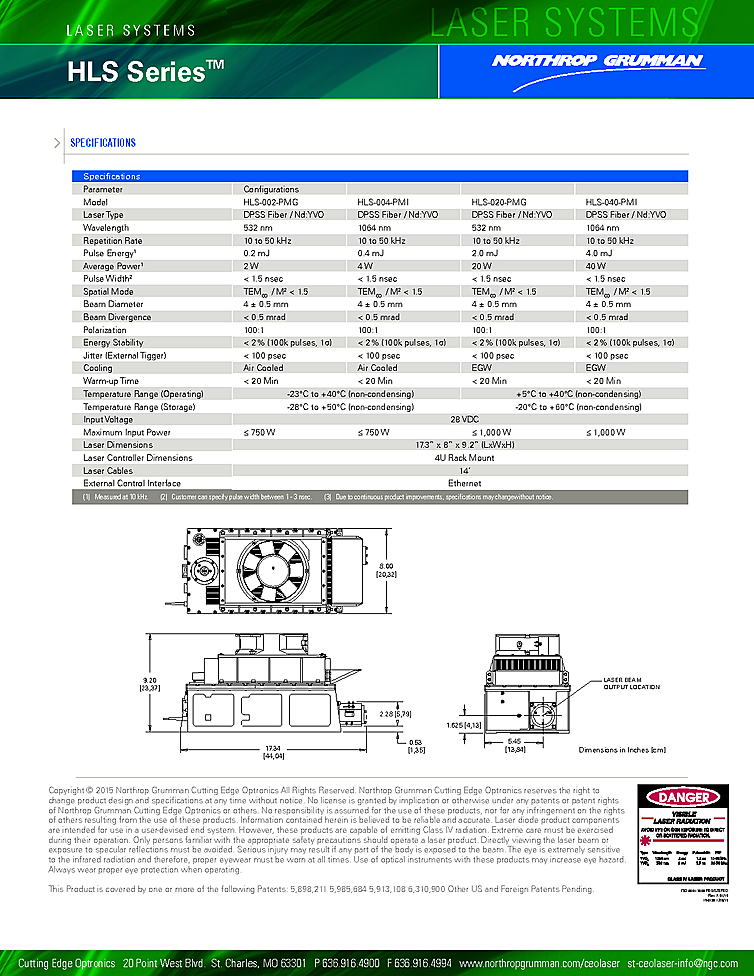

Typical Specifications:
- Laser Type: DPSS Fiber / Nd:YVO
- Wavelength: 1064 nm
- Repetition Rate: 10 to 50 kHz
- Pulse Energy: 40 mJ
- Pulse Width: < 1.5 nsec
- Beam Quality: M² < 1.3
- Timing Jitter: < 100 psec
- Cooling: Air-cooled

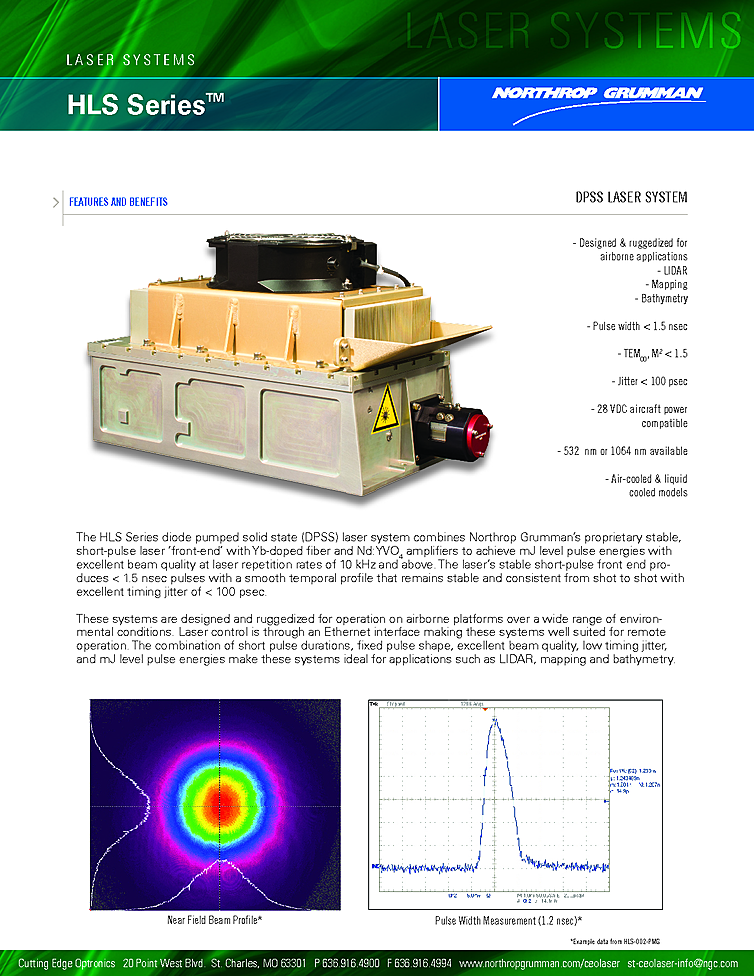

Description:
Nanosecond laser from Northrop Grumman-CEO is a diode pumped solid state (DPSS) laser system combines Northrop Grumman’s proprietary stable, short-pulse laser ‘front-end’ with Yb-doped fiber and Nd:YVO4 amplifiers to achieve mJ level pulse energies with excellent beam quality at laser repetition rates of 10 kHz and above. The laser’s stable short-pulse front end produces less than 1.5 nsec pulses with a smooth temporal profile that remains stable and consistent from shot to shot with excellent timing jitter of less than 100 psec. These systems are designed and ruggedized for operation on airborne platforms over a wide range of environmental conditions. Laser control is through an Ethernet interface making these systems well suited for remote operation. The combination of short pulse duration, fixed pulse shape, excellent beam quality, low timing jitter, and mJ level pulse energies make these systems ideal for applications such as LIDAR, mapping and bathymetry. Nanosecond laser with pulse energy of 4mJ at a wavelength of 1064nm.
