1064nm, 5nJ Femtosecond Laser

Ekspla Model LightWire FF200
1064nm Femtosecond Laser
5nJ Pulse

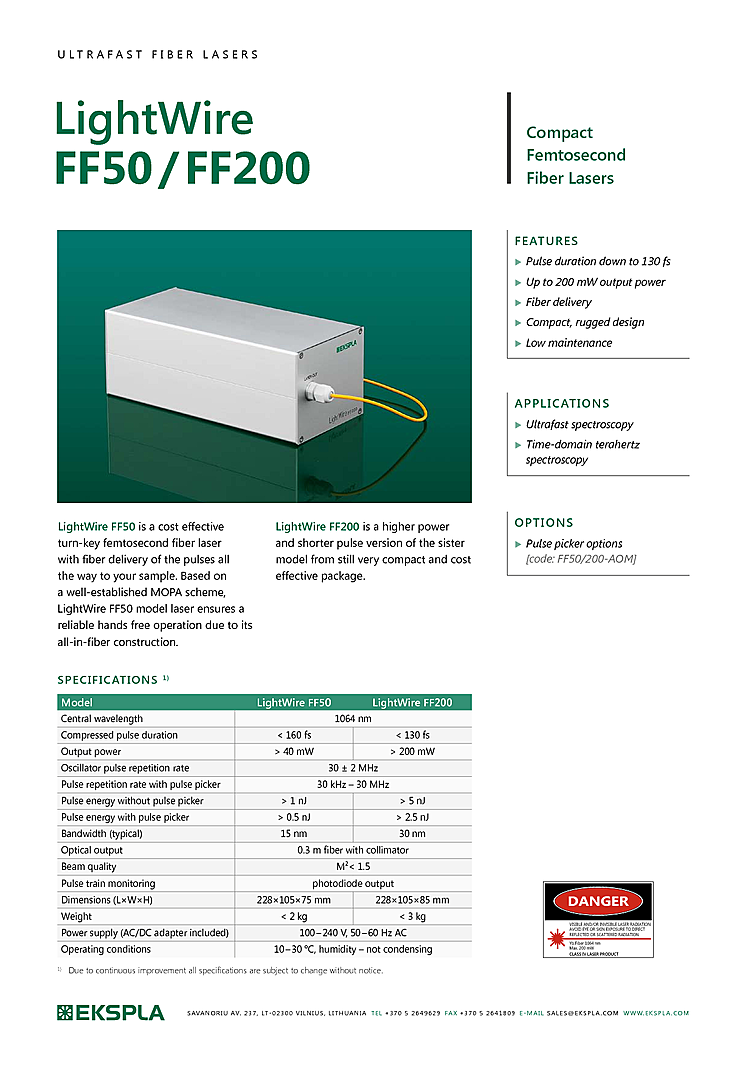

Typical Specifications:
- Central wavelength: 1064 nm
- Compressed pulse duration: < 130 fs
- Output power: > 200 mW
- Oscillator pulse repetition rate: 30 ± 2 MHz
- Pulse repetition rate with pulse picker: 30 kHz – 30 MHz
- Pulse energy without pulse picker: > 5 nJ
- Pulse energy with pulse picker: > 2.5 nJ
- Bandwidth (typical): 30 nm
- Optical output: 0.3 m fiber with collimator
- Beam quality: m² < 1.5

Description:
Fiber laser from Ekspla with femtosecond pulse output. Laser was designed for applications in Ultrafast spectroscopy and Time-domain terahertz spectroscopy. Fiber laser is a low maintenance compact and rugged design for easy integration into customer applications. Key features of the femtosecond laser include beam quality M2<1.5, pulse repetition rate of 30MHz, pulse duration of 130fs, and optional pulse picker. With the optional pulse picker the pulse repetition rate is adjustable from 30kHz to 30MHz. Fiber laser with output energy up to 5nJ at a wavelength of 1064nm.
