2020 nm CW Laser, 100W

This CW laser provides high stability Mid-IR laser source from Pantec Medical Laser. The model design utilizes an efficient laser diode pump source. The DPSSL Module is ideal for fiber coupling into 300 µm fiber. This laser features low waste heat and is maintenance free for long term use. Up to 1 J output energy from diode pump solid state laser design. Mid-IR laser output power up to 100 watts at a wavelength of 2020 nm.

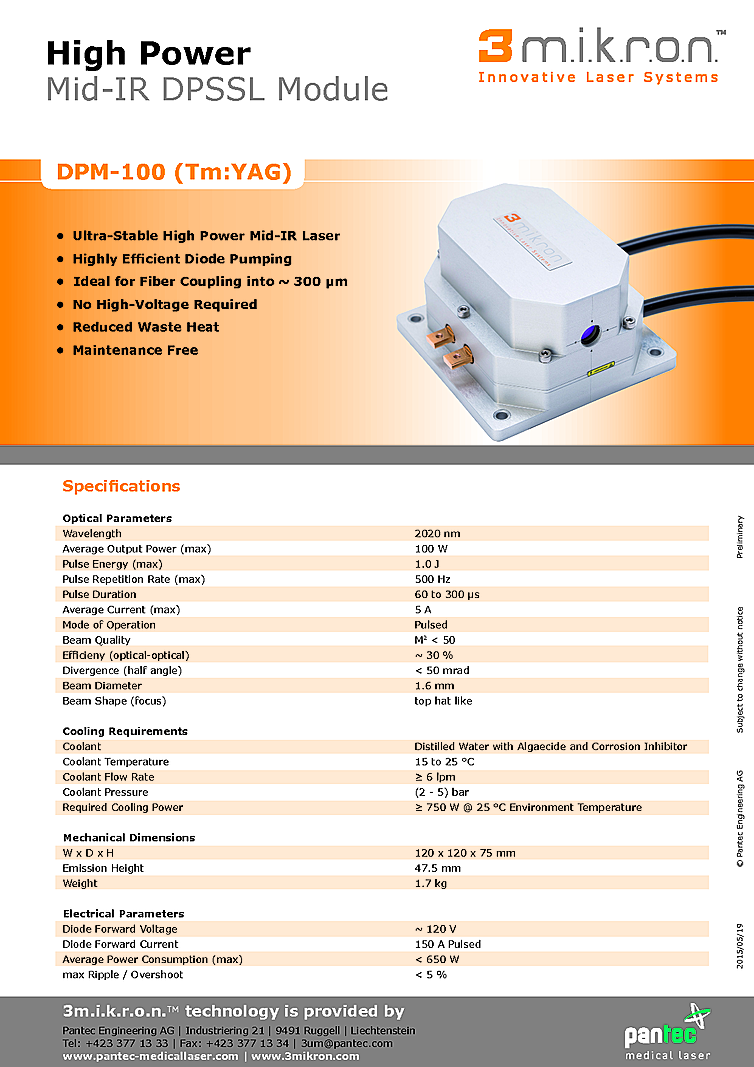

Review of Key Specifications:

Wavelength : 2020 nm

Maximum Output power : 100 W

Pulse Energy : 1.0 J

Pulse Repetition Rate : 500 Hz

Average Current : 5 A
