1064nm, 8µJ Nanosecond Laser

Teem Photonics MNP-08E-100
1064nm Nanosecond Laser
8µJ Pulse

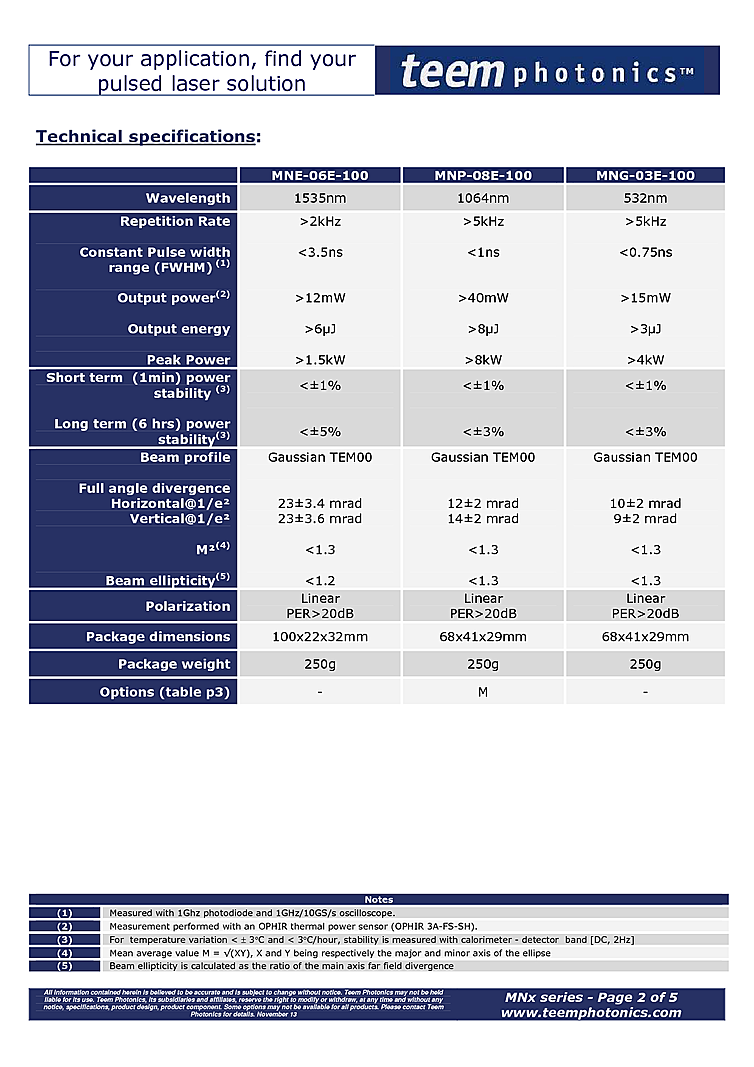

Typical Specifications:
- Wavelength: 1064nm
- Repetition Rate: >5kHz
- Constant Pulse width range (FWHM): <1ns
- Output power: >40mW
- Output energy: >8μJ
- Peak Power: >8kW
- Short term (1min) power stability: <±1%
- Long term (6 hrs) power stability: <±3%
- Beam profile: Gaussian TEM00
- Full angle divergence:
-- Horizontal@1/e² 23±3.4 mrad
-- Vertical@1/e² 23±3.6 mrad
- M²: <1

Description:

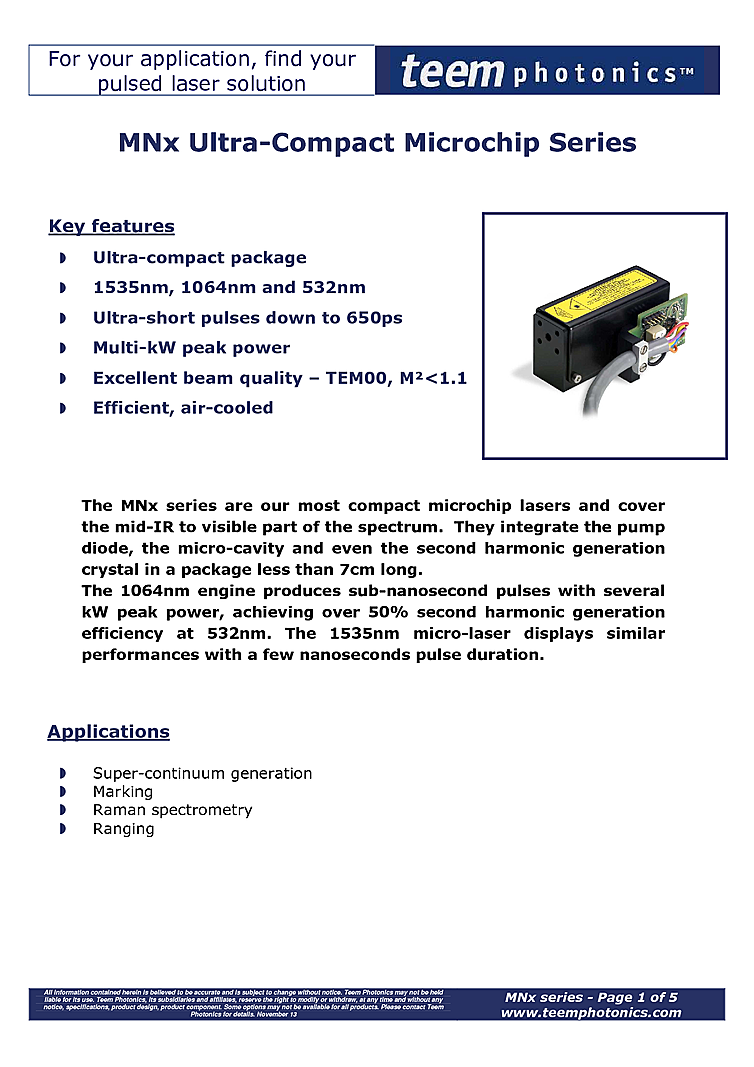

Nanosecond laser from Teem Photonics features an ultra-compact laser design with integrated pump source and second harmonic crystal. Careful attention to the design provides an efficient air-cooled laser with excellent beam quality – TEM00, M2<1.1. Peak power up to Multi-kW and ultra-short pulses down to 650ps at a repetition rate greater then 5kHz. Nanosecond laser output energy up to 8µJ at a wavelength of 1064nm.
