1064nm, 7µJ Picosecond Laser

Teem Photonics STP-07E-1x0
1064nm Picosecond Laser
7µJ Pulse

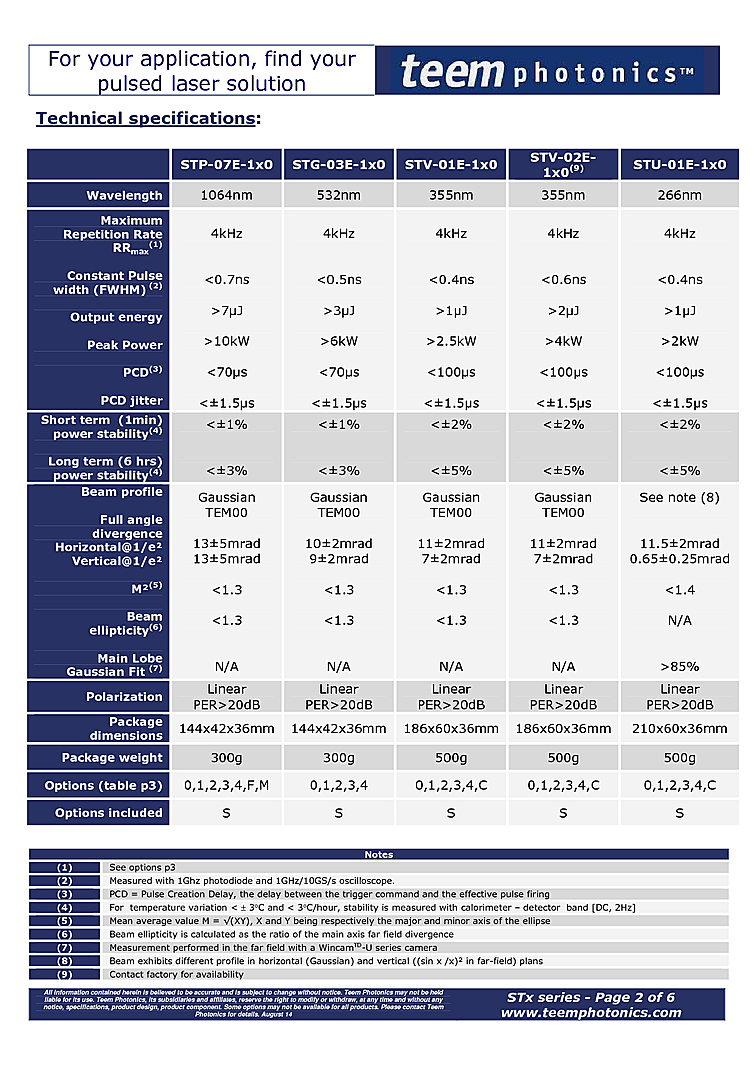

Typical Specifications:
- Wavelength: 1064nm
- Maximum Repetition Rate (RRmax): 4kHz
- Constant Pulse width (FWHM): <0.7ns
- Output energy: >7μJ
- Peak Power (PCD): >10kW
- PCD jitter: <70μs

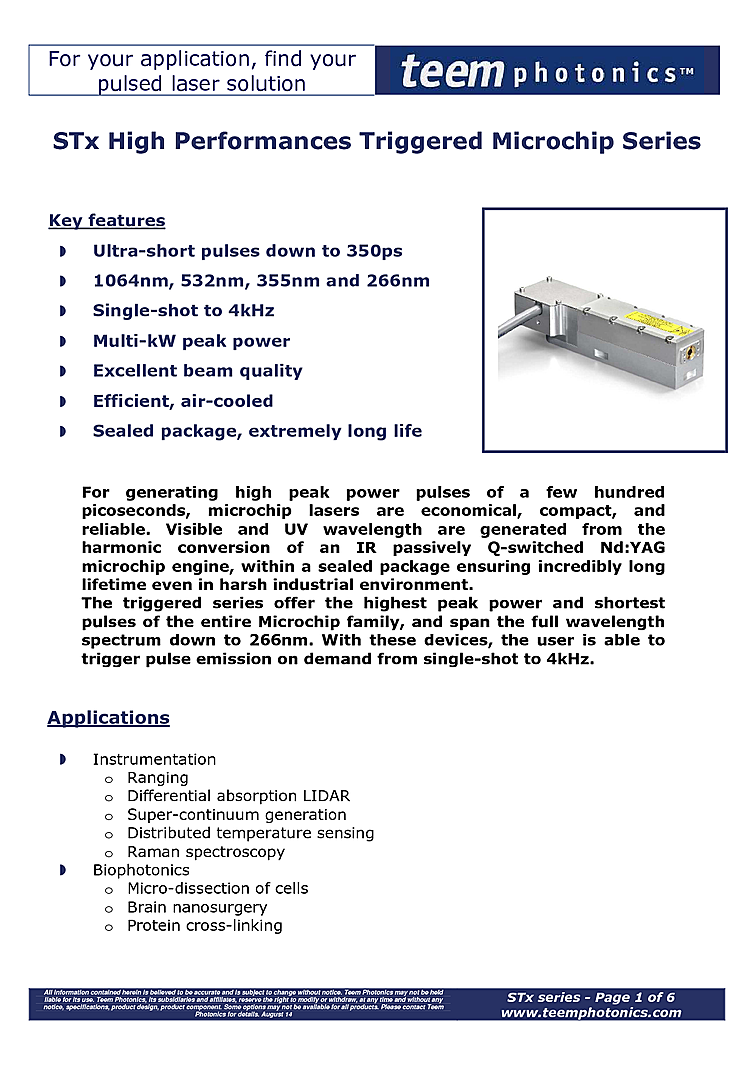

Description:
Nd:YAG laser from teem photonics. The Picosecond Laser was designed for applications in Ranging, Differential absorption LIDAR, Super-continuum generation, distributed temperature sensing, Raman spectroscopy and biophotonics. Maximum repetition rate for the picosecond laser is 4kHz with a constant pulse width less than 0.7ns. Long term power stability is +/-3% over 6 hours and short term stability is +/-1% (over 1 minute). Nd:YAG laser output energy up to 7µJ with a wavelength of 1064nm.
