180 Watt Picosecond Laser; 1064nm / 532nm / 355nm; Ultra-Fast Pulse Micromachining Laser

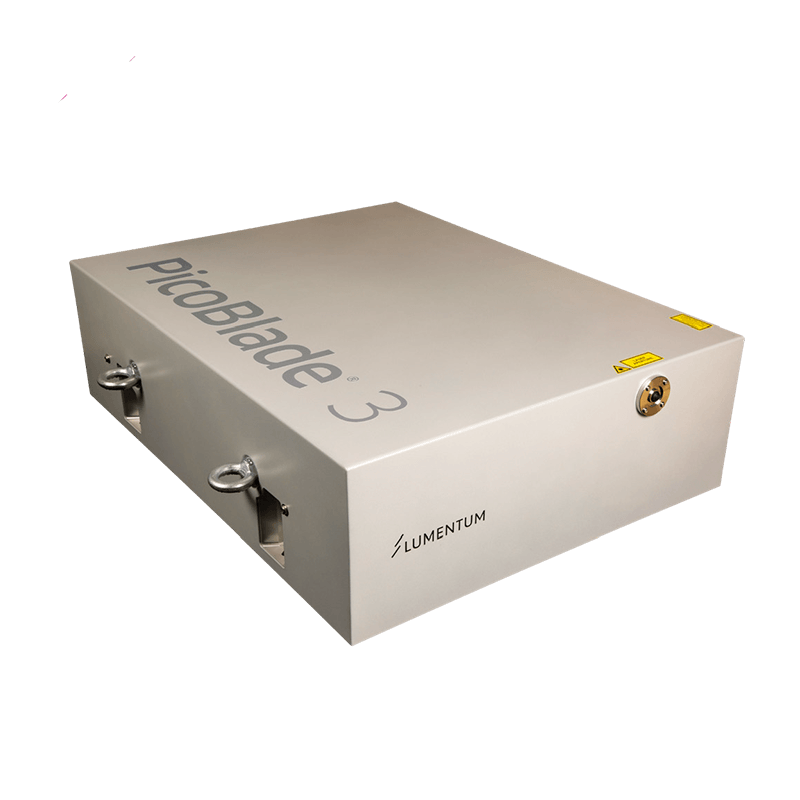

  • Picosecond Laser

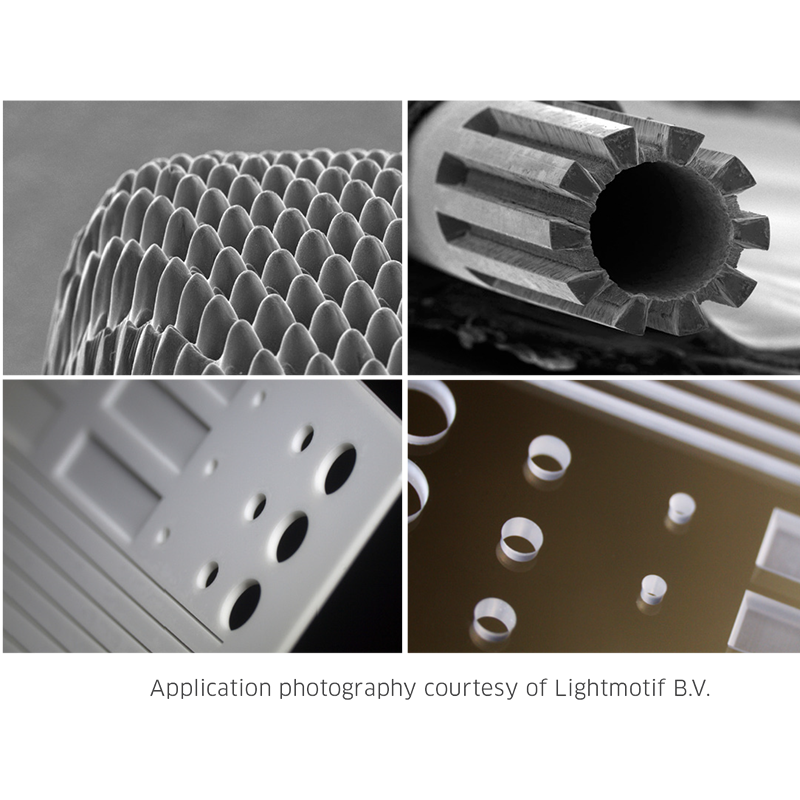

  • Picosecond Laser Example Cutting Ceramic
  • Picosecond Laser Beam

Request Quote   Ships: Request | Model PicoBlade 3

Key Features
  • Wide range of PRF from single shot to 8 MHz standard
  • High-volume manufacturing flexibility to meet short lead times
  • Modular design for field serviceability
  • Easy integration
  • Robust industrial design
  • A/D power modulation capability

Customers Also Considered:

MODEL PicoBlade 3
PRICE Request Price
Optical (typical)
  • Output Power IR (1064nm): 180 Watts
  • Output Power Green (532nm): 100 Watts
  • Output Power UV (355nm): 50 Watts
  • Repetition Rate: Single Shot to 8 MHz
  • Pulse Width Measured at 1064nm: 10 picoseconds
  • Spatial Mode: TEM00
  • Polarization: >100:1 linear horizontal
  • Spatial Mode: M^2 < 1.3
APPLICATIONS
  • OLED cutting
  • PCB production
  • Glass cutting, welding, scribing
  • Sapphire cutting, scribing
  • High-speed precision metal machining
  • Selective thin-film ablation
  • Medical device manufacturing
Options
  • AccuTrig triggering function
  • MegaBurst™ high-energy burst
  • SYNC for high-speed line scanners

Product Overview:

High Power Picosecond Laser for Precision Micromachining


Precision and flexibility for optimized processes - a fully featured, machine-ready system.

The PicoBlade® 3 laser system is a versatile tool for processing virtually any material with the highest precision and reliability. The newly redesigned PicoBlade platform provides the same flexibility as previous generations. The PicoBlade system consists of a laser head with an integrated electronic controller and a closed-loop water chiller. The optical components are contained in a hermetically-sealed and temperature-stabilized housing giving the laser its robustness and ensuring excellent long-term stability. The lasers modular design enables field serviceability, significantly reducing downtime.
