Home  >  Femtosecond Lasers  >  Lumentum  >  FemtoBlade™



Femtosecond Micromachining Laser
1030nm, 515nm, 343nm Options
by Lumentum

  • Femtosecond micromachining laser 1030nm 515nm 343nm
  • Femtosecond micromachining laser 1030nm 515nm 343nm
  • femtosecond laser for manufacturing

Request Quote   Ships: Ιnquire | Model FemtoBlade™

Key Features
  • Output Wavelength Options: 1030nm, 515nm, 343nm

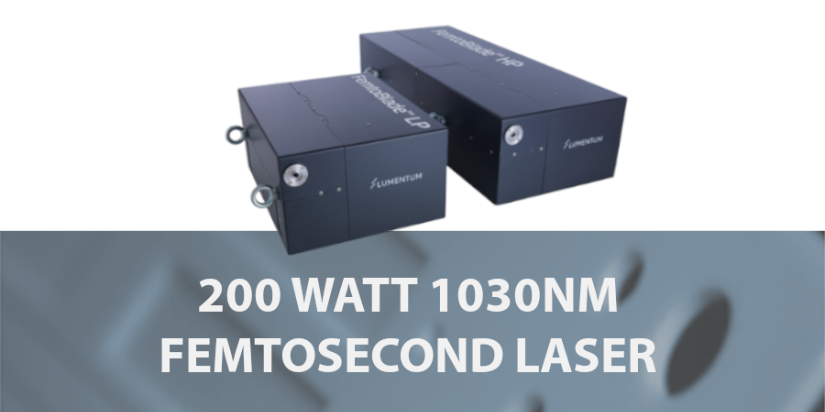

  • High Power Output: up to 200W at 1030nm
  • PRF: Single Shot to 16 MHz at 1030nm
  • <500 fs Pulse Width at 1030nm
  • Flexbursτ™ Technology
  • Integrated Electronic Controller
  • Robust Industrial Design

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL FemtoBlade™
PRICE Request Price
Optical Specifications (typical)
  • 1030nm Output (Infrared)
    • High Output Power Option: 200 W
    • Low Output Power Option: 45 W
    • PRF: Single Shot to 16 MHz
    • Pulse Width: <500 fs
  • 515nm Output (Green)
    • High Output Power Option: 100 W
    • Low Output Power Option: 25 W
    • PRF: 1 MHz
    • Pulse Width: <500 fs to > 5 ps
  • 343nm Output (Ultraviolet)
    • High Output Power Option: 50 W
    • Low Output Power Option: 12 W
    • PRF: 1 MHz
    • Pulse Width: <500 fs to > 5 ps
  • M2: 1.3
  • Spacial Mode: TEM00
  • Polarization: >100:1 Horizontal
Ordering Options
  • Wavelength: 1030nm, 515nm, 343nm
  • Power Levels: High, Low (See Specifications Above)
  • AccuTrig™ Triggering Function
  • MegaBurst™ High Energy Burst
  • SYNC for High Speed Line Scanners

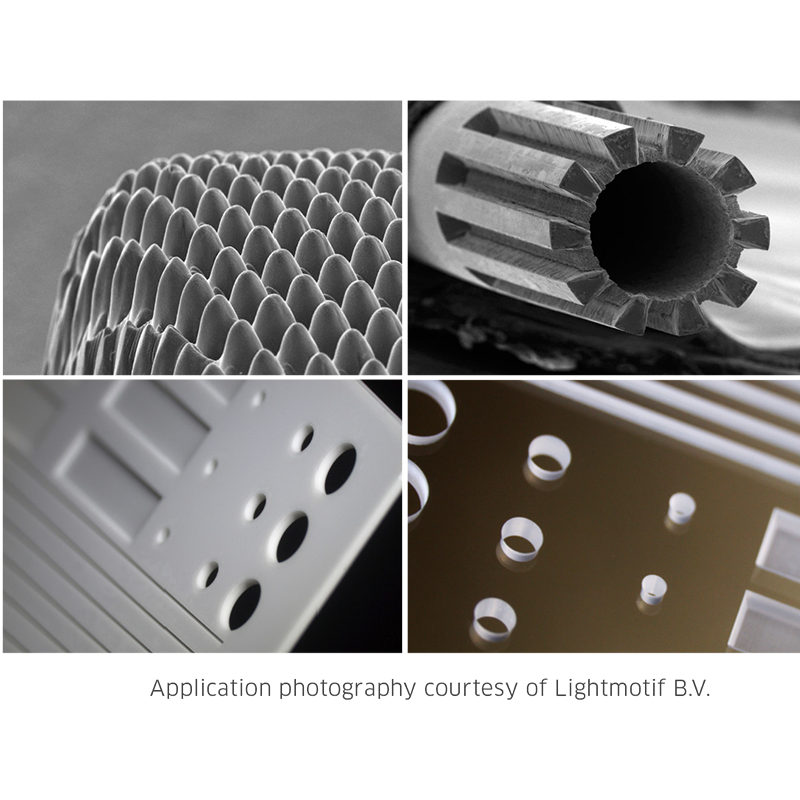

APPLICATIONS
  • OLED cutting
  • PCB production
  • Glass cutting, welding, scribing
  • Sapphire cutting, scribing
  • High-speed precision metal machining
  • Selective thin-film ablation
  • Metal drilling, cutting
  • Medical device manufacturing
General Specifications
  • High Power Laser Head: 1004 mm x 389 mm x 239.5 mm

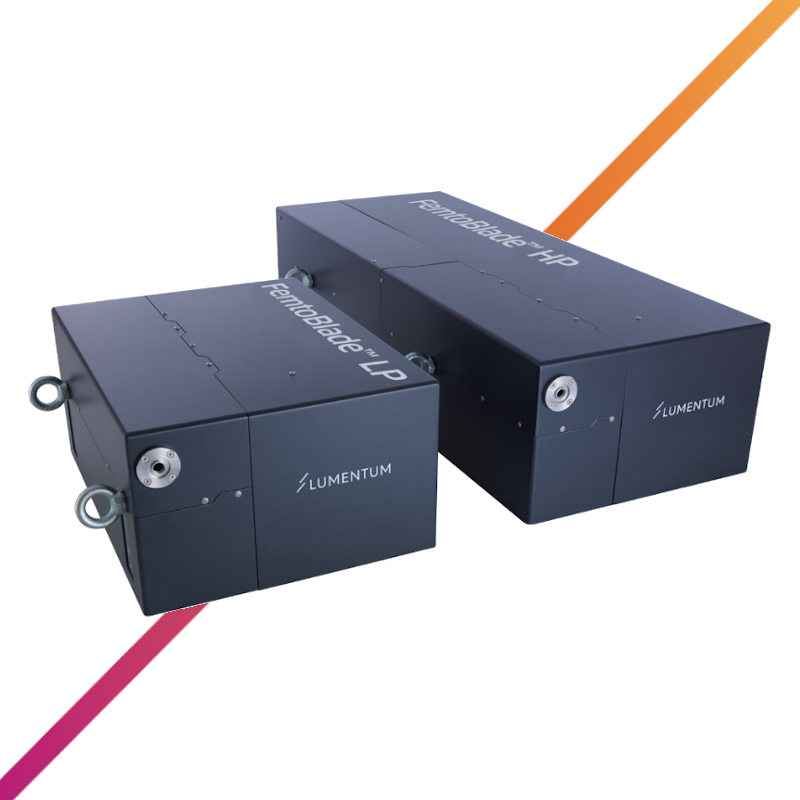

  • Low Power Laser Head: 505.5 mm x 389 mm x 239.5 mm
  • Exit Beam Location: 195 mm x 32.9 mm
  • Power Supply Dimensions: 388 mm x 485 mm x 43 mm

Product Overview:

Femtosecond Laser Optimized for Precision and Flexibility

The Lumentum FemtoBlade™ micromachining laser delivers unmatched femtosecond pulse performance in a wide range of industrial laser machining applications.

With three different wavelength options and two power output options, the FemtoBlade™ provides terrific versatility for a wide range of material cutting, welding, and scribing applications. The system is ruggedly built for industrial environments, and can deliver high quality products at high throughput rates.
