Matched Fiber Bragg Grating for Fiber Lasers and Raman

Request Quote   Ships: Request a Quote for Current Ship Date | Model FBG-MATCHED-PAIR

Key Features
  • Optical Connector: Bare fiber, Custom
  • FBG Pigtail Length: 0.5 meters (Custom Available Upon Request)
  • Wavelength range: 600nm to 2300nm (Custom Request)
  • Types of Fiber: Single-Mode, PM, Double clad, LMA, Custom

Customers Also Considered:

MODEL FBG-MATCHED-PAIR
PRICE Request Price

Product Overview:

Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used like in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used like a sensitive element for strain and temperature measuring.

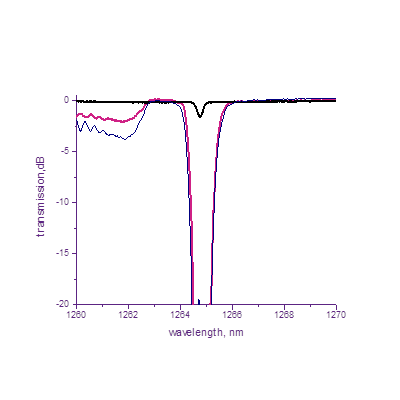

Our Laser Matched FBG pairs are an ideal solution for fiber laser fabrication. Minimum insertion losses and optimal parameters are for lasers with output power of several tens watt. High reflection grating has bandwidth at level -20dB about 0.5 ÷ 0.7 nm. High reflection grating has level -20dB about 0.5 – 0.7nm. Output grating with reflectivity 5% - 40% has FWHM 0.15 ÷ 0.35nm. Mismatching LR grating relative to HR one is up to ± 0.1nm. For fiber lasers with narrow line we are presented FBG pairs with FWHM around or less 0.1nm with ideal matching without adjustment. The transmission spectrum of FBGs Pair for Yb laser and Raman converter are presented in the graph.
