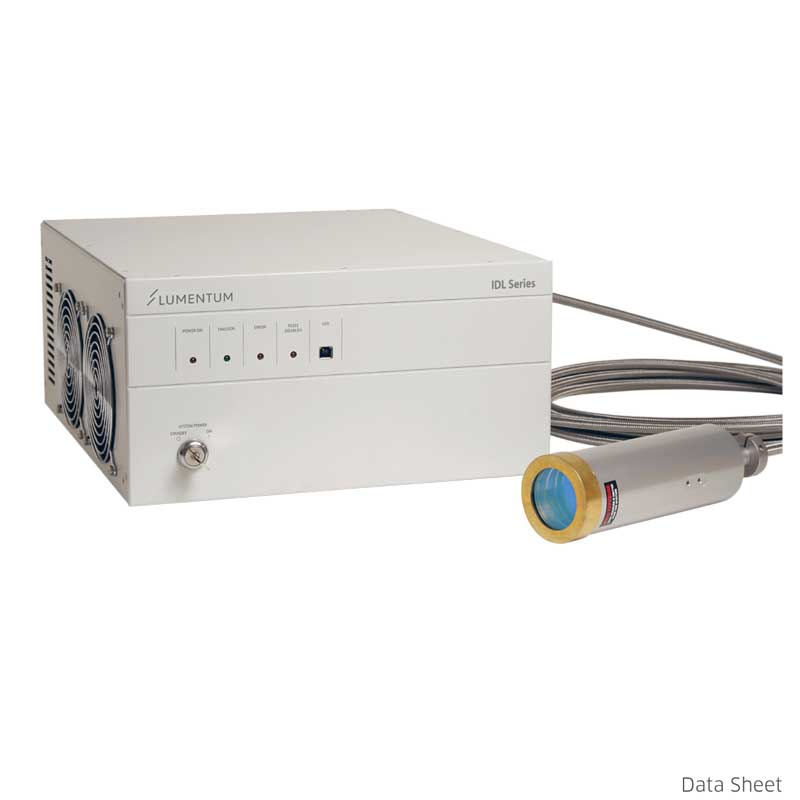

CW Laser 940nm, 180W; Air-Cooled, Direct-Diode Laser System

  • CW Laser 940nm 180W Air-Cooled Direct-Diode Laser System

Request Quote   Ships: . | Model IDL Series

Key Features
  • 940nm, 180 Watts of Output Power
  • High-reliability, individual emitter architecture
  • Multipoint health monitoring
  • Best-in-class top-hat beam profile
  • 600 μm, 0.22 NA output available
  • Armored fiber delivery

Customers Also Considered:

MODEL IDL Series
PRICE Request Price
APPLICATIONS
  • Plastic welding
  • Selective soldering
  • Heat treatment
  • Brazing
  • Thin-metal welding
GENERAL SPEIFICATIONS
  • CW Output Power Model IDL90S: 90 WATTS
  • CW Output Power Model IDL180S: 180 WATTS
  • Wavelength: 940±10 nm
  • Spectral width, FWHM at full powe: <6 nm
  • Rise time/fall time (10% – 90%): <250 μs
  • Output Cable: Connector type SMA 905
  • Armor type: Braided stainless steel
  • Cable length: 6.7 m (22 ft.) typical
  • Minimum bend radius: 99 mm
  • Beam quality: 60 mm-mrad nominal
  • Fiber core diameter: 600 μm
  • Fiber NA:<0.22

Product Overview:

IDL Series air-cooled, direct-diode laser systems combine our high-reliability L4 diode lasers with a unique fused-fiber individual-emitter architecture and novel health-monitoring system to yield an extremely reliable and scalable product that performs in the most demanding industrial manufacturing environments. Providing up to 180 watts of multimode laser output, these products are ideally suited for plastics welding, selective soldering, and heat treating,handling a greater diversity of materials and reducing costs while increasing throughput in existing operations. Unlike bar-based diode-laser products, IDL Series fused-fiber, individual-emitter architecture offers exceptional thermal isolation between emitters, eliminating severe thermal reliability issues. Modulated operation does not shorten product lifetime. The fused-fiber construction further eliminates sources of contamination, ensuring uninterrupted, reliable performance for the lifetime of the laser. Additionally, the individual-emitter construction enables individual device monitoring, control, and simple, low-cost serviceability.
