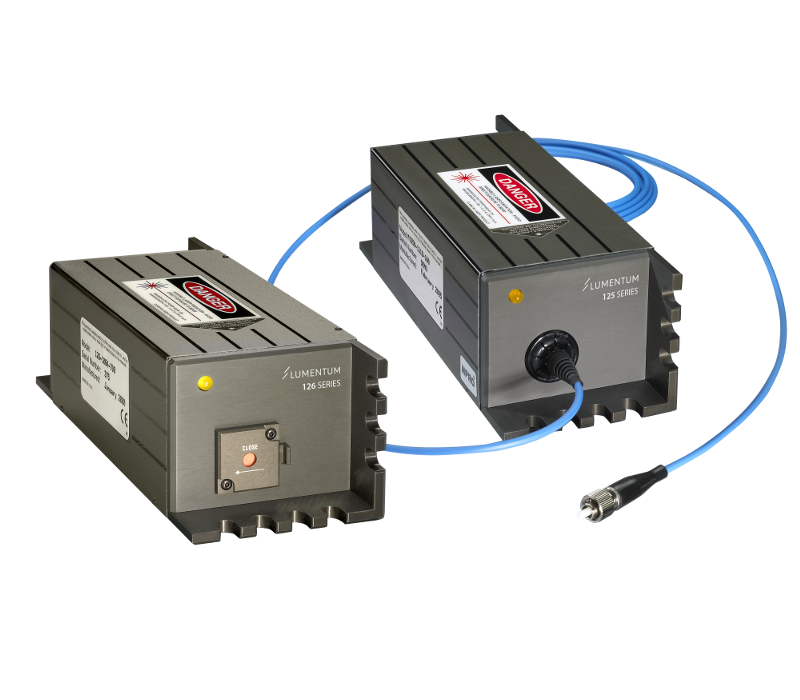

CW Laser, 1319nm, 200mW; Single Frequency IR Laser from Lumentum

  • CW Laser 1319nm 200mW Single Frequency IR Laser from Lumentum
  • Lumentum CW laser

Request Quote   Ships: Contact | Model NPRO

Key Features
  • 1319 nm output
  • Fiber-coupled output
  • Proven nonplanar ring oscillator (NPRO) design
  • Superior power stability
  • Narrow linewidth
  • Tunability

Customers Also Considered:

MODEL NPRO
PRICE Request Price
Specifications
  • Wavelength:1319 nm
  • CW power: ≥100, 150, 200 mW
  • Spatial mode: TEM00
  • Longitudinal mode: Single frequency
  • Linewidth: <5 kHz/ms
  • Coherence length, calculated: >1000 m
  • Frequency drift: <50 MHz/hr
  • Amplitude noise, 10 Hz to 2 MHz: <0.05% rms
  • Power drift over 8 hours: <5% peak-to-peak
  • Thermal tuning range, continuous: >10 GHz
  • Thermal tuning range, total: >30 GHz
  • Thermal tuning rate: >1 GHz/s
  • Piezo tuning range, 0 to 100 V: >30 MHz
  • Piezo response bandwidth, small signal: >30 kHz
  • Warm-up time, from cold start (AC off): 1 min.
Fiber Optic
  • Fiber supplier and part number: Fujikura SM13-P7/125-UV/UV-400
  • Fiber pigtail length: >2 m
  • Fiber pigtail connector alignment: FC/PC, key parallel to slow axis
  • Polarization, linear: >30:1, parallel to connector key
  • Mode field diameter, NA: 9.5 μm, 0.11
Applications
  • Fiber-optic sensing
  • Coherent communications
  • Remote antenna links
  • Optical heterodyne
  • Lidar oscillator
  • Passive sonar

Product Overview:

CW laser from Lumentum with with fiber coupled output. Compact design makes this CW laser ideal for OEM applications. Lumentum laser with output power up to 200mW at a wavelength of 1319 nm.
