532nm, 20mW DPSS Continuous Wave Laser from Lumentum

  • 532nm 20mW OEM Laser Lumentum

Request Quote   Ships: . | Model RLS/CDPS532S-020

Key Features
  • 532nm ±1nm Output Wavelength
  • 10 mW and 20 mW Options Available
  • High Quality Output Beam
  • Highly Compact Design

Customers Also Considered:

MODEL RLS/CDPS532S-020
PRICE Request Price
Optical Specifications
  • Output Wavelength: 532nm ±1nm
  • Output Power: 10 mW and 20 mW Models Available
  • Power Stability : <1.5% (1 hour, 25±3°C)
  • Noise (rms, 20 Hz to 1 MHz) <0.5%
Output Beam Specifications
  • Mode Quality M2: <1.3
  • Beam Diameter: 1.9±0.2 mm, (1/e2 point, at 250 mm)
  • Beam Divergence (Full Angle): <8 mrad
  • Polarization Ratio: >100:1 (E-vector is Vertical)
  • Ellipticity: <10%
Applications
  • DNA sequencing
  • Flow Cytometry
  • Capillary Electrophoreses
  • Instrumentation

Product Overview:

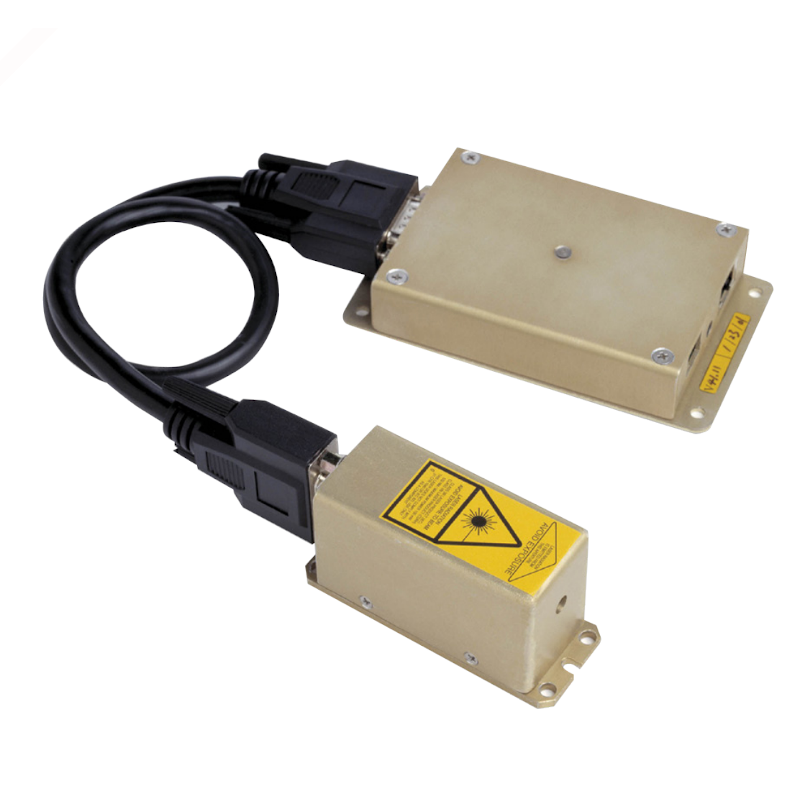

532nm, 20mW, Compact DPSS CW Laser by Lumentum

The Lumentum CDPS532S is a compact, continuous wave, 532 nm, diode-pumped solid-state laser. The system features a laser head and multi-function controller that requires a 5 VDC power source. It provides 10 mW and 20 mW of optical power with remarkable beam quality and low noise.

Key Features of Lumentum's Compact DPSS Laser

One of the key benefits of the CDPS532S is its compact and efficient design, which makes it easy to integrate into OEM instrumentation. The laser head does not incorporate beam shaping optics to allow for the smallest possible packaging. The CDPS532S laser controller is also very compact and efficient enough to forgo additional heat sinking.
