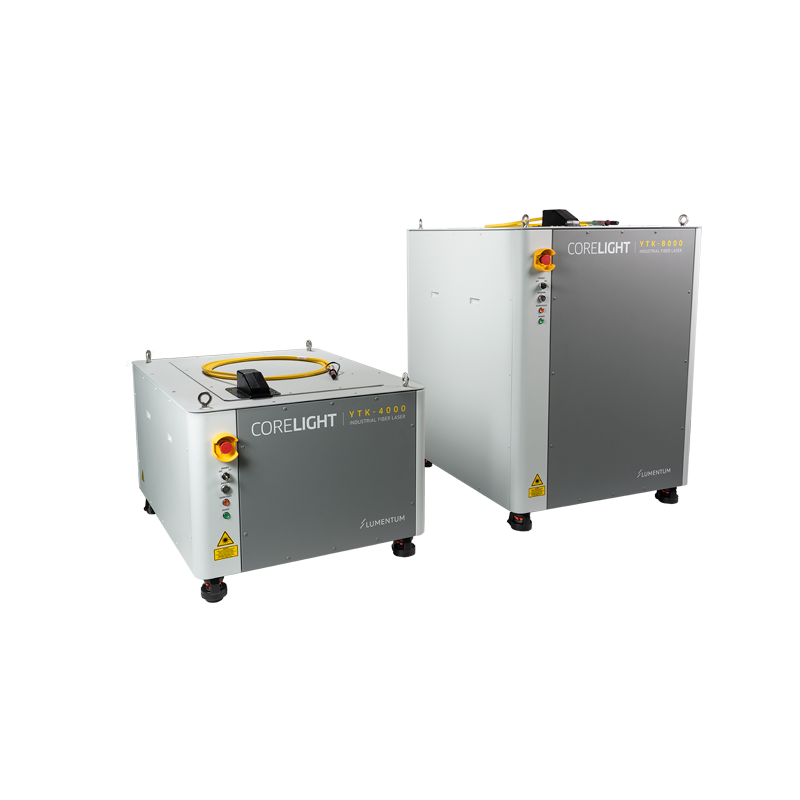

LUMENTUM Corelight Series 8kW Fiber Laser, 1080nm Ultra-High Power CW Laser

Request Quote   Ships: | Model CORELIGHT

Key Features
  • Compact Fiber Laser System
  • Output power: 3kW, 4kW, 6kW, 8kW
  • Center Length: 1080nm
  • Fiber Core Diameter: 50 μm or 100 μm

Customers Also Considered:

MODEL CORELIGHT
PRICE Request Price
OPTICAL OUTPUT POWER
  • ------ Model: CORELIGHT YTK-3000-------------------------------------
  • Output Power: > 3 kW
  • Output Fiber Core / Beam Shape : 50 µm / Pseudo-Gaussian
  • Output Fiber Core / Beam Shape : 100 µm, Top hat
  • ------ Model: CORELIGHT YTK-4000-------------------------------------
  • Output Power: > 4 kW
  • Output Fiber Core / Beam Shape : 50 µm / Pseudo-Gaussian
  • Output Fiber Core / Beam Shape : 100 µm, Top hat
  • ------ Model: CORELIGHT YTK-6000-------------------------------------
  • Output Power: > 6 kW
  • Output Fiber Core / Beam Shape : 50 µm / Pseudo-Gaussian
  • Output Fiber Core / Beam Shape : 100 µm, Top hat
  • ------ Model: CORELIGHT YTK-8000-------------------------------------
  • Output Power: > 8 kW
  • Output Fiber Core / Beam Shape : 50 µm / Pseudo-Gaussian
  • Output Fiber Core / Beam Shape : 100 µm, Top hat
General
  • Communication: Analog/Ethernet
  • Modulation Frequency: Up to 10 kHz
  • Modulation Depth: 98% minimum
  • Power Monitor Accuracy: 10%
  • Fiber Length: Up to 20 m
  • Output Connector: LLK-Q Compatible
  • Dimensions ( H x W x L):
    3kW, 4kW: 760x870x1200 mm
    6kW, 8kW: 1375x920x1200 mm
  • AC Voltage: 380 to 480 VAC
  • AC Wiring Configuration: Wye (5 wire)
Applications
  • Macromaterials processing including: 2D, 3D metal cutting Additive manufacturing
  • Welding
  • Additive manufacturing

Product Overview:

CORELIGHT Series high-power fiber laser systems are based on Lumentum next-generation high-reliability engines. The laser systems offer straightforward integration with new and existing machine tools and are optimized for performance, space savings and cost efficiency. Laser control and monitoring are accomplished through analog and Ethernet communication ports. Multiple, user-accessible, real-time system logs assure detailed operational history is available for review at any time.
