1000nm-2500nm, 10-20nm NIR Spectrometer

Spectral Evolution LF-2500
1000nm-2500nm Spectral Range
10-20nm Resolution

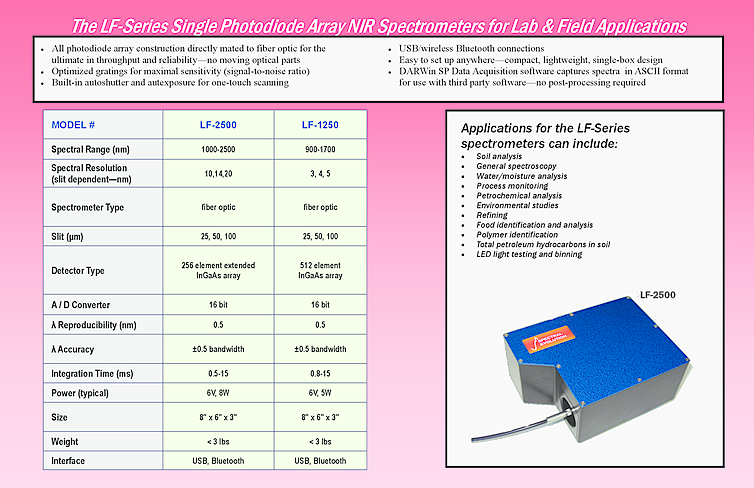

Typical Specifications:
- Spectral Range (nm): 1000-2500
- Spectral Resolution (slit dependent—nm): 10, 14, 20
- Spectrometer Type: fiber optic
- Slit (μm): 25, 50, 100
- Detector Type: 256 element extended InGaAs array
- A/D Converter: 16 bit
- λ Reproducibility (nm): 0.5
- λ Accuracy: ±0.5 bandwidth
- Integration Time (ms): 0.5-15
- Power (typical): 6V, 8W

Description:
NIR spectrometer was designed for high throughput and reliability by designing the photodiode array to directly to the fiber optic; no moving parts. The spectral range of this Spectral Evolution Spectrometer is 1000nm to 2500nm. The design and selection of the gratings provides for maximum sensitivity and signal to noise ration; spectral resolution is 10-20nm. For one touch scanning the NIR spectrometer features an autoshutter and autoexposure. For USB and Bluetooth connections along with powerful DARWin data acquisition software makes capturing spectra fast and easy in a ASCII format for use with third party software. High performance NIR Spectrometer is ideal for applications in:
