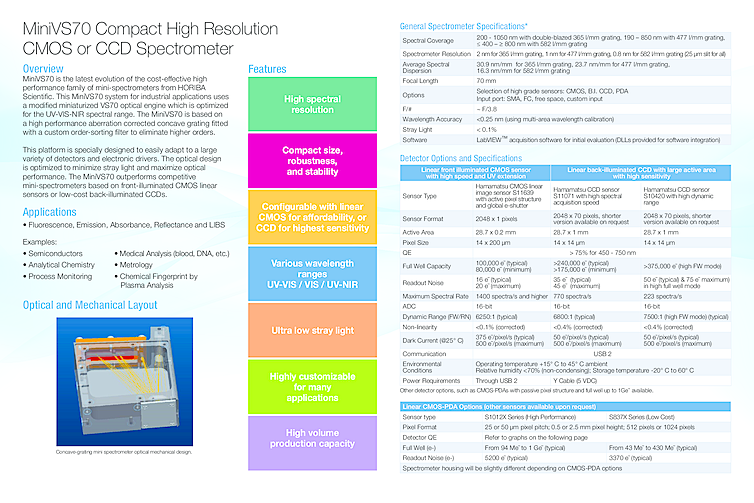

100nm-1050nm, 2nm UV-VIS Spectrometer

Horiba Scientific Spectrometer: MiniVS70
100nm-1050nm Spectral Range
2nm Resolution

Typical Specifications:
- Spectral Coverage: 200 - 1050 nm with double-blazed 365 l/mm grating, 190 – 850 nm with 477 l/mm grating, ≤ 400 – ≥ 800 nm with 582 l/mm grating
- Spectrometer Resolution: 2 nm for 365 l/mm grating, 1 nm for 477 l/mm grating, 0.8 nm for 582 l/mm grating (25 μm slit for all)
- Average Spectral Dispersion: 30.9 nm/mm for 365 l/mm grating, 23.7 nm/mm for 477 l/mm grating, 16.3 nm/mm for 582 l/mm grating
- Focal Length: 70 mm
- Options: Selection of high grade sensors: CMOS, B.I CCD, or FI CCD

Description:
MiniVS70 is the latest evolution of the cost-effective high performance family of mini-spectrometers from HORIBA Scientific. This MiniVS70 system for industrial applications uses a modified miniaturized VS70 optical engine which is optimized for the UV-VIS-NIR spectral range. The MiniVS70 is based on a high performance aberration corrected concave grating fitted with a custom order-sorting filter to eliminate higher orders.
This platform is specially designed to easily adapt to a large variety of detectors and electronic drivers. The optical design is optimized to minimize stray light and maximize optical performance. The MiniVS70 outperforms competitive mini-spectrometers based on front-illuminated CMOS linear sensors or low-cost back-illuminated CCDs.
