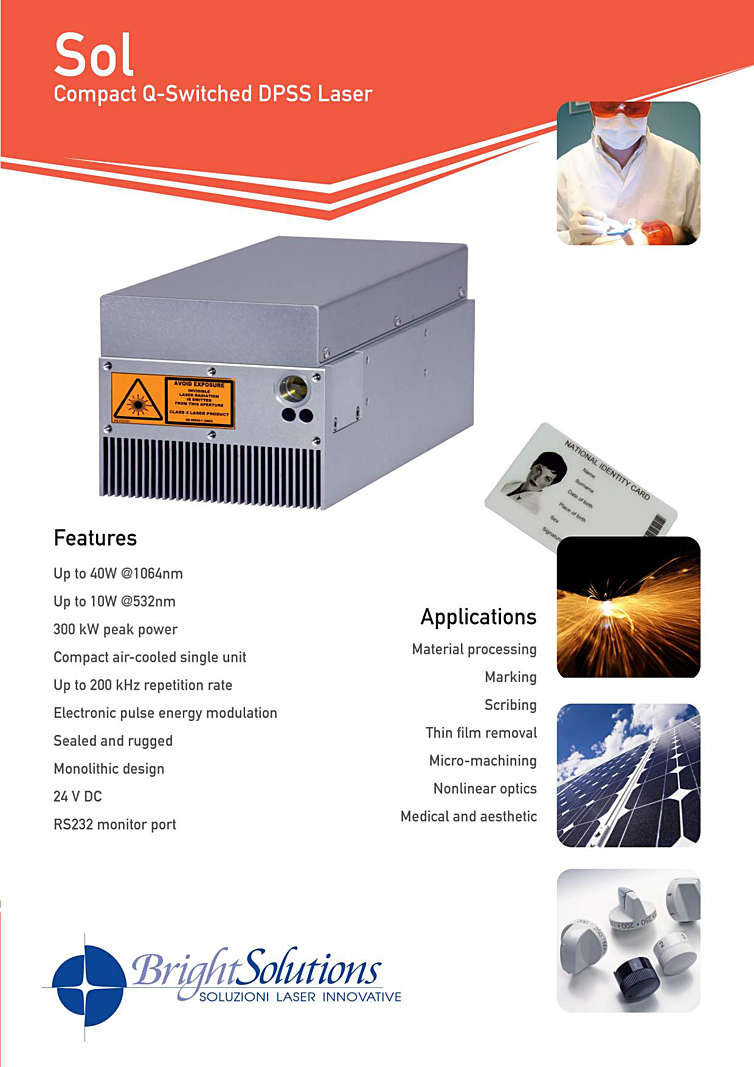

1064nm, 6W-40W Nanosecond Laser

RPMC Lasers Sol DPSS 1064nm
1064nm Nanosecond Laser
6W-40W Output Power

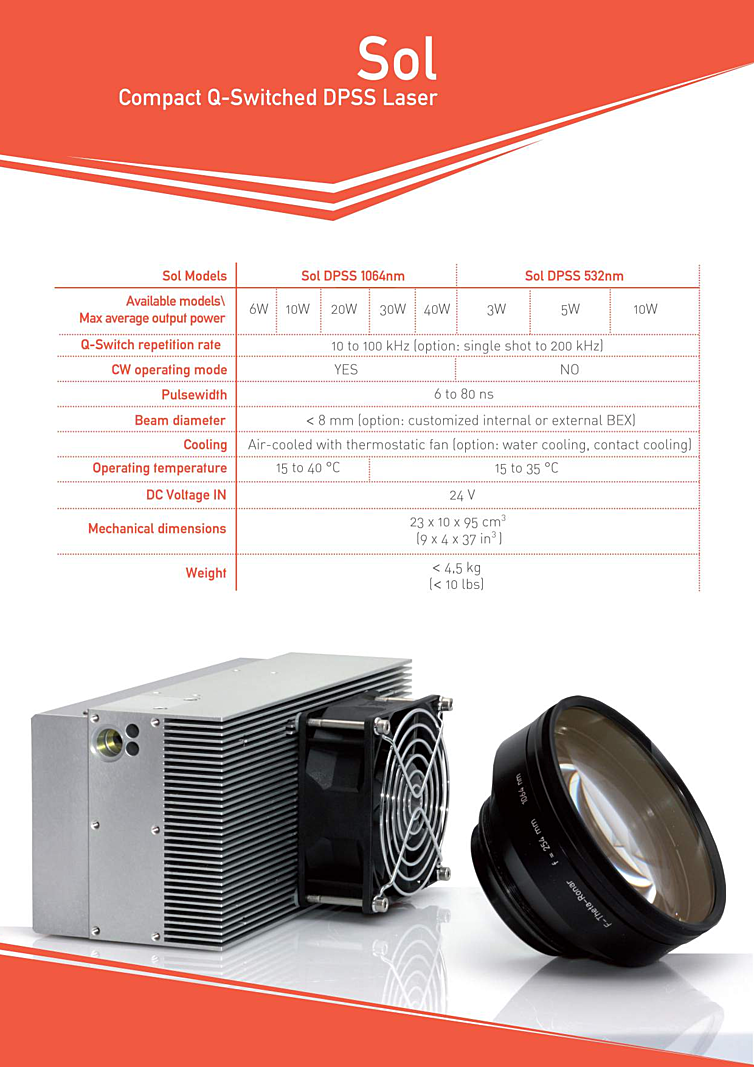

Typical Specifications:
- Max average output power: 6W, 10W, 20W, 30W, 40W
- Q-Switch repetition rate: 10 to 100 kHz
- CW operating mode: Yes
- Pulsewidth: 6 to 80 ns
- Beam diameter: < 8 mm
- Cooling: Air-cooled w/ thermostatic fan

Description:

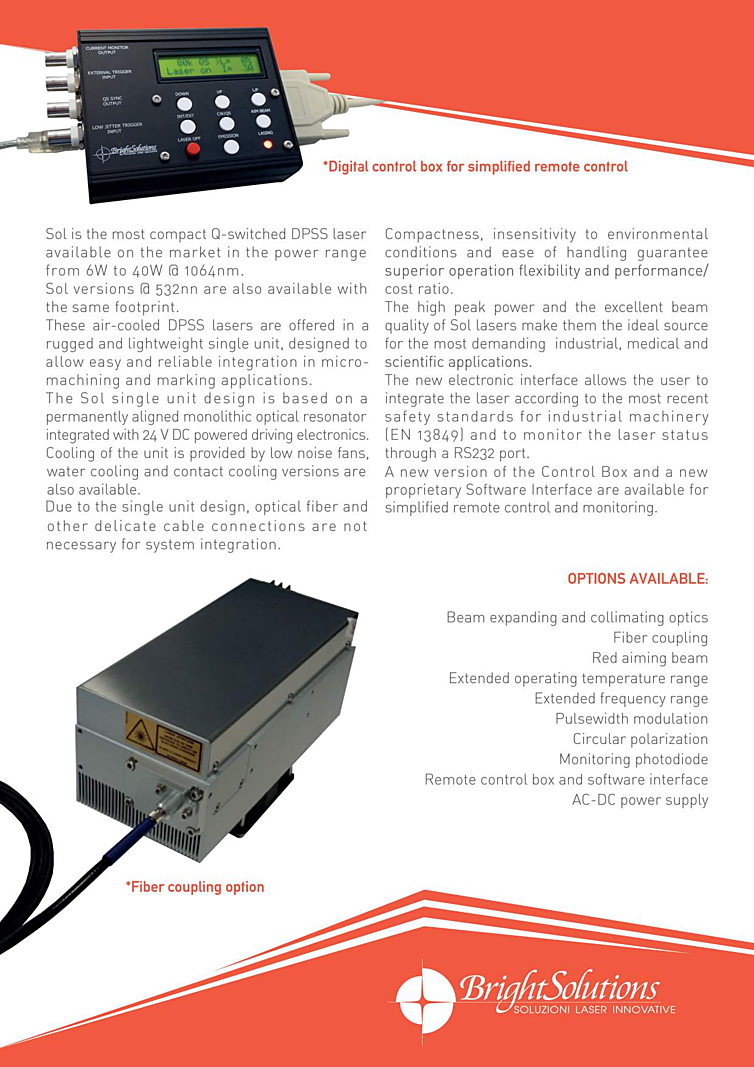

SOL lasers are the most compact Q-switched DPSS nanosecond laser available in the 4W to 40W power range. These air-cooled DPSS nanosecond lasers are offered in a rugged and lightweight single unit, designed to allow easy and reliable integration in micro-machining and marking applications. The SOL single unit design is based on a permanently aligned monolithic optical resonator integrated with 24 Vdc powered driving electronics. Cooling of the unit is provided by low noise fans.
