1550nm, 2W Femtosecond Laser

Menhir Photonics MENHIR-1550
1550nm Femtosecond Laser
2W Output Power

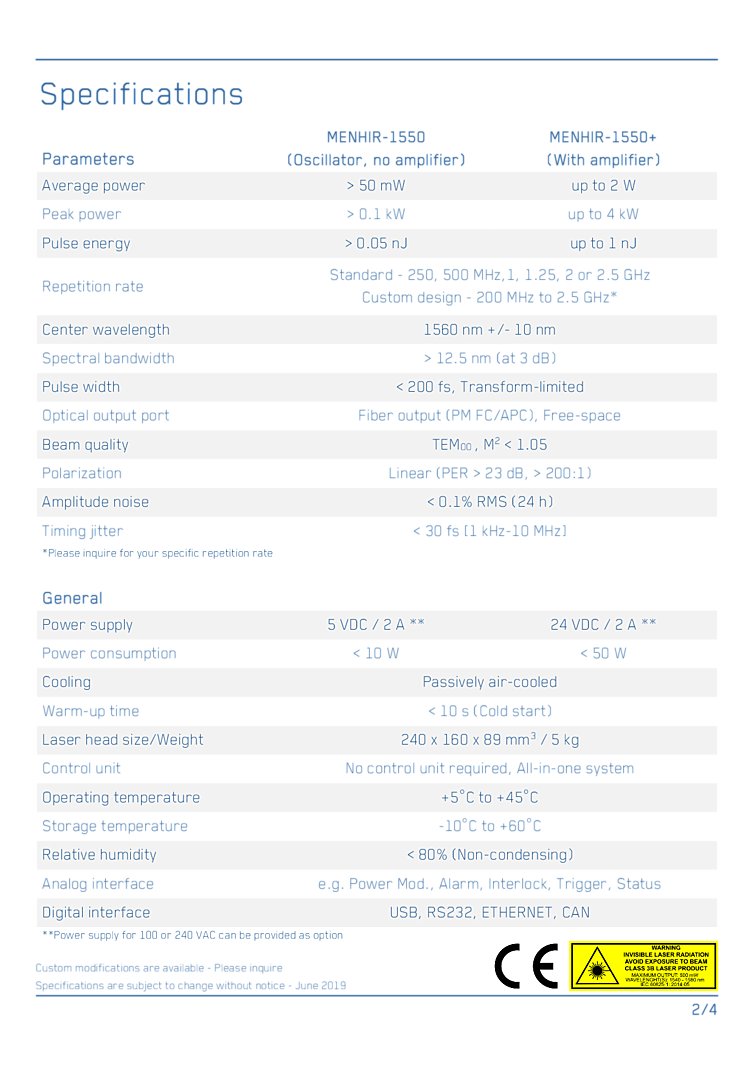

Typical Specifications:
- Wavelength: 1560 nm
- Repetition rate: up to 2.5 GHz
- Clean soliton pulses: ≤ 200 fs
- Spectral bandwidth: ≥ 12 nm
- Center wavelength: 1560 nm +/- 10 nm
- Average power: ≥ 50 mW up to 2 W
- Peak power: ≥ 0.1 kW up to 4 kW
- Pulse energy: ≥ 0.05 nJ up to 1 nJ
- TEM00-M2: < 1.05

Description:
These femtosecond laser sources are based on robust and well-engineered designs, offering an excellent reliability with the low-noise performance from soliton mode-locking. Robust, 24/7 operation, user-friendly and self-starting, the MENHIR-1550 series has been made to facilitate OEM integration and enable customers applications. The 1550 SERIES reaches unmatched levels of industrial quality and environmental stability. It has been excessively tested for vibrations, shocks and other external disturbances (space and aerospace related standard tests). For integration into space-critical applications, customized small-sized versions are available.
