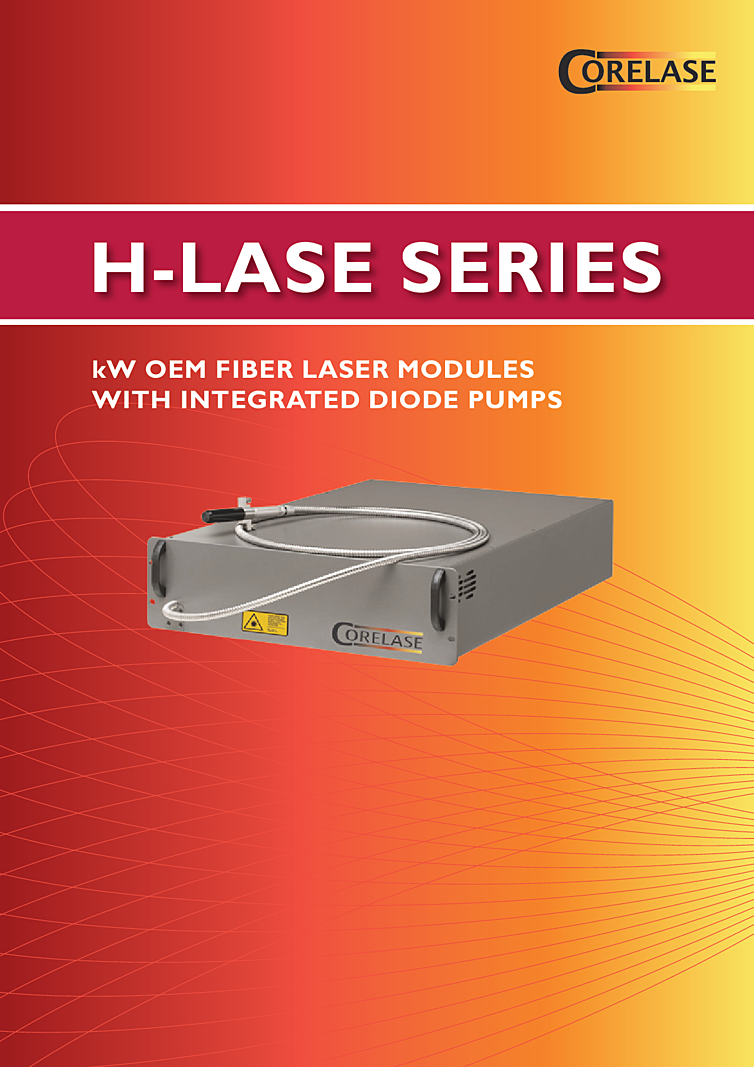

1070nm, 8kW CW Fiber Laser

COHERENT Model H-LASE Series
1070nm CW Fiber Laser
8kW Output Power
____________________________________________________________________

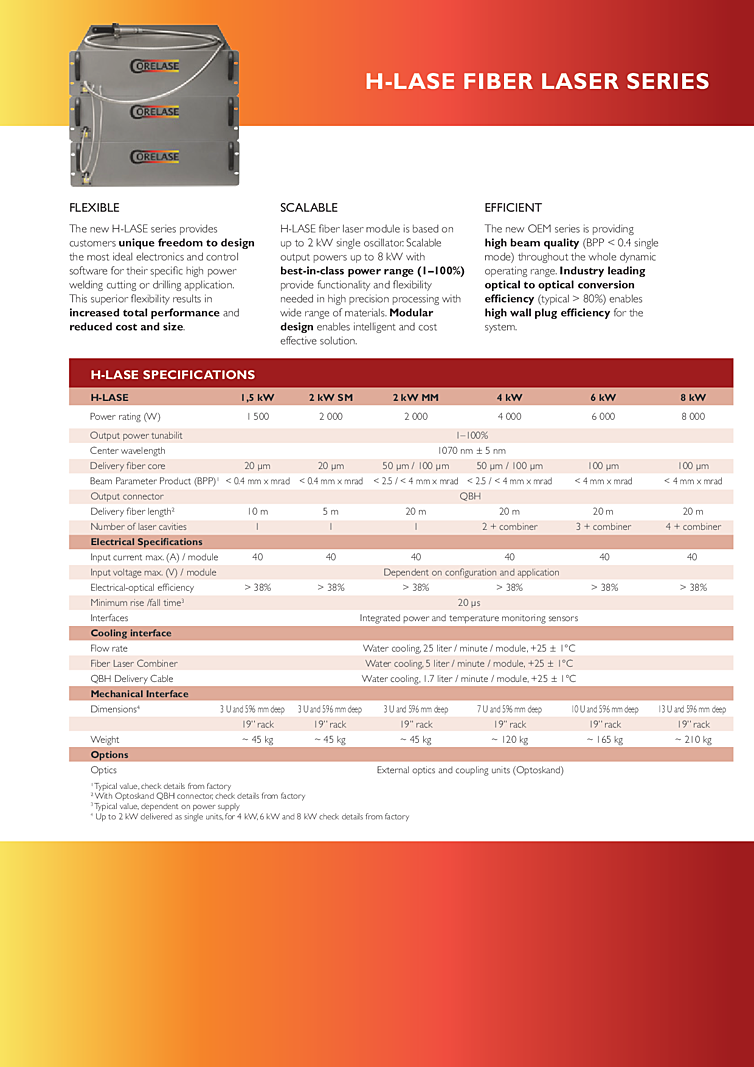

Typical Specifications:
- Wavelength: 1070 nm
- Maximum Output power: 8 kW
- Output Power Tunability: 1-100 %
- Delivery Fiber Core: 100 um
- Beam Parameter Product: <4mm x mrad

Description:

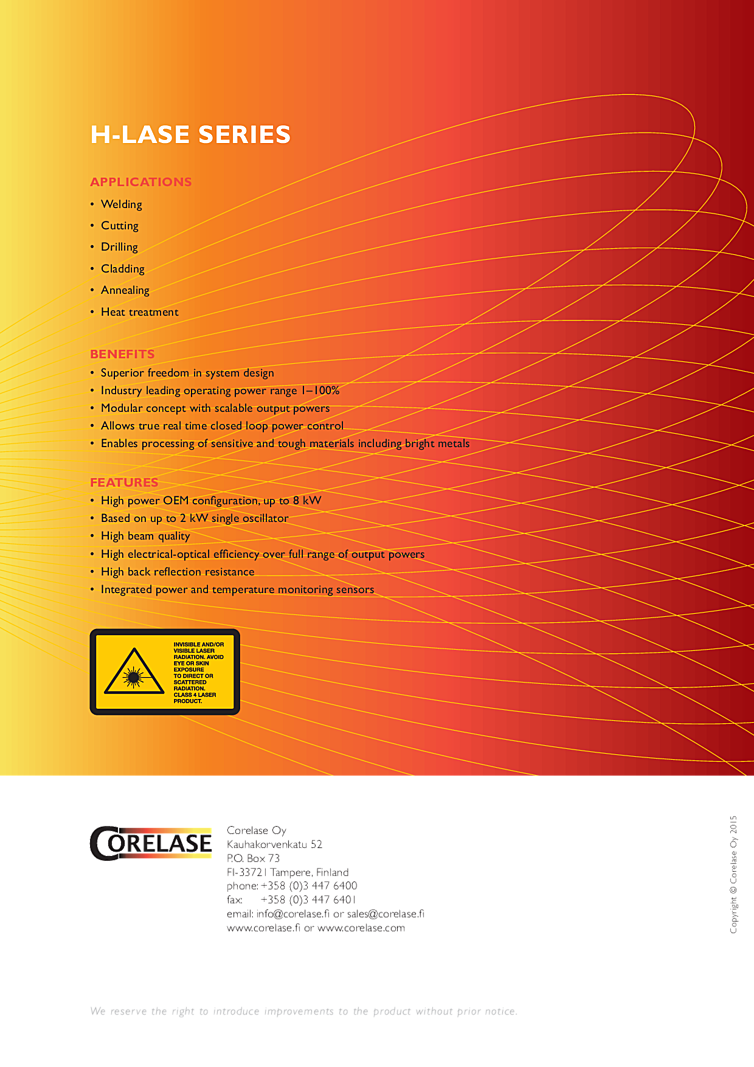

The H-LASE SERIES is used in a wide of applications like welding, cutting, drilling, cladding, annealing and heat treatment. As for the benefits, it includes, superior freedom in system design and industry leading operating power range of (1–100%), as well as a modular concept with scalable output powers. Moreover, it allows true real time closed loop power control and the ability to enable processing of sensitive and tough materials including bright metals.

As a scalable device, the H-LASE fiber laser module is based on up to 2 kW single oscillator, whose scalable output powers up to 8 kW with best-in-class power range of 1–100%. Indeed, this provides functionality and flexibility needed in high precision processing with wide range of materials. Moreover, the modular design enables intelligent and cost-effective solution. The device comes equipped with High power OEM configuration of up to 8 kW, high beam quality, high electrical-optical efficiency over full range of output powers, as well as high back reflection resistance. Moreover, it is based on up to 2 kW single oscillator and an integrated power as well as temperature monitoring sensors.
____________________________________________________________________
