532nm, 30µJ Picosecond Laser

COHERENT Lasers Talisker 1000 532-15
532nm Picosecond Laser
30µJ Pulse

Typical Specifications:
- Wavelength: 532 nm
- Average Output Power: >15 W at 1000 kHz
- Pulse Width: <15 ps

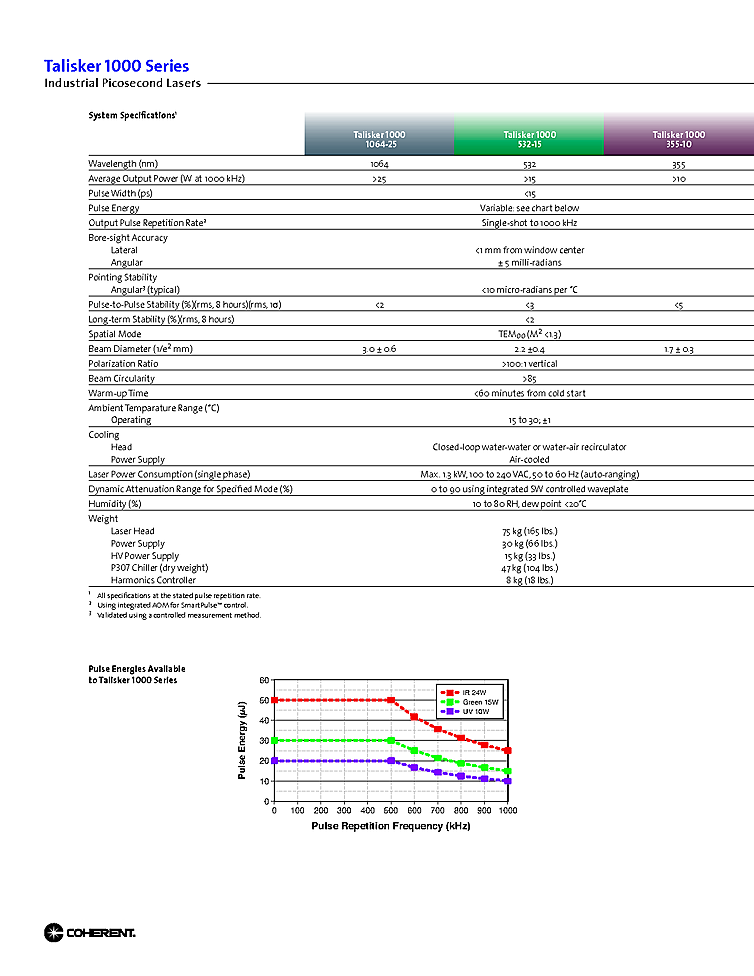

- Pulse Energy: Variable (refer to chart in )
- Output Pulse Repetition Rate: Single-shot to 1000 kHz
- Bore-sight Accuracy:
- Lateral: <1 mm from window center
- Angular: ± 5 milli-radians
- Pointing Stability (typical):
- Angular: <10 micro-radians per °C
- Pulse-to-Pulse Stability (%)(rms, 8 hours)(rms, 1σ): <3
- Long-term Stability (%)(rms, 8 hours): <2
- Spatial Mode: TEM00 (M2 <1.3)
- Beam Diameter (1/e2 mm): 2.2 ±0.4
- Polarization Ratio: >100:1 vertical
- Beam Circularity: >85

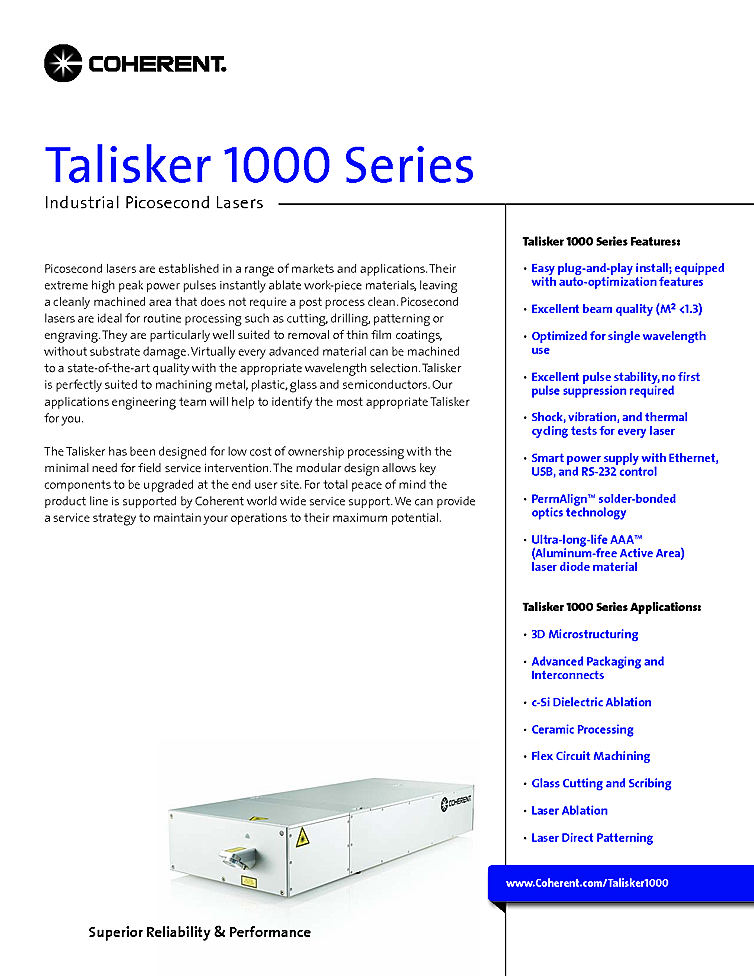

Description:
The laser was designed for application in 3D Micro-structuring, Advanced Packaging and Interconnects, c-Si Dielectric Ablation, Ceramic Processing, Flex Circuit Machining, Glass Cutting and Scribing, Laser Ablation and Laser Direct Patterning. Key features include easy plug-and-play install, excellent beam quality M2 <1.3, the laser has been optimized for single wavelength use at 532nm, excellent pulse stability with no first pulse suppression required, shock, vibration, and thermal cycling tests for every laser. The laser power supply includes Ethernet, USB, and RS-232 control. Coherent industrial laser with picosecond pulse output energy of 30µJ at a wavelength of 532nm.
