532nm, 3W Picosecond Pulsed Laser

Photonics Industries RGH-532-X
532nm Picosecond Laser
3W, 8W, 15W Output Power

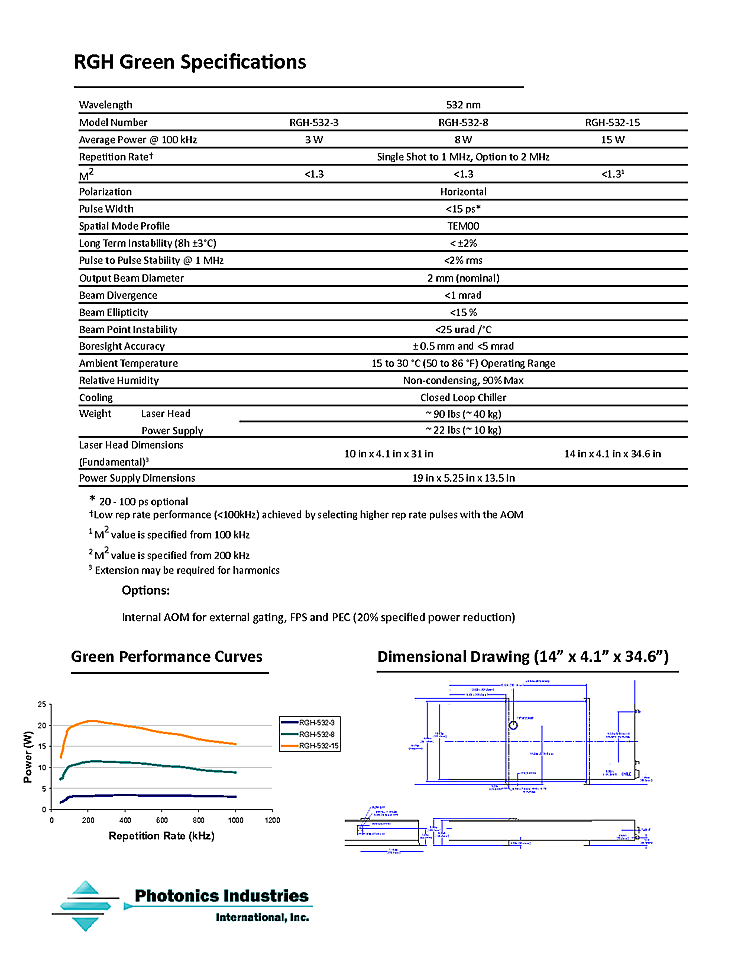

Typical Specifications:
- Average Power @ 100 kHz: 3 W, 8 W, 15 W
- Repetition Rate: Single Shot to 1 MHz, Option to 2 MHz
- M2: <1.3
- Polarization: Horizontal
- Pulse Width: <15 ps*
- Spatial Mode Profile: TEM00
- Long Term Instability (8h ±3°C): < ±2%
- Pulse to Pulse Stability @ 1 MHz: <2% rms
- Output Beam Diameter: 2 mm (nominal)
- Beam Divergence: <1 mrad
- Beam Ellipticity: <15%

Description:

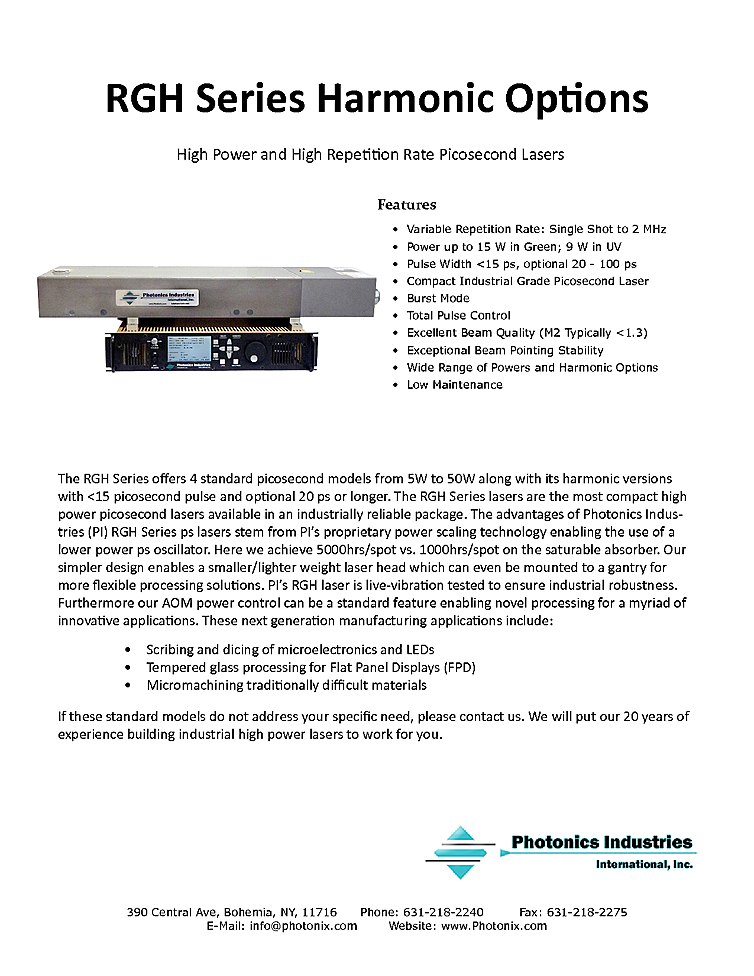

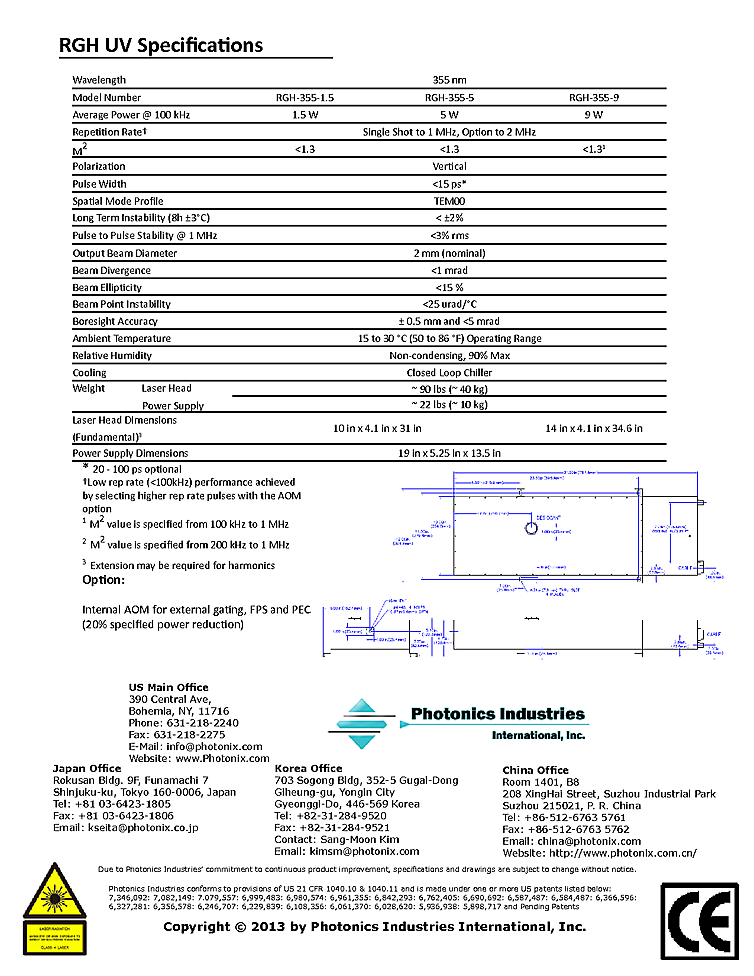

The RGH series comes either as a pulsed laser with a wavelength of 532 nm, or an ultra-violet Laser of 355 nm. Moreover, it can power up to 15 W in Green or 9 W in UV. Also, given that the RGH Series lasers are one of the most compact high-power picosecond lasers available, it is thus ideal suited for various applications including scribing, marking and micromachining. This is due to the fact that the RGH Series picosecond lasers stem from Photonics Industries proprietary power scaling technology that enables the use of a lower power picosecond oscillator.

To this end, this is why the RGH series can achieve 5000hrs/spot vs. 1000hrs/spot on a saturable absorber. Moreover, given that the compact nature of the devices, this simpler design can thus enable a smaller/lighter weight laser head which can even be mounted to a gantry for more flexible processing solutions.
