1064nm, 5nJ Picosecond Laser

Onefive Genki-10
1064nm Picosecond Laser
5nJ Pulse

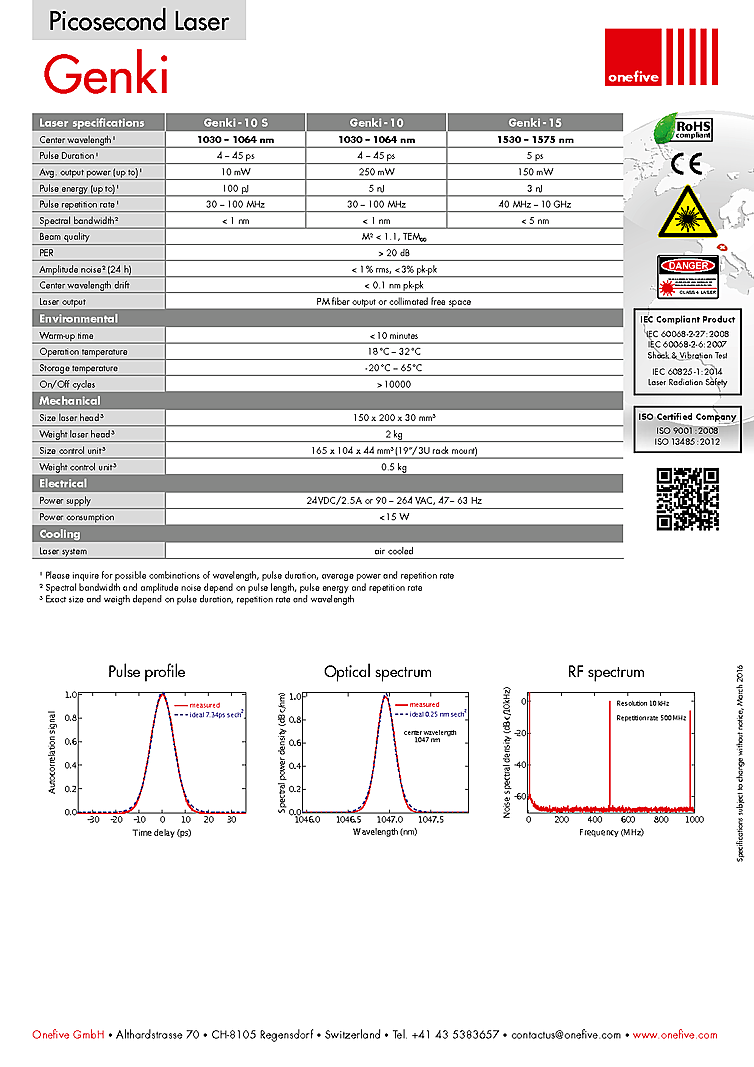

Typical Specifications:
- Center wavelength: 1030 – 1064 nm
- Pulse duration: 4 – 45 ps
- Average output power: 250 mW
- Pulse energy: 5 nJ
- Pulse repetition rate: 30 - 100 MHz
- Spectral bandwidth: <1 nm

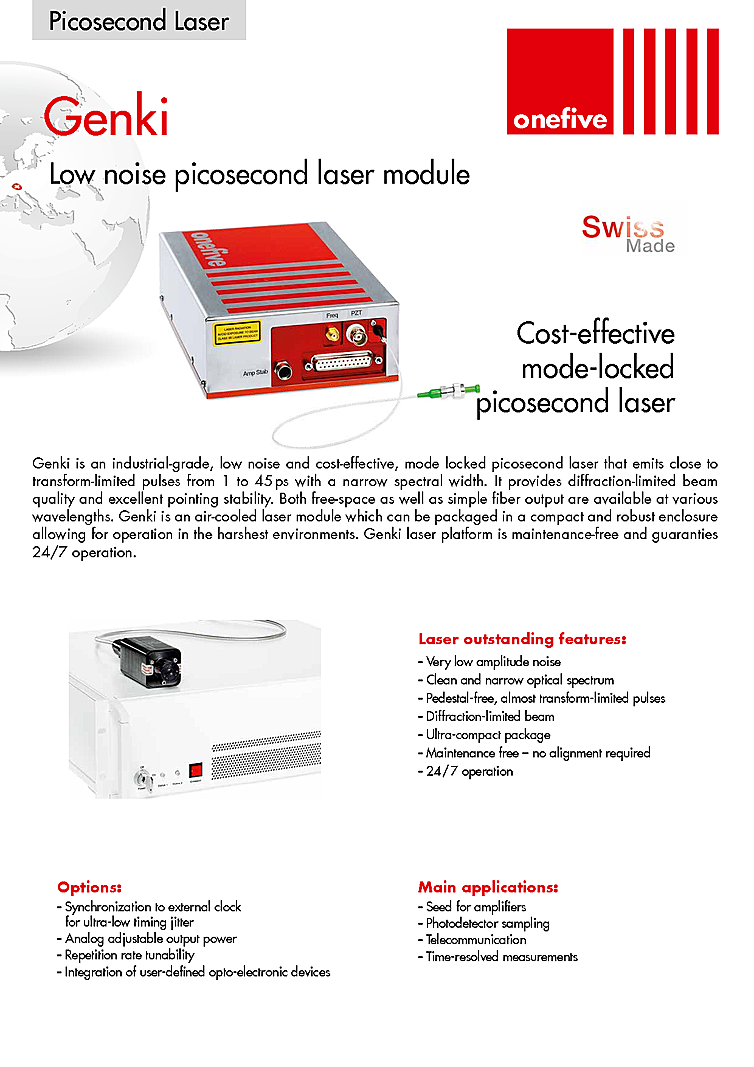

Description:
Picosecond laser module with low noise output from Onefive. Key features of the laser include Very low amplitude noise, Clean and narrow optical spectrum, Pedestal-free, almost transform-limited pulses and Diffraction-limited beam. The compact picosecond laser is ideal for industrial or scientific applications requiring 24/7 maintenance free operation; no alignment required. Applications for the laser include Seed for amplifiers, Photodetector sampling, Telecommunication and Time-resolved measurements. The Onefive laser has the additional options of Synchronization to external clock for ultra-low timing jitter; Analog adjustable output power, Repetition rate tunability, and Integration of user-defined opto-electronic devices. Mode-locked picosecond laser with output energy up to 5nJ at a 1064nm wavelength.
