1064nm, 50µJ Picosecond Laser

COHERENT Lasers Rapid NX
1064nm Picosecond Laser
50µJ Pulse

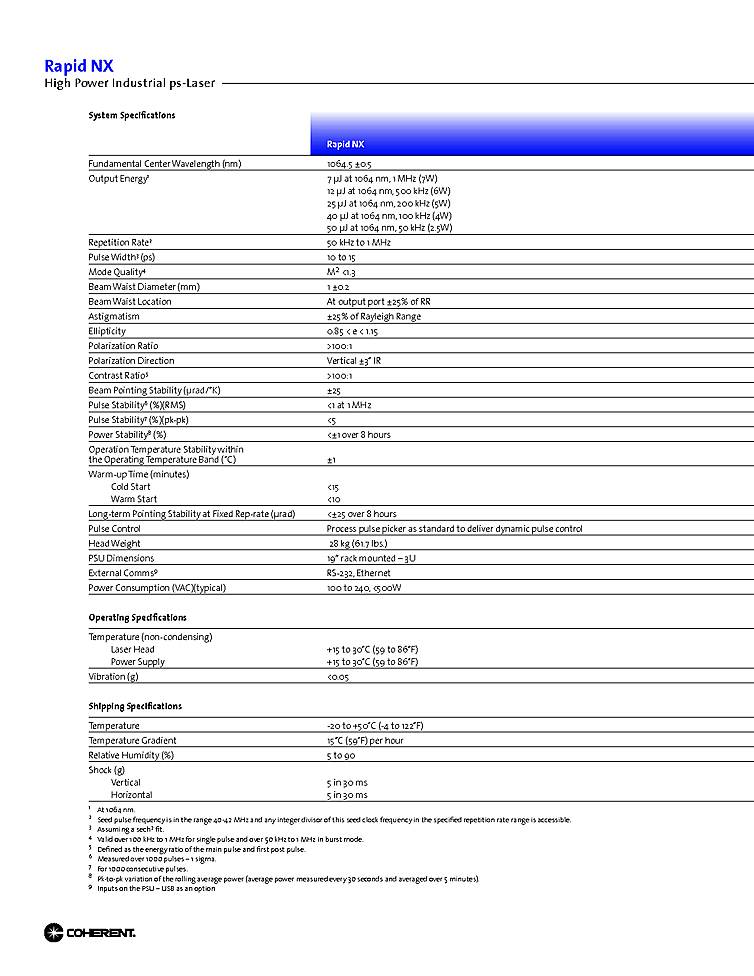

Typical Specifications:
- Wavelength: 1064 nm
- Polarization Ratio: >100:1
- Polarization Direction: Vertical ±3° IR
- Contrast Ratio: >100:1
- Beam Pointing Stability (μrad/°K): ±25
- Pulse Stability (%)(RMS): <1 at 1 MHz
- Pulse Stability (%)(pk-pk): <5
- Power Stability (%): <±1 over 8 hours

Description:
Coherent picosecond solid state laser with high energy output. The laser was designed for sophisticated marking, LED dicing, thin film removal, and small feature structuring. The short pulses facilitate non-thermal material processing thereby avoiding recast, micro-cracks, splatter of molten particles, delamination, and changes in material composition. Picosecond pulse width laser output from 10ps to 15ps at a pulse repetition intervals from 50kHz to 1MHz. Output energy ranges from 7μJ at 1 MHz to 50µJ at 50 kHz with average output powers from 7 watts to 2.5 watts. Coherent laser wavelength is 1064nm.
