1064nm, 500nJ Picosecond Laser

Onefive Genki-10 HP
1064nm Picosecond Laser
5nJ Pulse

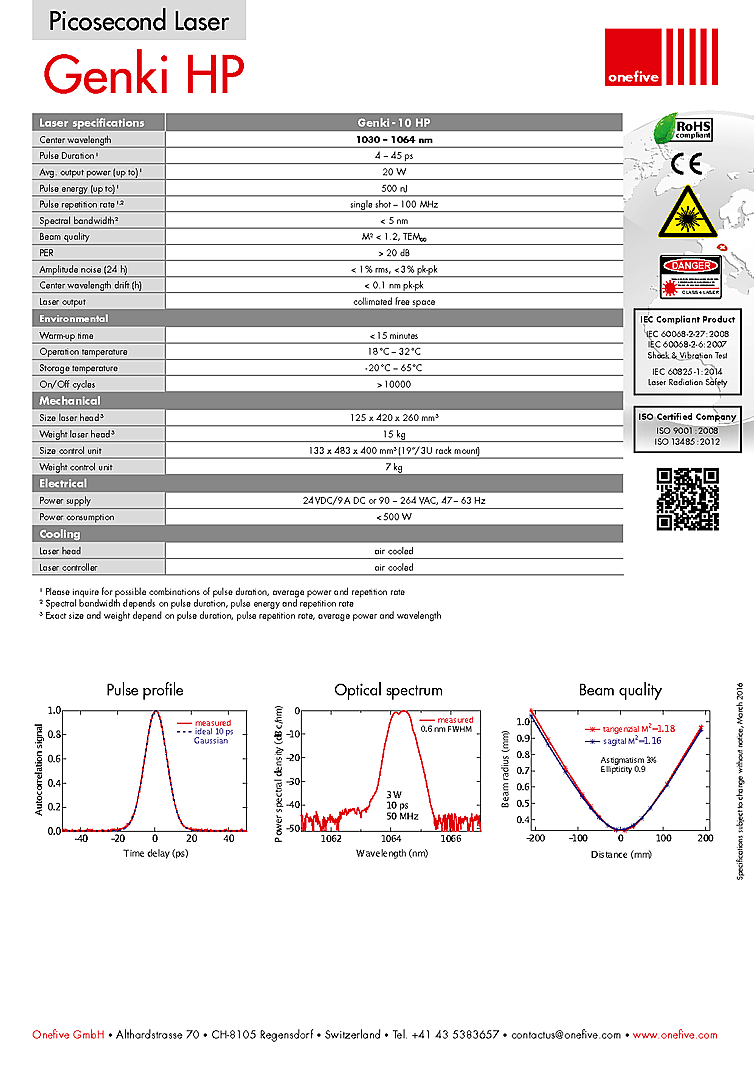

Typical Specifications:
- Center wavelength: 1030 – 1064 nm
- Pulse duration: 4 – 45 ps
- Output power (up to): 20 W
- Pulse energy (up to): 500 nJ
- Pulse repetition rate: single shot – 100 MHz
- Spectral bandwidth: < 5 nm
- Beam quality M2: < 1.2, TEM00, PER > 20 dB
- Amplitude noise (24 h): < 1 % rms, < 3 % pk-pk
- Center wavelength drift (h): < 0.1 nm pk-pk
- Laser output: collimated free space

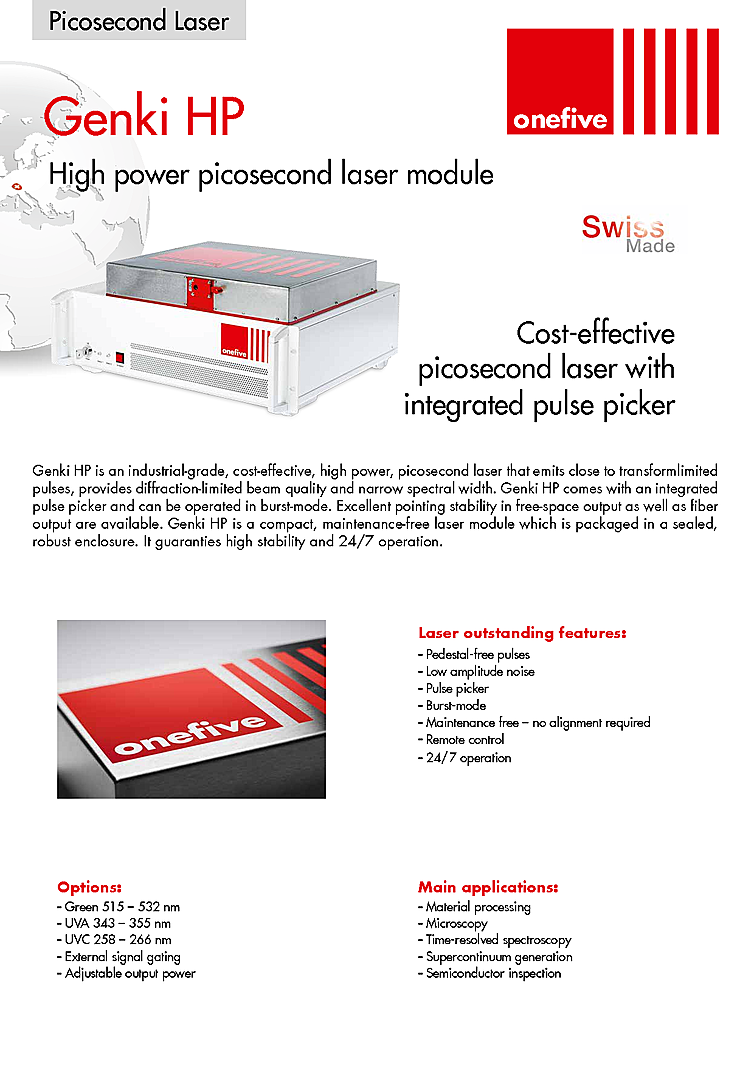

Description:
Genki HP is an industrial-grade, cost-effective, high power, picosecond laser that emits close to transform limited pulses, provides diffraction-limited beam quality, and narrow spectral width. It also comes with an integrated pulse picker and can be operated in burst-mode. It also has excellent pointing stability in free-space output as well as fiber output.

Accordingly, to guarantee high stability and 24/7 operation, the Genki HP is packaged in a sealed, robust enclosure. Moreover, to give clients a wide range of options, the Genki HP can be configured to suit a wide range of daily and practical applications like, external signal gating, an adjustable power output, an UVC 258 – 266 nm, an UVA 343 – 355 nm, as well as 515 – 532 nm Green.
