1064nm, 500µJ Picosecond Laser

Onefive Genki-10 XP
nm Picosecond Laser
Pulse

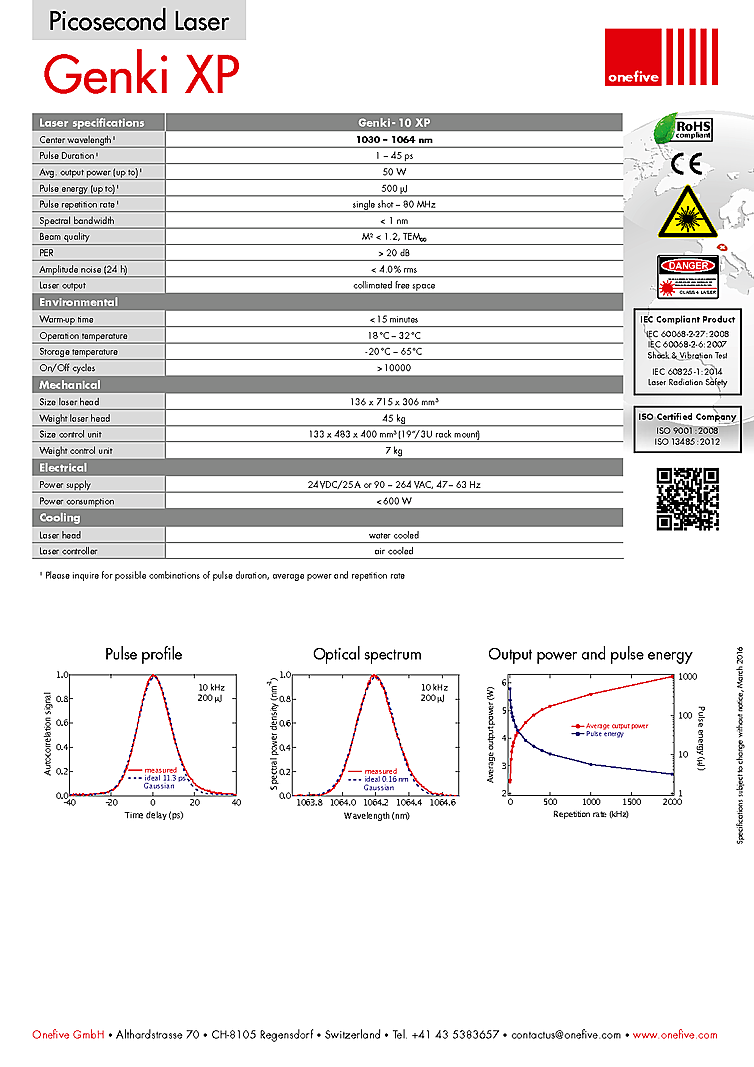

Typical Specifications:
- Center wavelength: 1030 – 1064 nm
- Pulse duration: 1 – 45 ps
- Average output power (up to): 50 W
- Pulse energy (up to): 500 μJ
- Pulse repetition rate: single shot – 80 MHz
- Spectral bandwidth: < 1 nm
- Beam quality: M2 < 1.2, TEM00, PER > 20 dB
- Amplitude noise (24 h): < 4.0 % rms
- Laser output: collimated free space

Description:

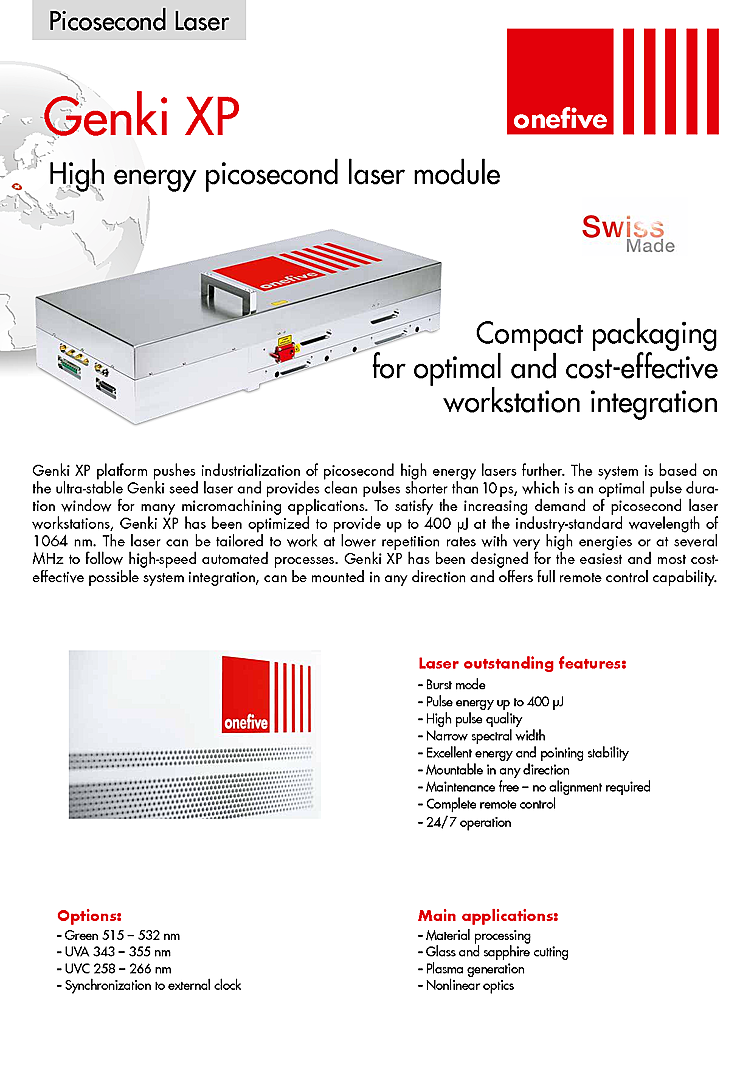

Picosecond laser with high energy output from Onefive. The laser was designed with the following key features Burst mode High pulse quality, Narrow spectral width, Excellent energy and pointing stability. For integration into applications the compact picosecond laser can be mounted in any direction and is designed for 24/7 maintenance free operation. The laser has a remote interface for complete control. Ideal applications for the picosecond laser include Material processing, Glass and sapphire cutting, Plasma generation and Nonlinear optics. Average output power is up to 50 watts. Picosecond laser with output energy up to 500µJ at a wavelength of 1064nm.
