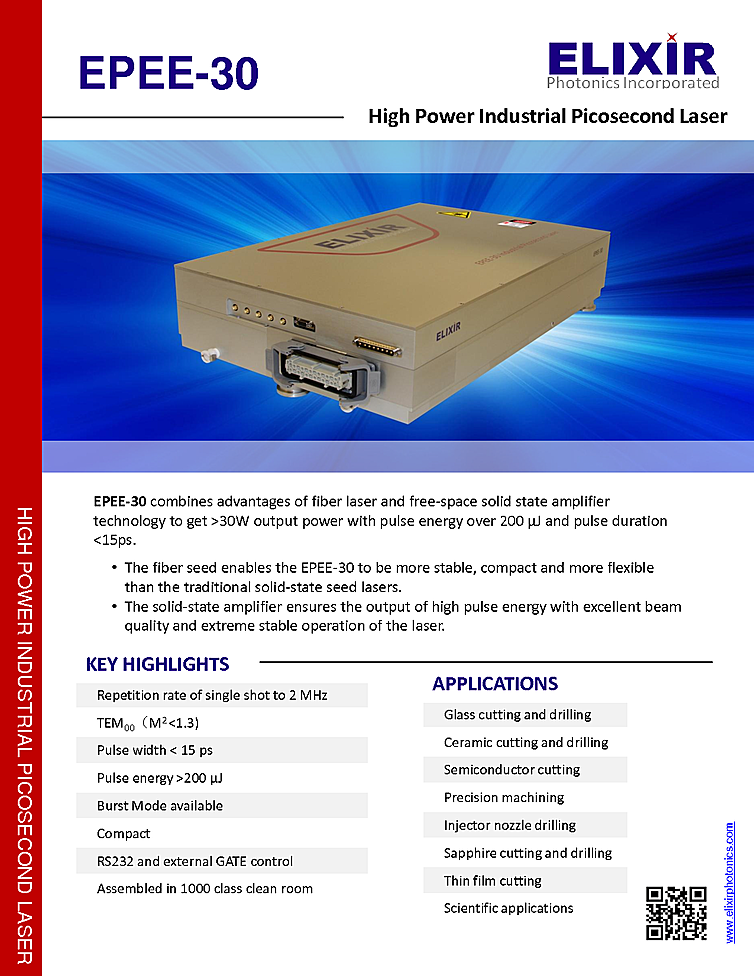

1064nm, 200µJ Picosecond Laser

Elixir Photonics EPEE-30
1064nm Picosecond Laser
200µJ Pulse

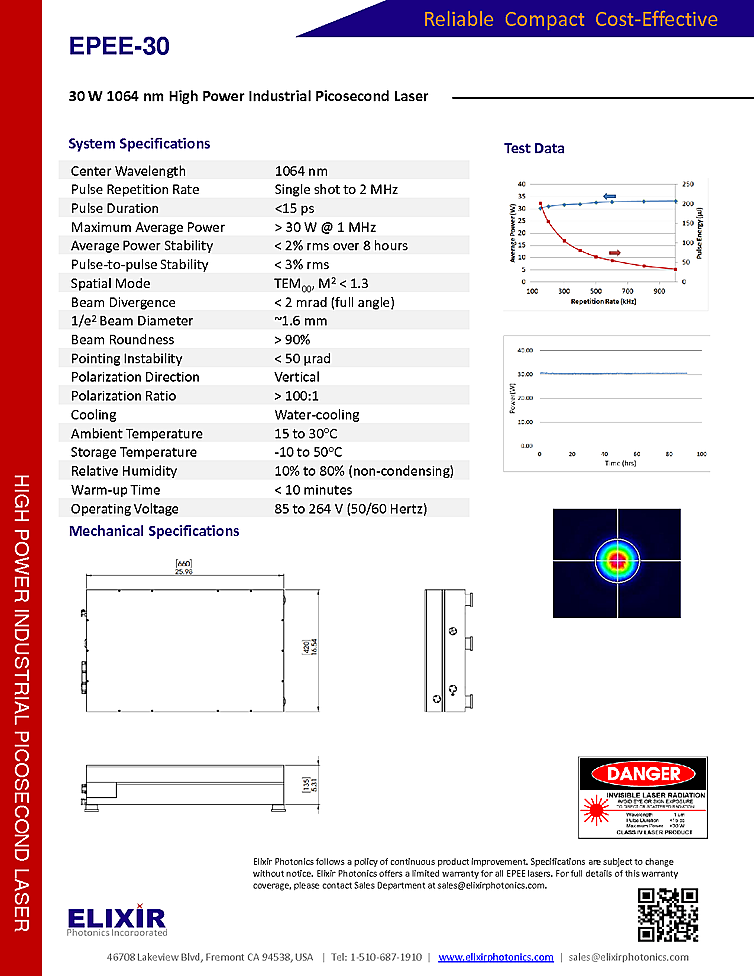

Typical Specifications:
- Center Wavelength: 1064 nm
- Pulse Repetition Rate: Single shot to 2 MHz
- Pulse Duration: <15 ps
- Maximum Average Power: > 30 W @ 1 MHz
- Average Power Stability: < 2% rms over 8 hours
- Pulse-to-pulse Stability: < 3% rms
- Spatial Mode: TEM00, M2 < 1.3
- Beam Divergence: < 2 mrad (full angle)
- 1/e2 Beam Diameter: ~1.6 mm
- Beam Roundness: > 90%
- Pointing Instability: < 50 μrad
- Polarization Direction: Vertical
- Polarization Ratio: > 100:1
- Cooling: Water-cooling

Applications:
- Glass cutting and drilling
- Ceramic cutting and drilling
- Semiconductor cutting
- Precision machining
- Injector nozzle drilling
- Sapphire cutting and drilling
- Thin film cutting
- Scientific applications

Description:
High power industrial picosecond laser from Elixir Photonics. Compact designed laser with RS-232 remote interface and external GATE control. Laser is assembled in 1000 class clean room and has beam quality of TEM00 with M2<1.3. Pulse width is less than 15ps with repetition rate of single shot to 2 MHz. Burst mode of operation is also available in the picosecond laser.
