1064nm, 180µJ Picosecond Laser

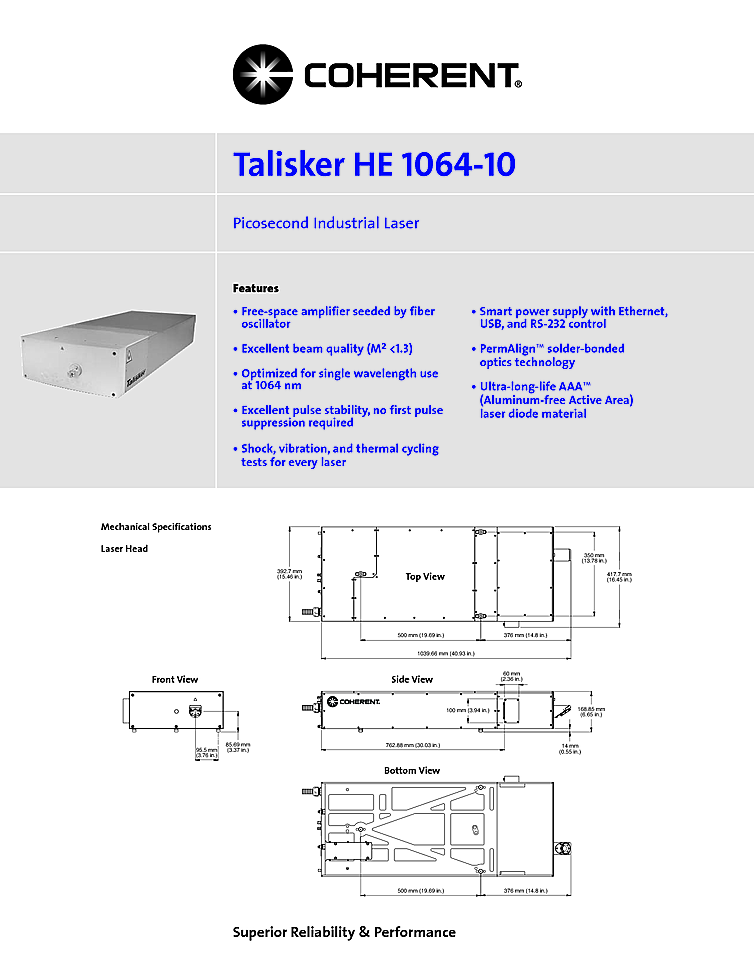

COHERENT Lasers Talisker HE 1064-10
1064nm Picosecond Laser
180µJ Pulse

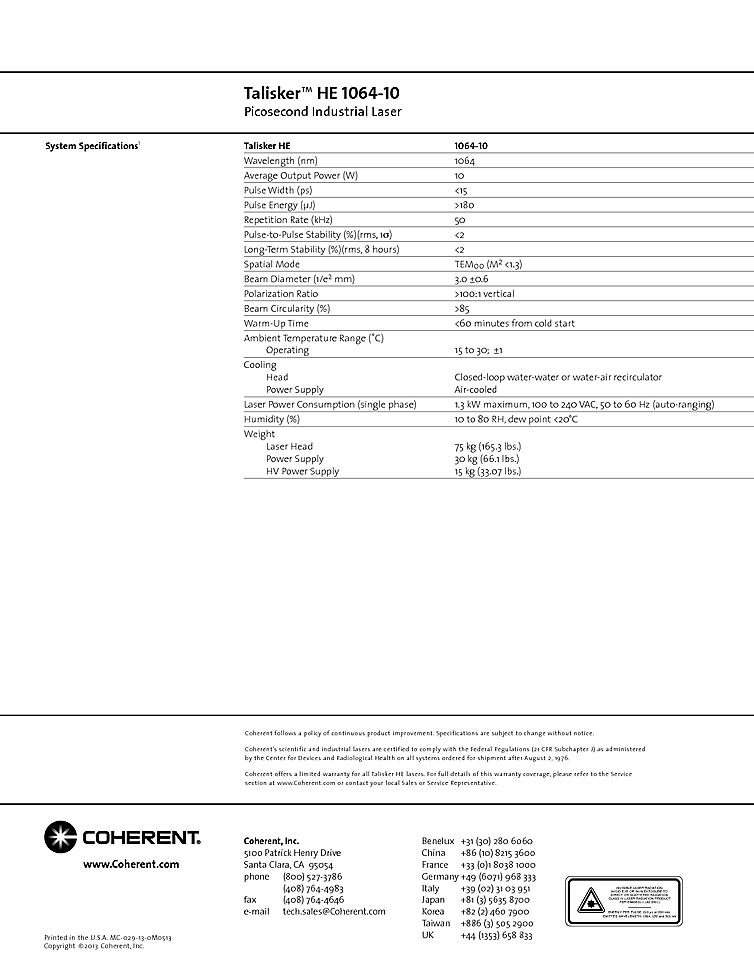

Typical Specifications:
- Wavelength (nm): 1064
- Average Output Power (W): 10
- Pulse Width (ps): <15
- Pulse Energy (μJ): >180
- Repetition Rate (kHz): 50
- Pulse-to-Pulse Stability (%)(rms, 1σ): <2
- Long-Term Stability (%)(rms, 8 hours): <2
- Spatial Mode: TEM00 (M2 <1.3)
- Beam Diameter (1/e2 mm): 3.0 ±0.6
- Polarization Ratio: >100:1 vertical
- Beam Circularity (%): >85
- Warm-Up Time: <60 minutes from cold start

Description:
Coherent picosecond laser designed for industrial applications. The picosecond laser uses a free-space amplifier which is seeded by a fiber oscillator. Laser was designed and is manufactured for long term reliability and performance by utilizing high quality laser diodes for source and requiring every laser be tested for shock, vibration, and thermal cycling. No first pulse suppression is required and excellent pulse stability of less then 2% over 8 hours of operation and pulse-to-pulse stability less than 2% RMS. Picosecond laser hs a beam quality of M2<1.3. For remote operation Coherent laser can be controlled with Ethernet, USB, or RS-232. Picosecond laser with a wavelength of 1064nm and energy of 180µJ.
