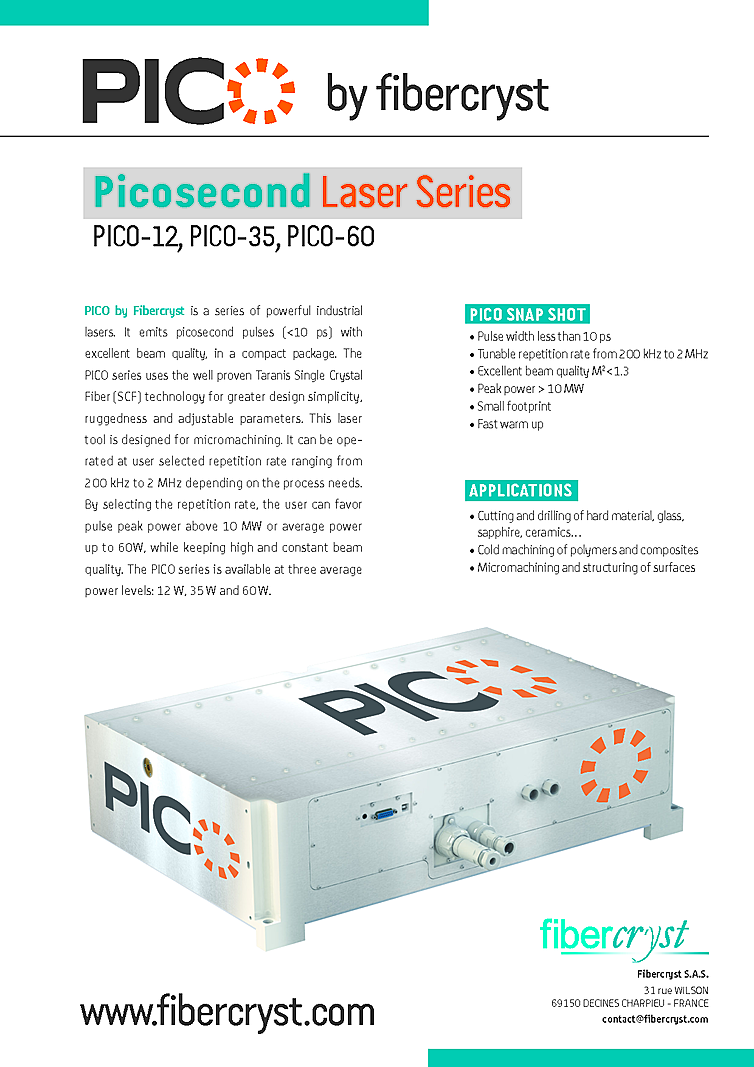

1030nm, 60W Picosecond Laser

Fibercryst SAS PICO-60
1030nm Picosecond Laser
60W Output Power

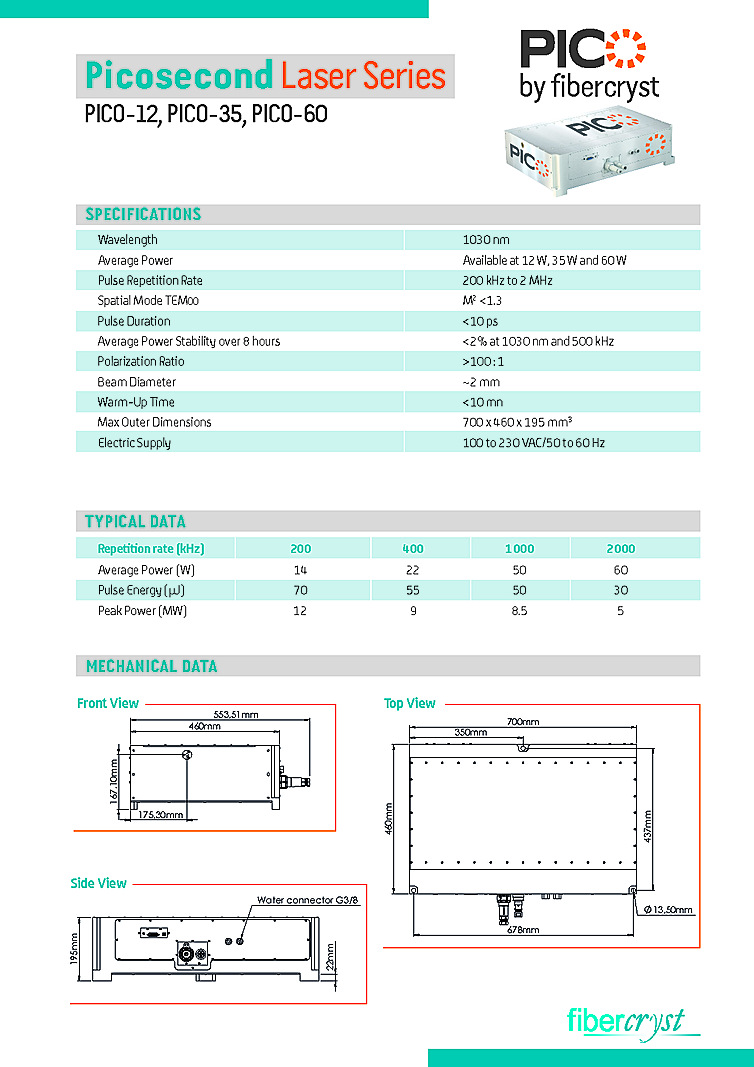

Typical Specifications:
- Wavelength: 1030 nm
- Average power: 60 W
- Pulse repetition rate: 200 kHz to 2 MHz
- Spatial Mode TEM00: M-squared < 1.3
- Pulse duration: <10 ps
- Average power stability over 8 hrs: <2 %
- Polarization ratio: > 100:1
- Beam diameter: ~2 mm
- Warm-up time: <10 mins

Description:
Picosecond laser from Fibercryst with average output powers up to 60 watts at a wavelength of 1030nm. Pulse duration is less then 10ps with a pulse repetition internal from 200kHz to 2MHz. The solid state laser features a fast warm up time and small footprint. Common applications are cutting and drilling of hard material, glass, sapphire, and ceramic; cold machining of polymers and composites; and micromachining and structuring of surfaces. By varying the repetition rate the picosecond laser can provide output energies from 70µJ to 30µJ from frequency of 200kHz to 1MHz respectively.
