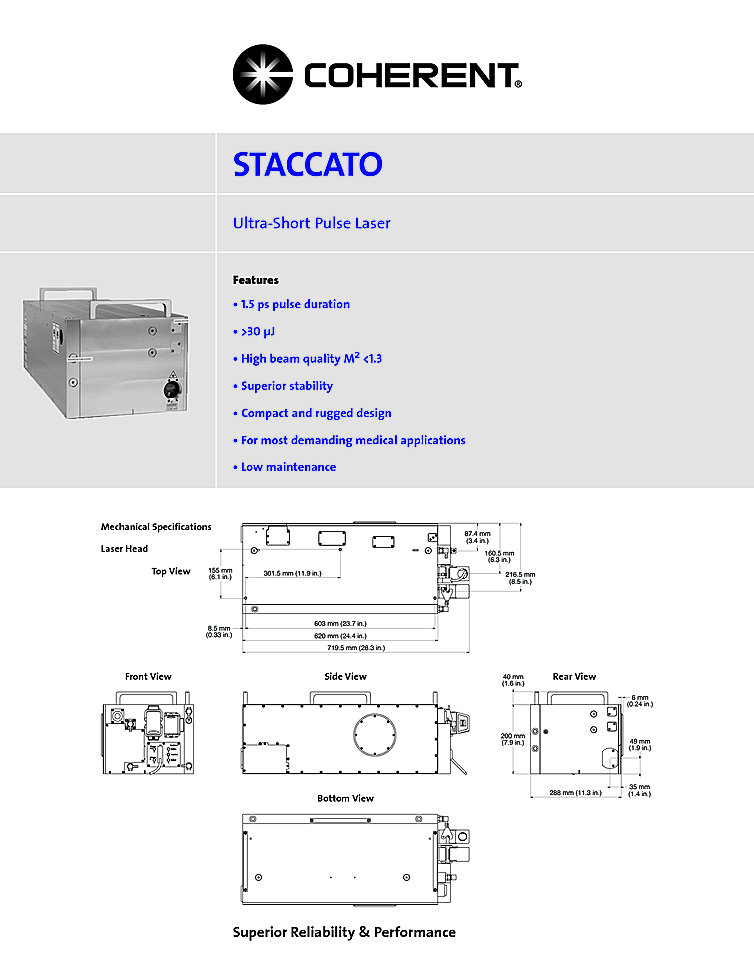

1030nm, 30µJ Picosecond Laser

COHERENT Lasers Staccato
1030nm Picosecond Laser
30µJ Pulse

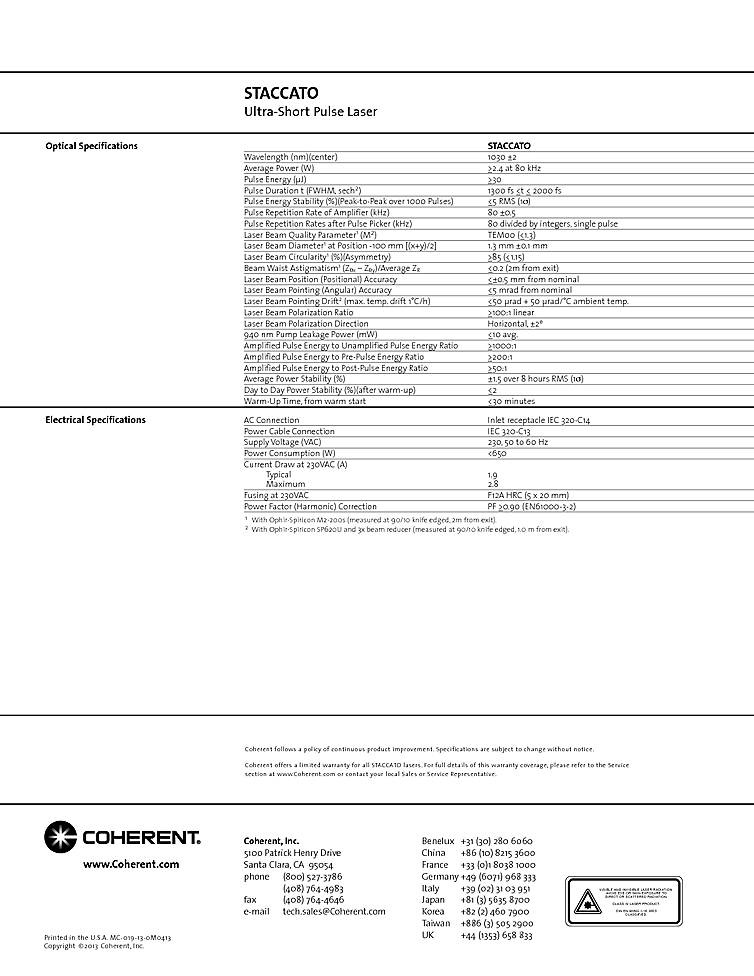

Typical Specifications:
- Maximum average power: 9 W
- Pulse energy: >30 μJ
- Beam quality M2: <1.3
- Fusing at 230VAC F12A HRC (5 x 20 mm)
- Power Factor (Harmonic) Correction PF >0.90 (EN61000-3-2)
- Visible and invisible laser radiation
- Avoid eye or skin exposure to direct or scattered radiation
- Class IV laser product
- DIN EN 60825-1/10.2003 classified

Description:
Picosecond laser in a compact and rugged design from Coherent. Average output power of 2.4 watts at a frequency of 80kHz. Ultra short pulse laser has a pulse duration of 1300fs to 2000fs at a pulse repetition rate of 80kHz. Laser Beam Quality Parameter M2<1.3 / TEM00 with a diameter of 1.3 mm. Laser is provides high stability in industrial applications with fast warmup time of 30 minutes, average power stability of +/-1.5% over 8 hours and day-to-day power stability of less then 2%. Pulse energy stability as measured over 1000 pulses peak to peak is less than 5%. Picosecond laser with pulse energy output of 30µJ at a wavelength of 1030nm.
