690nm-950nm, 4mJ Nanosecond Laser

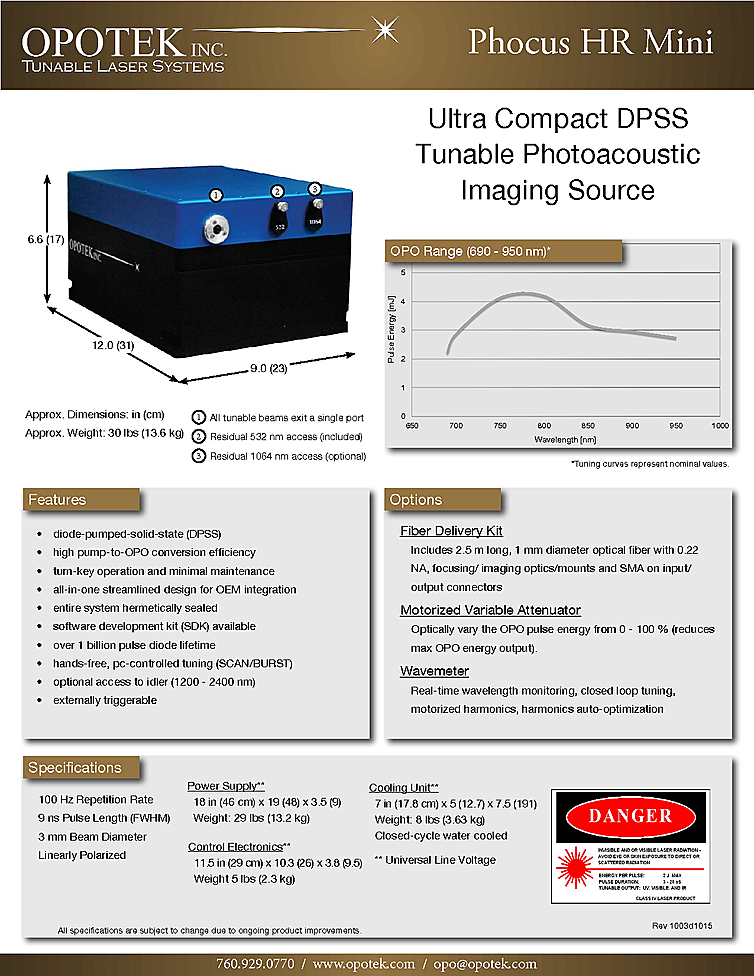

OPOTEK Inc. Phocus HR Mini
690nm-950nm Nanosecond Laser
4mJ Pulse

Typical Specifications:
- OPO Range (690 - 950 nm)*
- 100 Hz Repetition Rate
- 9 ns Pulse Length (FWHM)
- 3 mm Beam Diameter
- Linearly Polarized
- Approx. Dimensions: 6.6 x 12.0 x 9.0 in (17 x 31 x 23 cm)
- Approx. Weight: 30 lbs (13.6 kg)
- Residual 1064 nm access (optional)
- All tunable beams exit a single port

Description:
Tunable Photoacoustic Imaging laser from Opotek. Features compact diode-pumped solid state laser design for long term reliability. The all-in-one design is ideal for OEM integration and high end performance for laboratory environments. Hermetically sealed cavity and selection of reliability laser diode provides over 1 billion pulse lifetime. High pump-to-OPO conversion efficiency. External trigger and software development kit for easy integration into customer applications. Hands free control of SCAN and BURST tuning via a PC interface. Options for the tunable laser include optional access to idler (1200 - 2400 nm), fiber output, Motorized Variable Attenuator and integrated wave meter. Output energy for tuanable DPSS laser is up to 4mJ over a wavelength range of 690nm-950nm.
