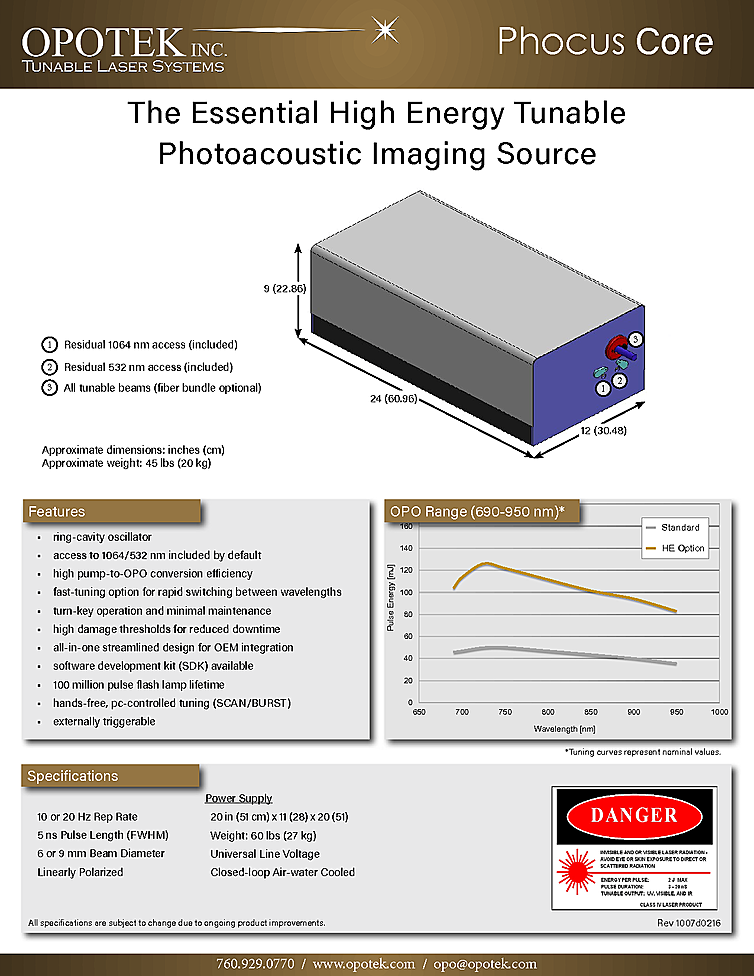

690nm-950nm, 120mJ Nanosecond Laser

OPOTEK Inc. Phocus Core
690nm-950nm Nanosecond Laser
120mJ Pulse

Typical Specifications:
- Rep Rate: 10 or 20 Hz
- Pulse Length (FWHM): 5 ns
- Beam Diameter: 6 or 9 mm
- Polarization: Linear
- OPO Range: 690-950 nm (tuning curves represent nominal values)
- Residual 1064 nm access (included)
- Residual 532 nm access (included)
- All tunable beams (fiber bundle optional)

Description:
Tunable nanosecond diode-pumped solid state laser from Opotek. Key features of the tunable laser include a ring-cavity oscillator, high pump-to-OPO conversion efficiency, high damage thresholds for reduced downtime. Tunable wavelength from 690-950nm and access to 1064nm and 532nm source as a default. For rapid switching between wavelengths the DPSS laser can be built with a fast-tuning option. For OEM integration the nanosecond laser includes turn-key operation and minimal maintenance is provided by a 100 million pulse flash lamp lifetime. The included software development kit features a hands-free pc controlled tuning for SCAN and Burst plus an external trigger. Output energy up to 120mJ.
