680nm-2400nm, 3mJ Nanosecond Laser

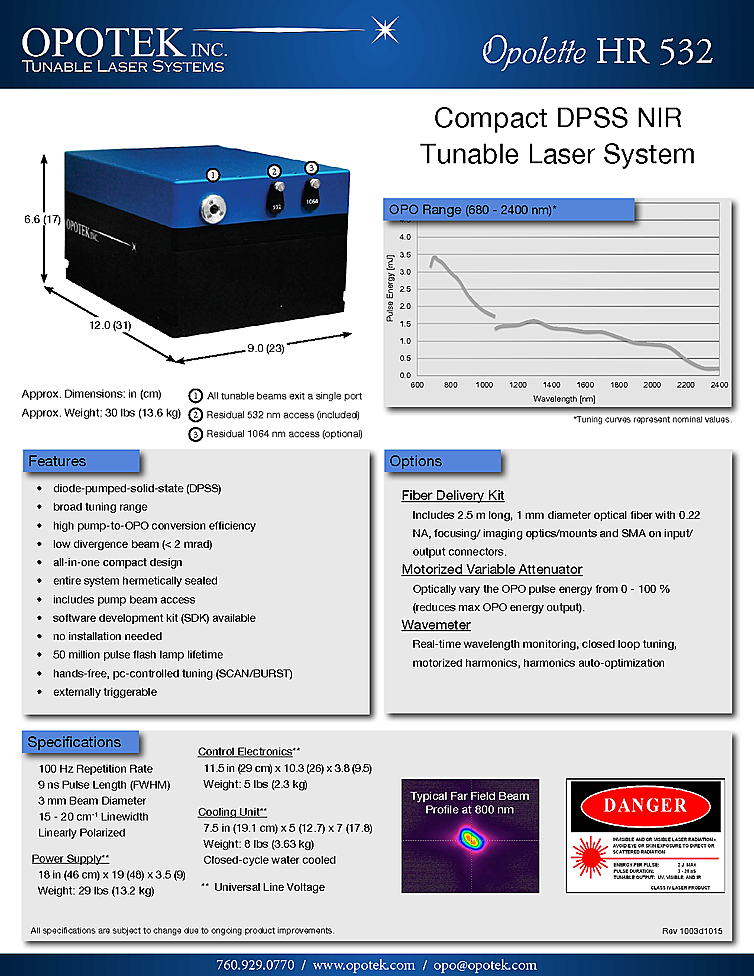

OPOTEK Inc. Opolette HR 532
680nm-2400nm Nanosecond Laser
3mJ Pulse

Typical Specifications:
- Diode-pumped-solid-state (DPSS)
- Broad tuning range
- High pump-to-OPO conversion efficiency
- Low divergence beam (< 2 mrad)
- All-in-one compact design
- Entire system hermetically sealed
- Includes pump beam access
- Software development kit (SDK) available
- No installation needed
- 50 million pulse flash lamp lifetime
- Hands-free, pc-controlled tuning (SCAN/BURST)
- Externally triggerable
- 100 Hz Repetition Rate
- 9 ns Pulse Length (FWHM)
- 3 mm Beam Diameter
- 15 - 20 cm-1 Linewidth
- Linearly Polarized

Description:
Compact diode-pump solid state NIR tunable laser system from Opotek. Careful attention to the design of the tunable DPSS laser provides high pump-to-OPO conversion efficiency in an all-in-one compact design. Nanosecond laser does not require installation and requires minimal maintenance with hermetically sealed laser system with expected lifetime of 50 million shots. To monitor performance the laser system provides access to the pump laser output. Software development kid is availability and provides hands free tuning of the SCAN and BURST via remote PC control also an external trigger can control the laser system. Broad wavelength tuning range of the nanosecond laser from 680nm-2400nm with output energy up to 3 mJ.
