532nm, 480µJ Nanosecond Laser

Photonics Industries Model DHS-532-48
532nm Nanosecond Laser
480µJ Pulse

Typical Specifications:
- Wavelength: 532 nm
- Average Power: 48 W @ 100 kHz
- Pulse Energy: ~0.35 mJ @ 100 kHz
- Repetition Rate: Up to 100 kHz

Description:

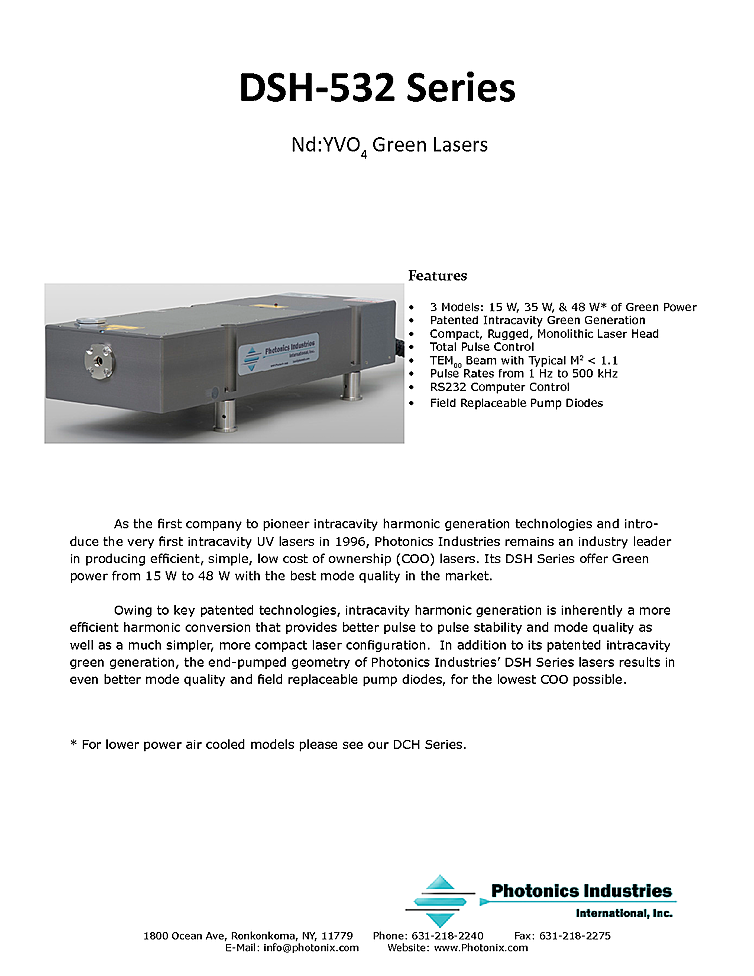

Nanosecond laser with high output power from Photonic Industries. Key features of the laser include Patented Intracavity Green Generation, Field Replaceable Pump Diodes, RS-232 Computer Control, and monolithic laser head is design is to be compact and rugged. Total pulse control of nanosecond laser with pulse rates from 1Hz to 500kHz with pulse duration of 40ns. Average output power up to 48 watts at 100kHz. With spatial mode of TEM00 and typical beam quality of M2<1.1 and divergence of less than 2.5mrad. Laser operation can also be triggered via a TTL input. Nanosecond laser energy output up to 480µJ with a wavelength of 532nm.
