532nm, 150µJ Nanosecond Laser

Photonics Industries Model DCH-532-6
nm Nanosecond Laser
Pulse

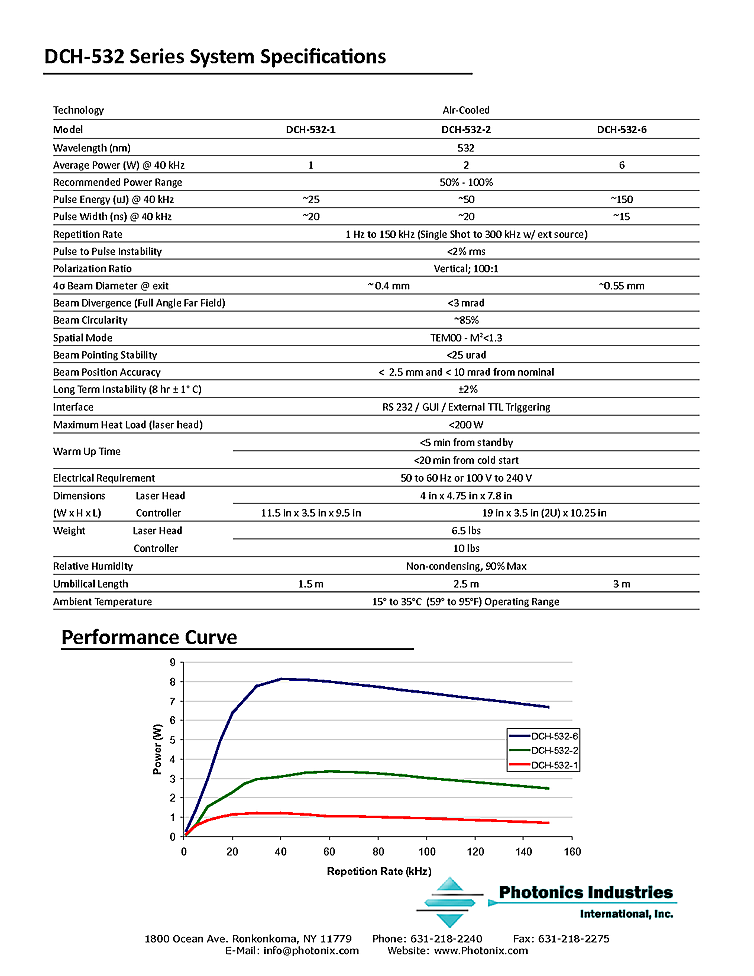

Typical Specifications:
- Technology: Air-Cooled
- Model: DCH-532-6
- Wavelength (nm): 532
- Average Power (W) @ 40 kHz: 6
- Recommended Power Range: 50% - 100%
- Pulse Energy (uJ) @ 40 kHz: ~150
- Pulse Width (ns) @ 40 kHz: ~15
- Repetition Rate: 1 Hz to 150 kHz (Single Shot to 300 kHz w/ ext source)
- Pulse to Pulse Instability: <2% rms
- Polarization Ratio: Vertical; 100:1
- 4σ Beam Diameter @ exit: ~0.55 mm
- Beam Divergence (Full Angle Far Field): <3 mrad
- Beam Circularity: ~85%
- Spatial Mode: TEM00 - M² <1.3
- Beam Pointing Stability: <25 urad

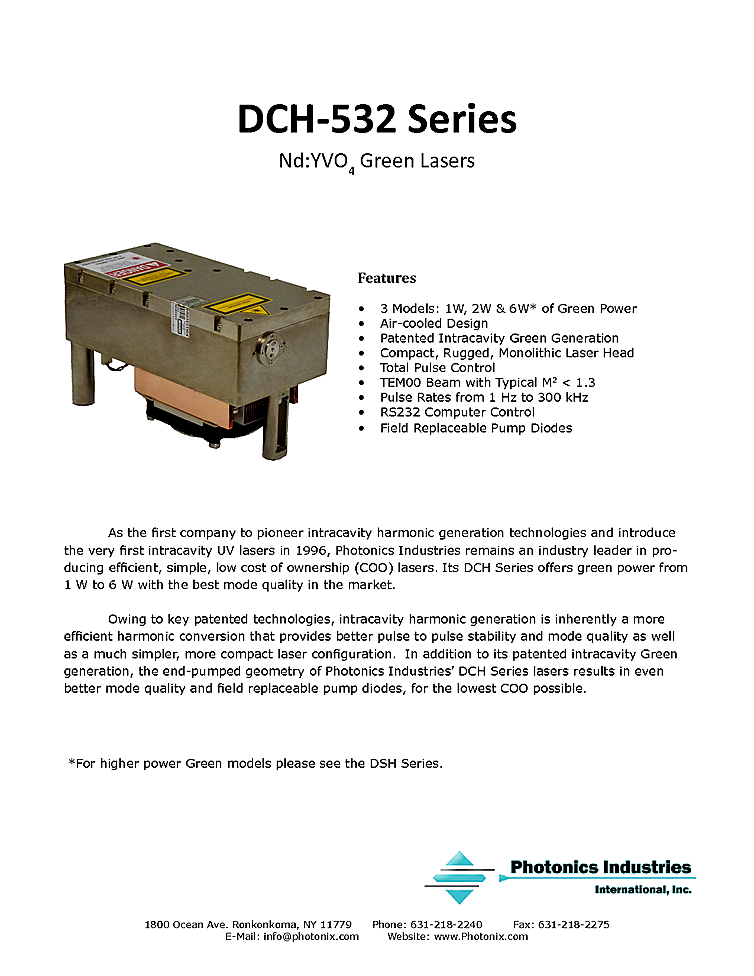

Description:
Nanosecond laser using Nd:YVO technology from Photonic Industries. Laser features Air-cooled Design, Field Replaceable Pump Diodes, Patented Intracavity Green Generation, Total Pulse Control, and Compact, Rugged, Monolithic Laser Head. Beam quality is M2<1.2 with spatial mode of TEM00. Nanosecond laser output can be adjusted form 1Hz to 300kHz with a pulse 20ns. Average power output is up to 6 watts. Long term instability up to +/-2% over 8 hours with temperature changes of ± 1° C. Laser parameters and adjustments to laser operation can be achieved via RS-232 Computer Control. Nanosecond laser output energy up to 150µJ at a wavelength of 532nm.
