527nm, 60mJ Nanosecond Laser

Continuum Terra PIV 527-100-M
527nm Nanosecond Laser
60mJ Pulse

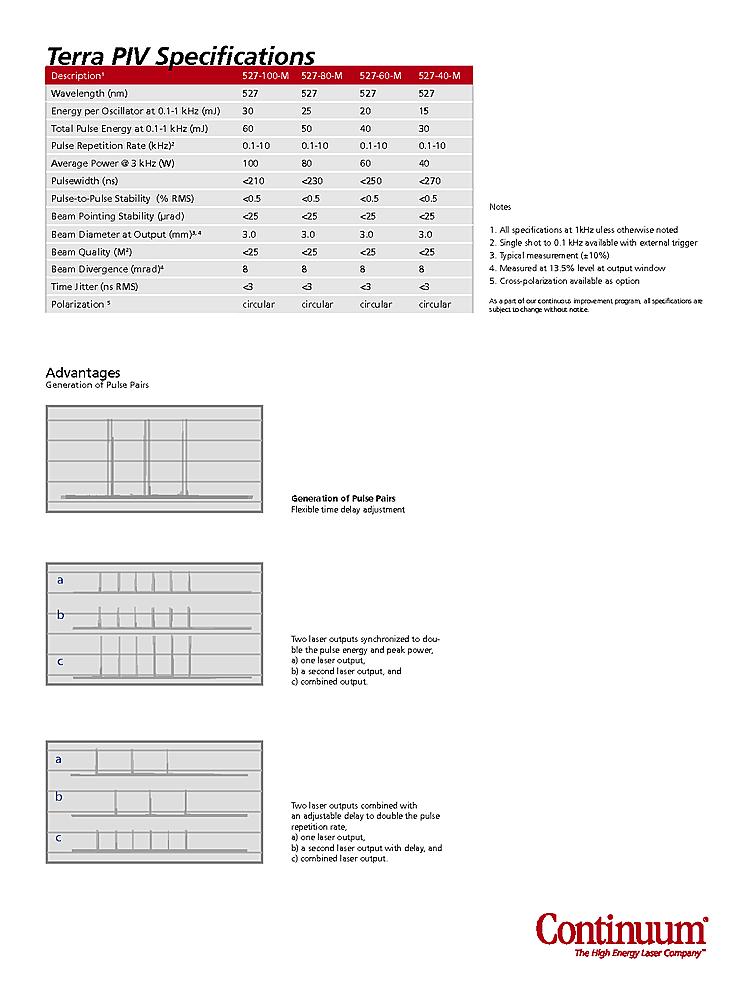

Typical Specifications:
- Wavelength (nm): 527
- Energy per Oscillator at 0.1-1 kHz (mJ): 30
- Total Pulse Energy at 0.1-1 kHz (mJ): 60
- Pulse Repetition Rate (kHz): 0.1-10
- Average Power @ 3 kHz (W): 100
- Pulsewidth (ns): <210
- Pulse-to-Pulse Stability (% RMS): <0

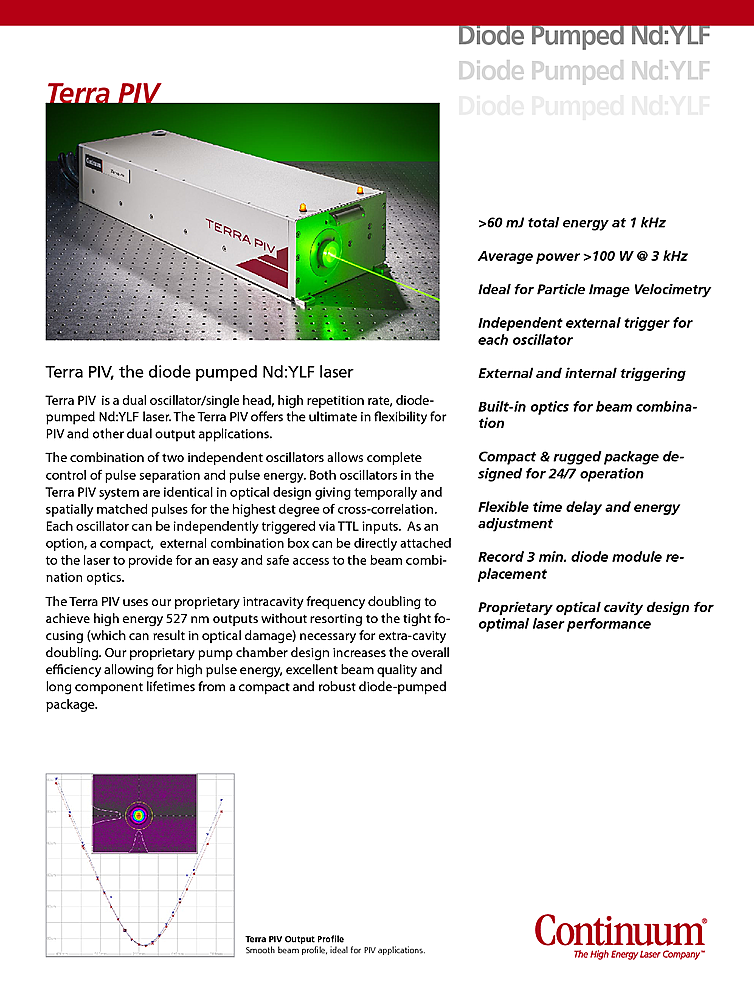

Description:
Continuum diode pumped nanosecond laser utilizing Nd:YLF laser medium. Key features of the nanosecond laser include average power greater than 100 W @ 3 kHz, independent external trigger for each oscillator and internal trigger, built-in optics for beam combination and Flexible time delay and energy adjustment. The compact laser was designed in rugged package for 24/7 operation with a 3 minute replacement time for the pump diode. The nanosecond laser is ideal for Particle Image Velocimetry. Output energy greater than 60mJ at a wavelength of 527nm.
