355nm, 300µJ Nanosecond Laser

Spectra-Physics Quasar 355-60
355nm Nanosecond Laser
300µJ Pulse

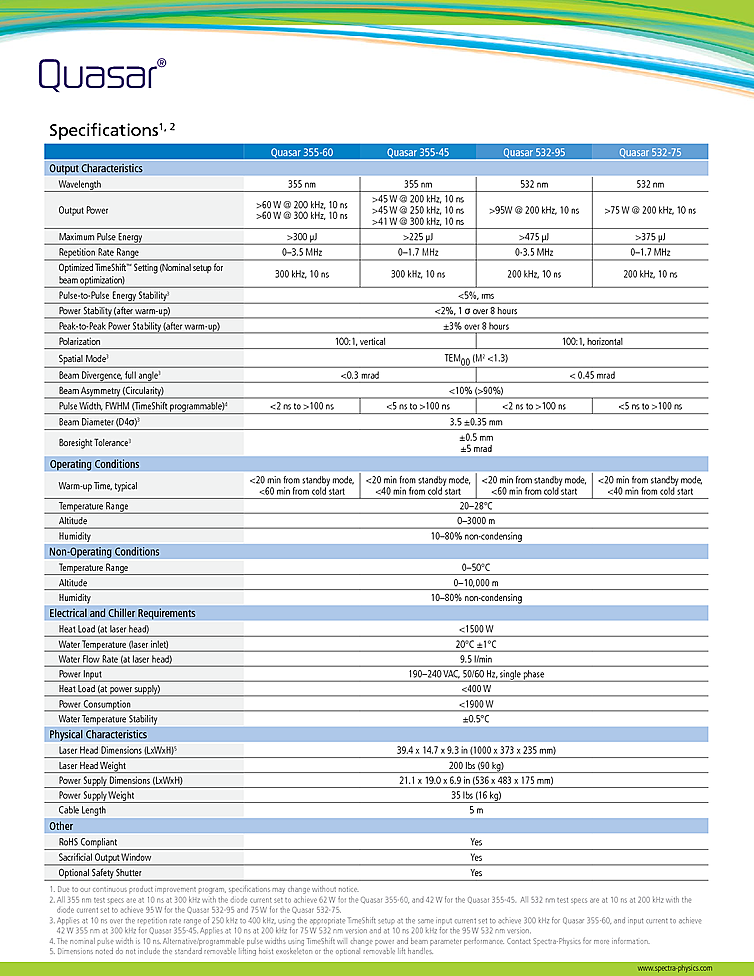

Typical Specifications:
- Wavelength: 355 nm
- Output Power:
- >60 W @ 200 kHz, 10 ns
- >60 W @ 300 kHz, 10 ns
- Maximum Pulse Energy: >300 μJ
- Repetition Rate Range: 0–3.5 MHz
- Pulse Widths: <2 ns to >100 ns

Description:

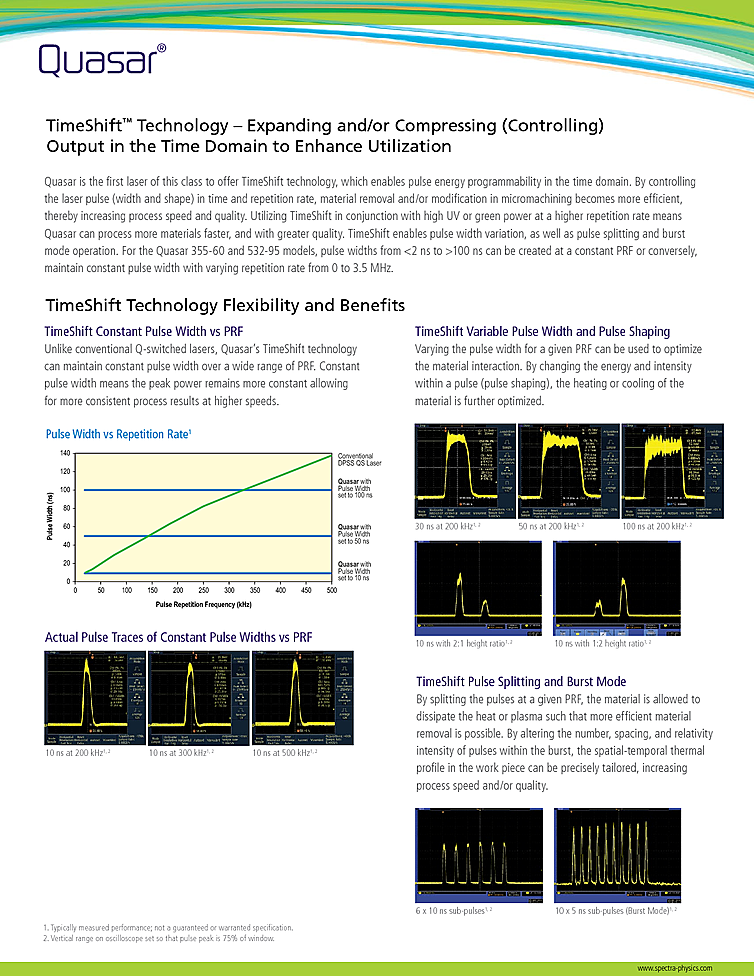

Spectra-Physics nanosecond laser features technology that allows for constant pulse width over wide range of pulse repetition frequencies, variable pulse width, pulse shaping, and pulse splitting and burst mode operation. For fast processing the nanosecond laser features high pulse repetition rate from 0 to 3.5MHz with pulse duration of 10ns. Spectra-Physics laser features data-logging for critical performance monitoring and diagnostics. Industrial design is robust and reliable for OEM tools. Output power is greater than 60 watts from 200kHz to 300kHz with a pulse duration of 10ns. Nanosecond laser output is 355nm with output energy up to 300µJ.
