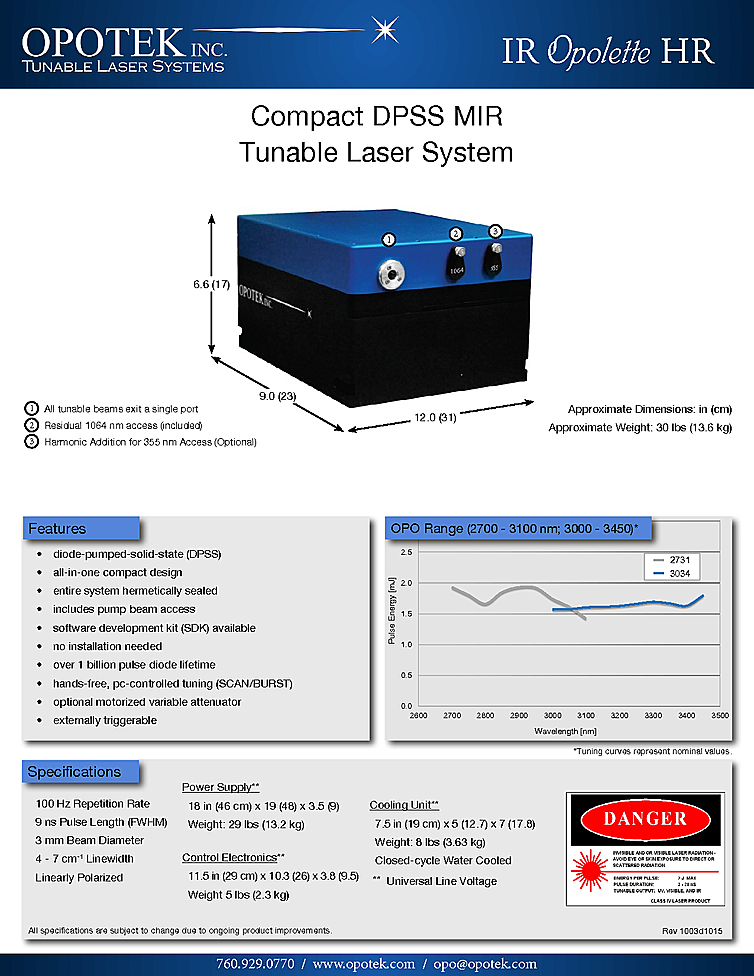

2700nm-3100nm, 2mJ Nanosecond Laser

OPOTEK Inc. IR Opolette HR
2700nm-3100nm Nanosecond Laser
2mJ Pulse

Typical Specifications:
- OPO Range: 2700 - 3100 nm; 3000 - 3450*
- Pulse Length: 9 ns (FWHM)
- Repetition Rate: 100 Hz
- Beam Diameter: 3 mm
- Linewidth: 4 - 7 cm-1
- Polarization: Linear
- Power Supply: Universal Line Voltage
- Cooling Unit: Closed-cycle Water Cooled
- Residual 1064 nm access (included)
- All tunable beams exit a single port

Description:
MIR Tunable Diode-pumped solid state laser from Opotek includes residual 1064nm wavelength access and optional 355nm wavelength. Designed for reliability by using an entire hermetically sealed system and over 1 billion pulse diode lifetime. Easy setup with compact all-in-one design software development kit and hands free PC controlled scan and burst tuning. Optional motorized variable attenuator. Tunable Mid-IR laser includes an external trigger for additional control. DPSS nanosecond laser features a 100 Hz repetition rate with a 9ns pulse length and 3 mm beam diameter. Linewidth is from 4-7 cm-1. MIR nanosecond laser with output energy up to 2 mJ and wavelength range of 2700nm to 3100nm.
