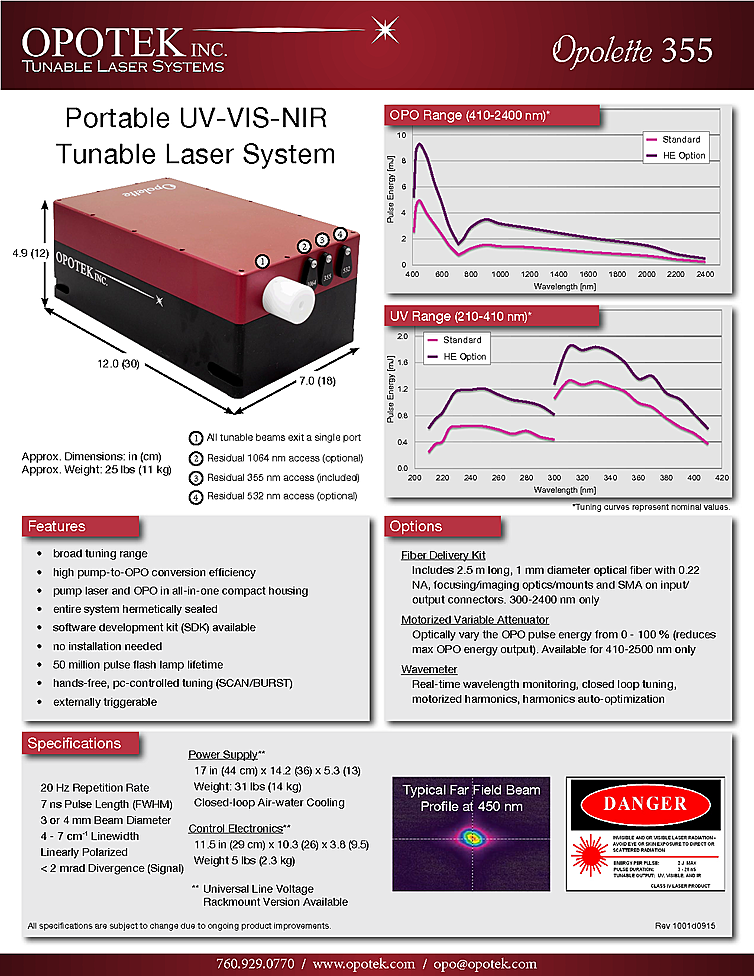

210nm-410nm, 1mJ Nanosecond Laser

OPOTEK Inc. Opolette 355
210nm-410nm Nanosecond Laser
1mJ Pulse

Typical Specifications:
- Broad tuning range
- High pump-to-OPO conversion efficiency
- Pump laser and OPO in all-in-one compact housing
- Entire system hermetically sealed
- Software development kit (SDK) available
- No installation needed
- 50 million pulse flash lamp lifetime
- Hands-free, PC-controlled tuning (SCAN/BURST)
- Externally triggerable
- 20 Hz repetition rate
- 7 ns pulse length (FWHM)

Description:
Tunable Opotek laser with 1mJ output and compact design. Pump laser and OPO in all-in-one compact housing for easy integration into scientific experiments or OEM applications. Options for DPSS laser include a Fiber Delivery Kit, Motorized Variable Attenuator, and Wavemeter. The fiber kit includes a 2.5m 1mm diameter NA 0.22 fiber plus focusing/imaging optics/mounts and SMA on input. The variable attenuator allows the user to vary the OPO pulse energy from 0-100%. The wavelength meter provides real time monitoring, closed loop tuning, motorized harmonics, and harmonics auto-optimization. Nanosecond tunable laser over a wavelength range of 210 nm to 410 nm.
