1064nm, 200mJ Nanosecond Laser

Quantel Laser Model
1064nm Nanosecond Laser
200mJ Pulse

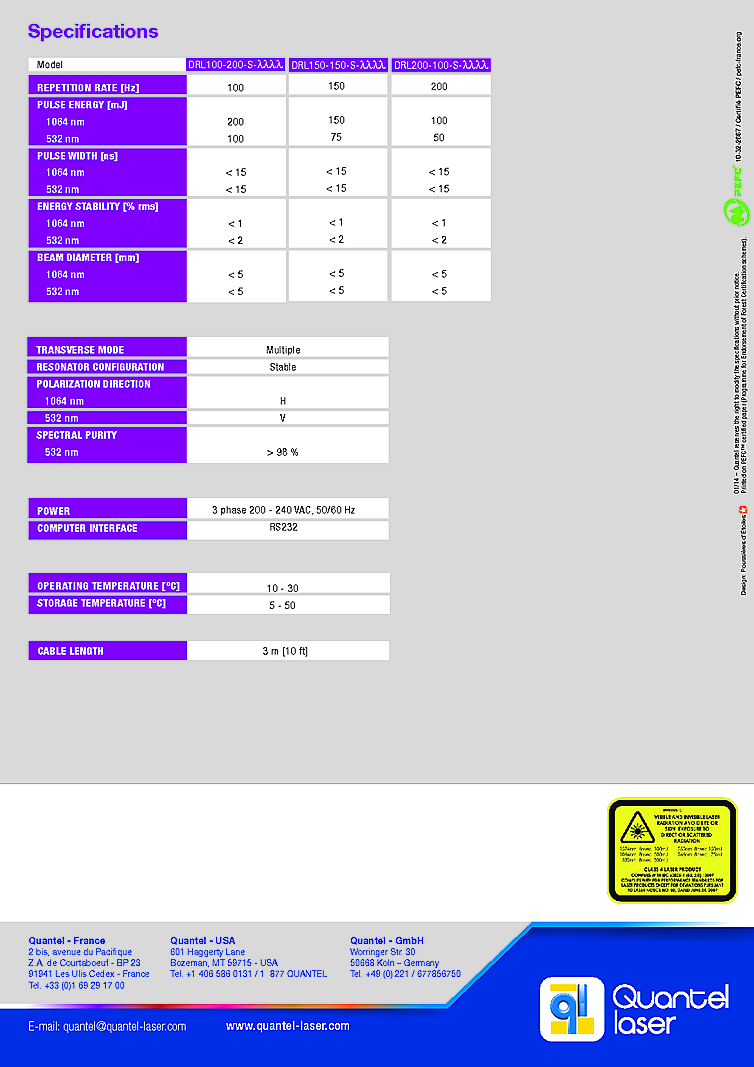

Typical Specifications:
- Available in IR and green versions
- Beam diameter: < 5 mm
- Energy stability: < 1 or < 2 % rms
- Pulse width: < 15 ns
- Pulse energy: 200 mJ
- Repetition rate: 100 Hz
- Multiple transverse mode
- Operating temperature: 10-30 °C
- Storage temperature: 5-50 °C
- Spectral purity: > 98 %

Description:

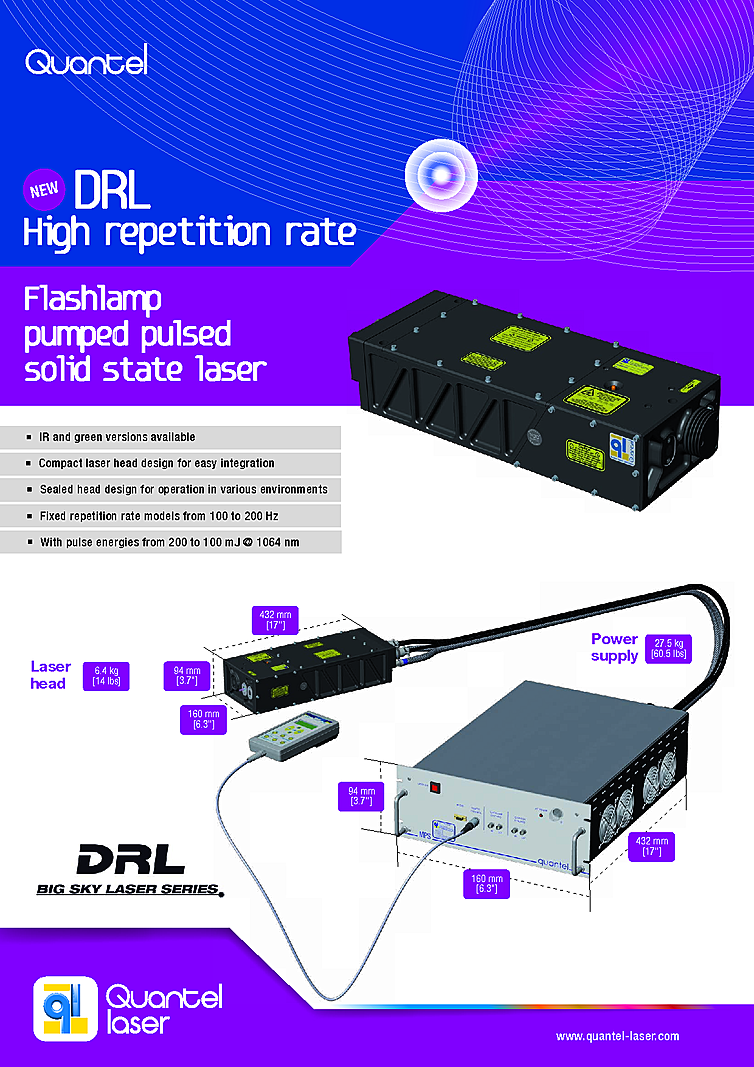

The DRL laser is a lamp pumped Nd: YAG laser based on 2 YAG rods pumped by 1 flash lamp each. This design enables a broad range of pulse energy and repetition rate combinations. To this end, two versions of power supplies are used to cover the whole range of repetition rates. Indeed, the DRL covers 20 – 200 Hz with pulse energies of 700 – 100 mJ at 1064 nm whereas the laser head is compact for easy integration and sealed to operate in various environments.

Moreover, it has a wide array of agile functionalities that include, quick umbilical disconnects, multimode resonators, 100 million shots lamp lifetime guaranteed, as well as sealed laser head to operate in various environments. Finally, despite its compactness, the device comes in a wide range of wavelengths you can choose from namely; 1064, 532 and 355 nm.
