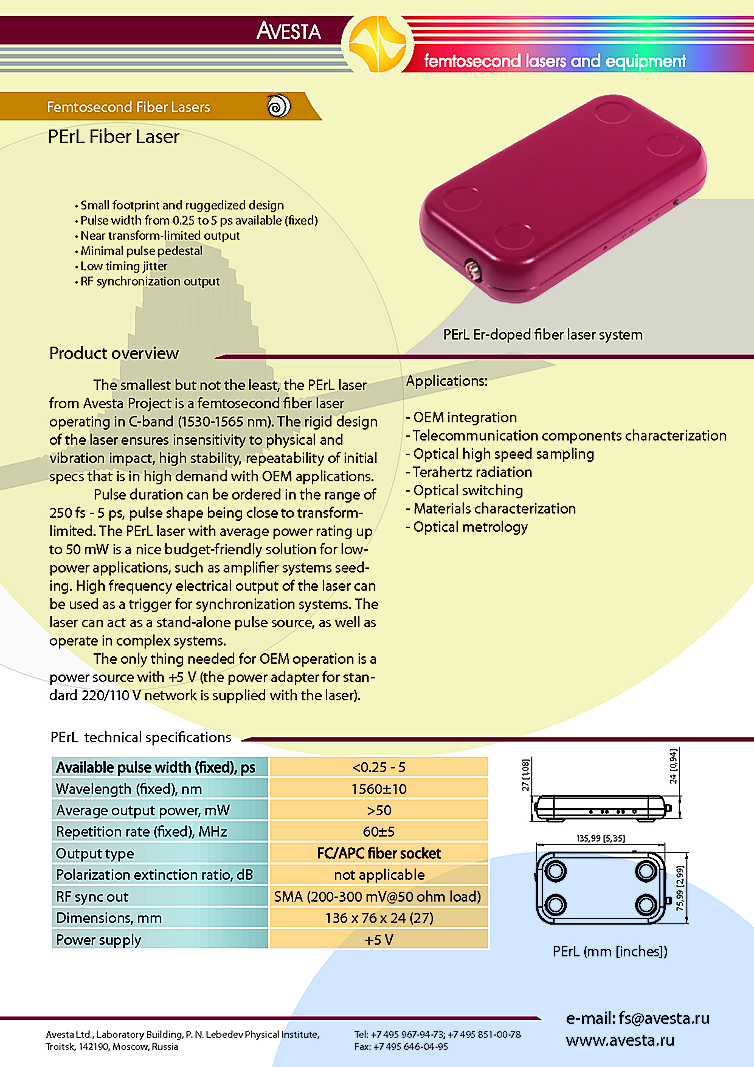

1560nm, 50mW Picosecond Laser

Avesta Lasers PErL Fiber Laser
1560nm Picosecond Laser
50mW Output Power

Typical Specifications:
- Wavelength (fixed): 1560±10 nm
- Pulse width: 0.25 - 5 ps
- Average output power: >50 mW
- Repetition rate (fixed): 60±5 MHz
- Output type: not applicable
- Polarization extinction ratio: not applicable
- RF sync out: SMA (200-300 mV@50 ohm load)
- Dimensions: 136 x 76 x 24 (27) mm
- Power supply: +5 V

Description:
Fiber laser system with picosecond pulse output in small rugged package from Avesta Laser. Fixed pulse width from 0.25ps to 5ps with a pulse repetition interval of 60Mhz. Other key feature are near transform-limited output, minimal pulse pedestal, low timing jitter and RF synchronization output. Fiber laser system was designed for applications in OEM integration, Telecommunication components characterization, Optical high speed sampling, Terahertz radiation, Optical switching, Materials characterization, and Optical metrology. Picosecond fiber laser output of 50mW at a wavelength of 1560nm.
