1064nm, 20µJ Picosecond Laser

Coherent-Rofin Powerline Pico 10-1064
1064nm Picosecond Laser
20µJ Pulse

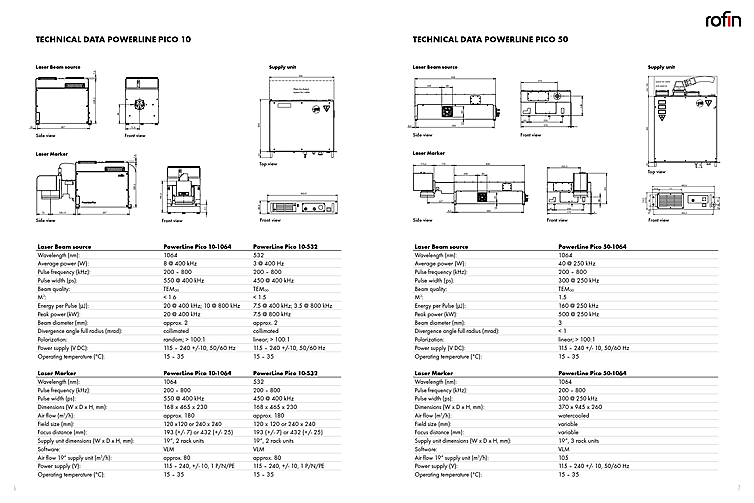

Typical Specifications:
- Wavelength (nm): 1064
- Average power (W): 8 @ 400 kHz
- Pulse frequency (kHz): 200 – 800
- Pulse width (ps): 550 @ 400 kHz
- Beam quality: TEM00
- M2: < 1.6
- Energy per Pulse (μJ): 20 @ 400 kHz; 10 @ 800 kHz
- Peak power (kW): 20 @ 400 kHz
- Beam diameter (mm): approx. 2

Description:

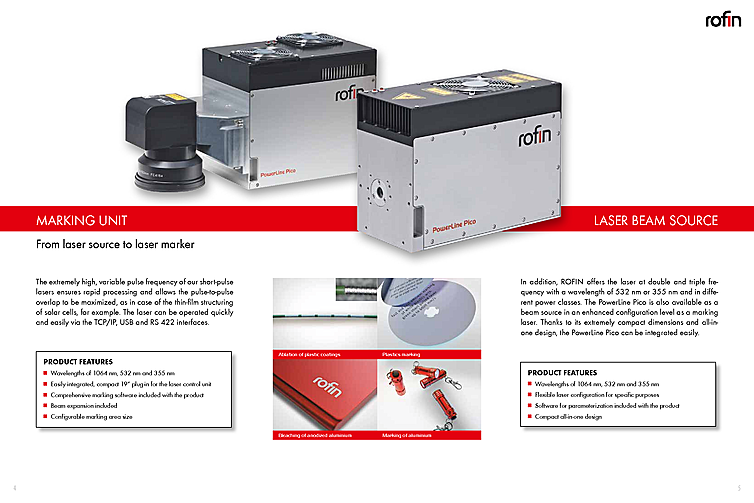

Fiber laser from Rofin was designed for applications in marking, material removal, reducing surface roughness and precision of selective layer removal. Picosecond fiber laser is easily integrated because of a compact 19“ plug-in for the laser control unit and can be integrated with a beam expansion. The fiber laser can be controlled via USB, TC/IP or RS-422 and includes a comprehensive marking software. The laser beam quality is M2<1.6 at TEM00. The pulse repetition interval is 200kHz to 800kHz with a pulse duration of 550ps at 400kHz. Average output power is 8 watts at 400kHz. Fiber laser wavelength is 1064nm with a pulse energy of 20µJ.
