1064nm, 10µJ Picosecond Laser

Fianium HE-1060-10uJ-SP
1064nm Picosecond Laser
10µJ Pulse

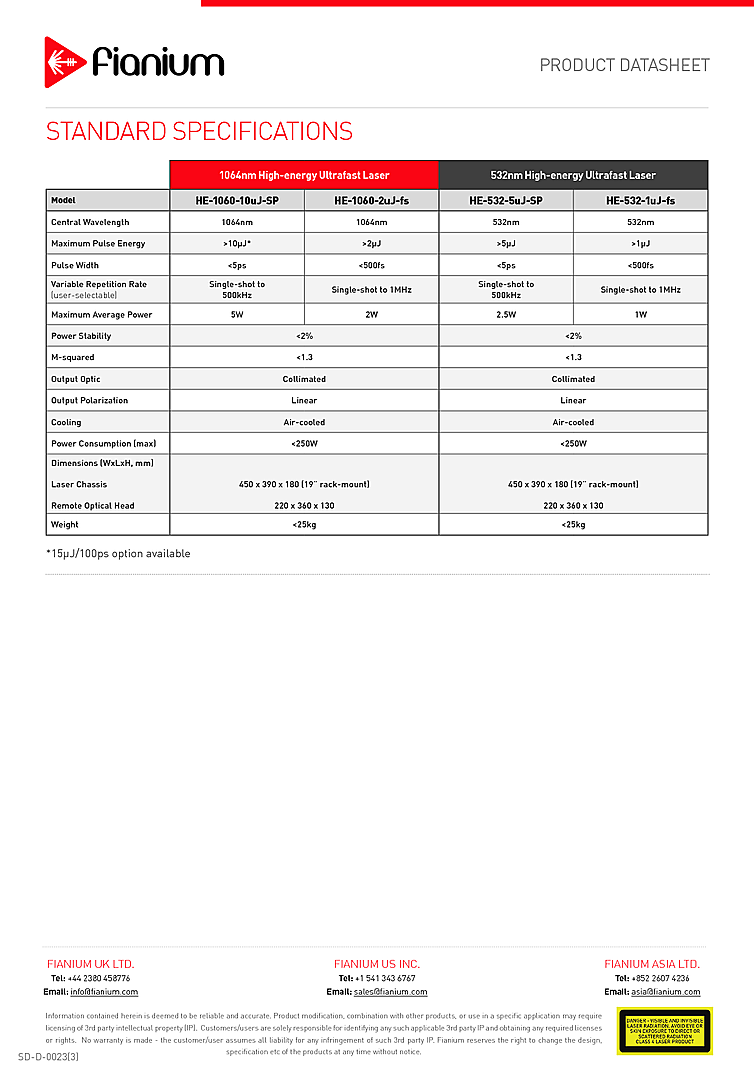

Typical Specifications:
- Central wavelength: 1064 nm
- Maximum pulse energy: > 10µJ
- Pulse width: <5 ps
- Variable repetition rate: Single-shot to 500kHz
- Maximum average power: 5W
- Power stability: <2 %
- M-squared: < 1.3
- Optic output: Collimated
- Output polarization: Linear

Description:
Exceptional single-mode beam quality, Megawatt peak powers and class-leading stability enable the most demanding processes to be explored with these systems. The picosecond laser adds fully integrated second harmonic generation to efficiently produce green output with Microjoule pulse energies. The integrated output modulator allows single-shot, burst-mode or continuous operation as well as pulse-to-pulse control of intensity. The systems are based on an inherently robust self-starting ultrafast fiber laser oscillator and high energy fiber amplifier. They are air-cooled and require no user alignment or maintenance. The Fianium fiber laser has an energy output up to 10µJ at a wavelength of 1064nm.
